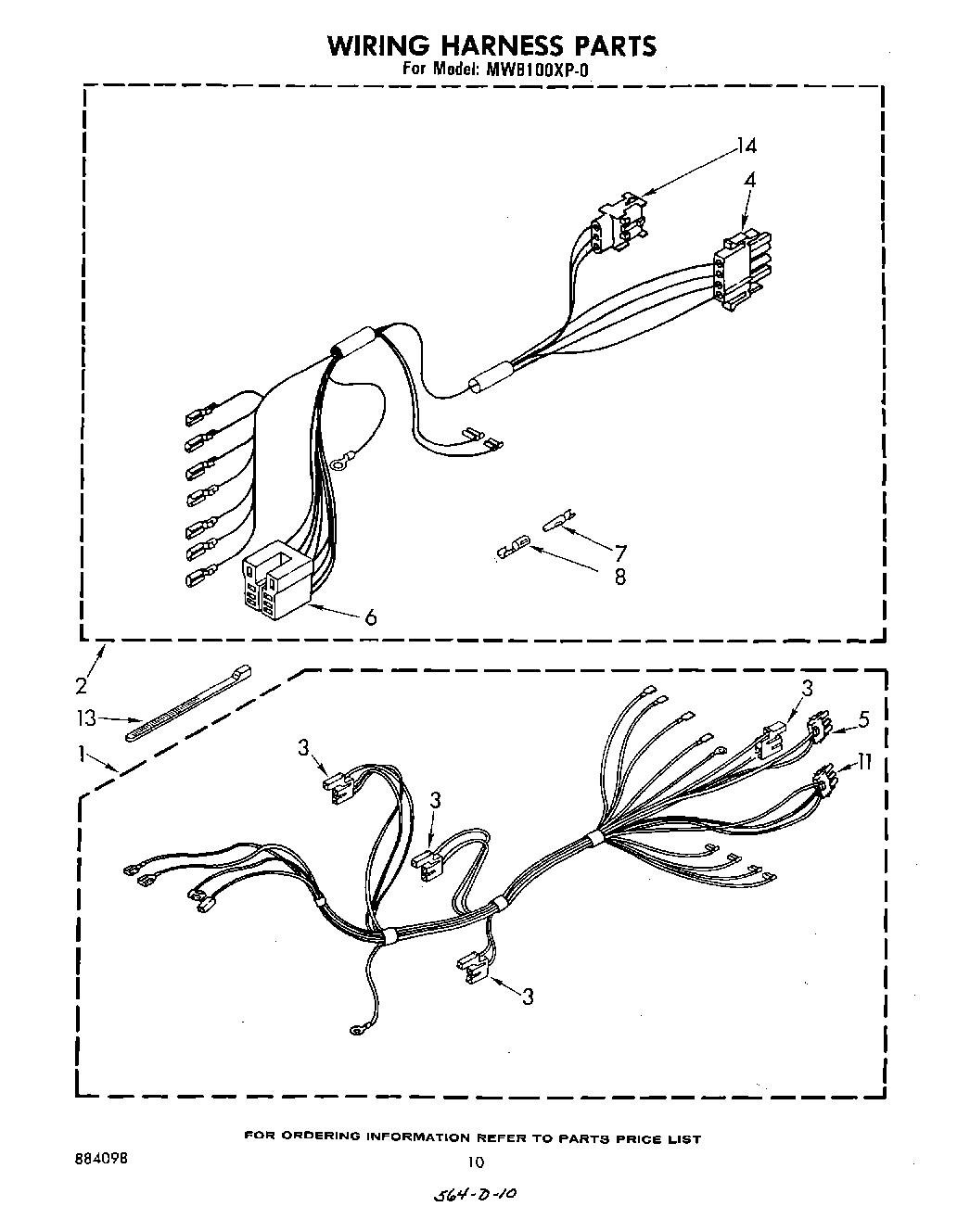

MW8100XP0 06 – WIRING HARNESS , LIT/OPTIONAL

MW8100XP0 06 – WIRING HARNESS , LIT/OPTIONAL

Written by

in

MW8100XP0 06 – WIRING HARNESS , LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Tech Sheet
Guide, Use & Care
Cookbook
1Harness, Wiring Main
2Harness, Wiring Control
3Housing, Plug
4plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5cap, terminal (uses 310222 or 310223 pin terminal)
6Connector, Relay (Use Term. 308569)
7Harness, Wiring (Connector (11))
8Harness, Wiring (Connector (6))
11Block, Disconnect (Motor) (Uses Terminal No.310222)
13WPW10339879 Whirlpool Wire Tie
14Cord Brown
14WPL 832769
14RCK805 25-3/4“ Built-In Kit
14Storage Cabinet
14RCK811 30“ Wall Mount Grille Kit
14RCK807 27“ Built-In Kit
14242831 Whirlpool Oven Wire
14RCK803 30“ Built-In Kit
14WPL 832763
14Wire, 25` Roll (Red 14 Ga.)
14Wire, 25“ Roll (White 14 GA.)
14WP482338 Whirlpool Refrigerator Adhesive
14WP261869 Whirlpool Microwave Paint
14Wire (14 Ga. 150 c Blue)
14Wire (14 Ga. 150 c Brown)
14Wire (14 Ga. 150 c Green)
14Wire (14 Ga. 150 c Orange)
14Wire (14 Ga. 150 c Yellow)
14Wire (12 Ga. 150 c Black)
1418 Ga. 80~c Rating (Red)
14Wire (14 Ga. 200 c Brown)
141
14WPL 591014
14261900 Whirlpool Microwave Spray
14Connector Housing
14Paint, Cord Brown Spray (13 Oz.)
14Wire, 25` Roll (Black 14 Ga.)
