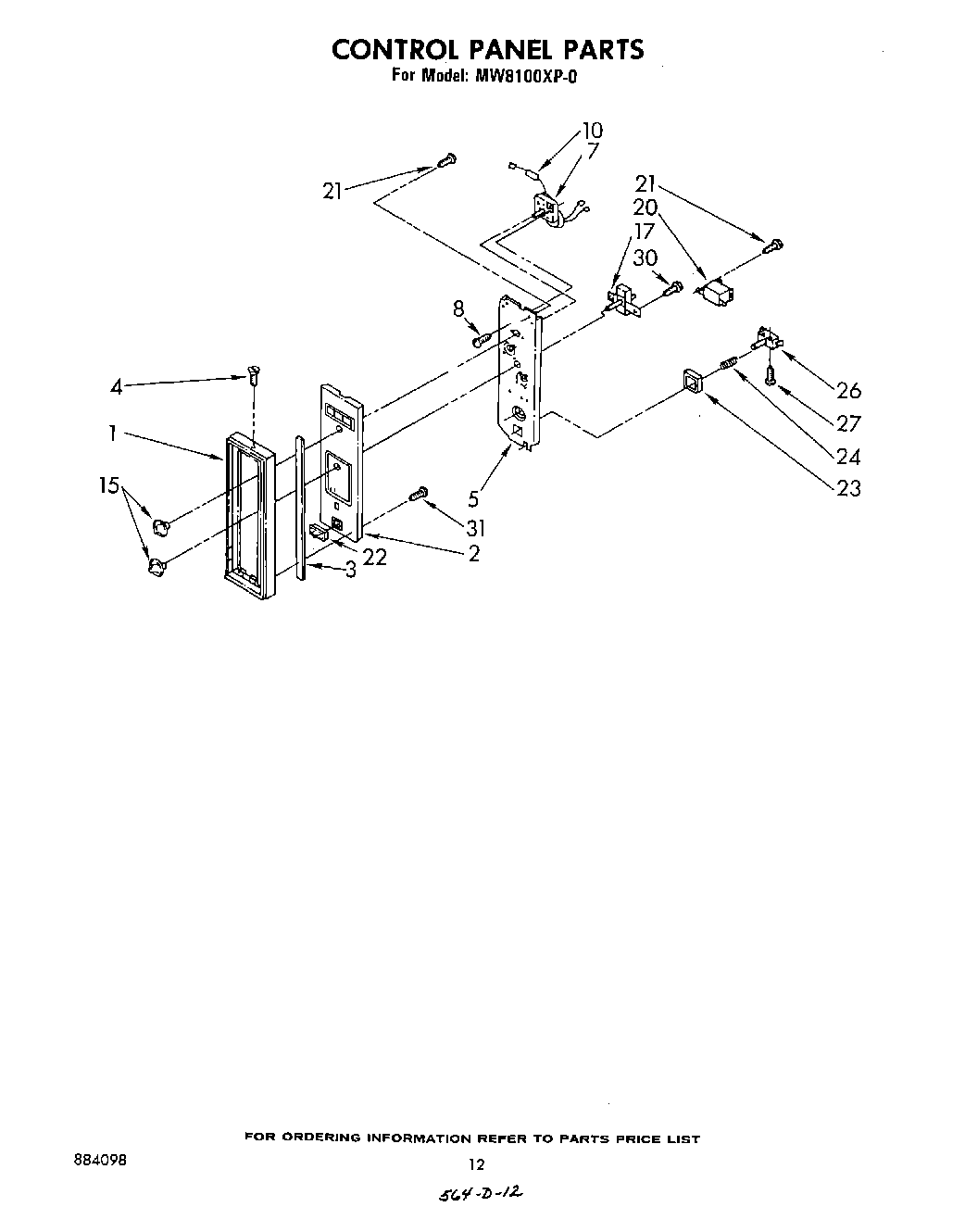

MW8100XP0 07 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Panel, Control
3	Seal, Foam (2)
4	Screw, 8-18BT x .88 (2)
5	Lower Oven Door
7	Timer, Linear
8	Screw,
10	Resistor & Terminal (Timer To Rotary Switch)
15	Knob, Timer (3)
17	Switch (Cook, Defrost)
20	Relay, Power
21	Screw 6-32 (6)
22	Burner Box Bottom
23	Button, Start
24	Spring (2)
26	Switch, Push-To-Start
27	Screw
30	screw
31	Screw
