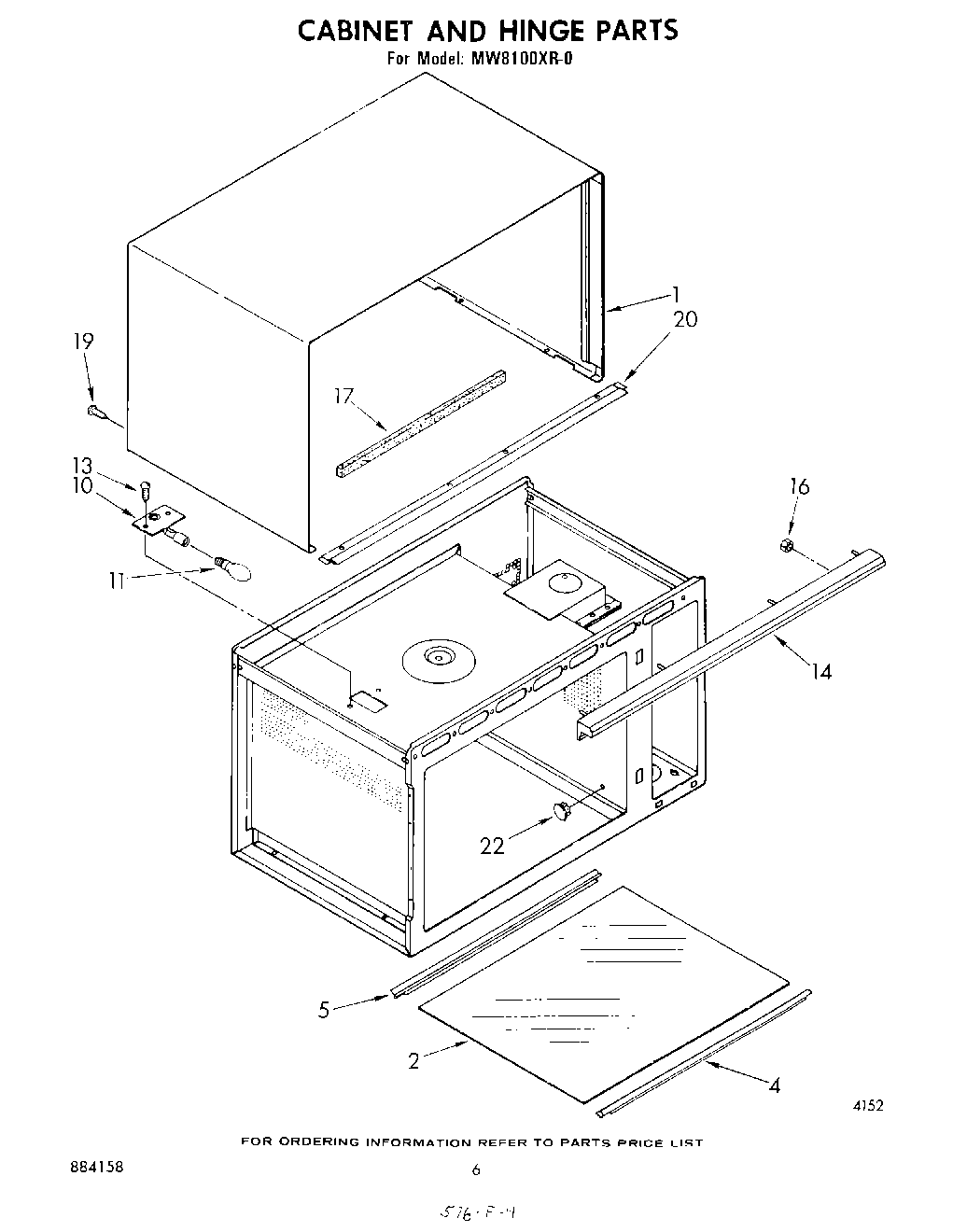

MW8100XR0 04 – CABINET AND HINGE

Products

Position	Product
1	Wrapper, Cabinet
2	Shelf, Microwave (Install with Silastic 482338)
4	Trim, Shelf (Front)
5	Trim, Shelf (Rear)
10	Platinum
11	WP3395618 Whirlpool Light Bulb
13	screw
14	Grille, Air
16	Nut, Timer (4)
17	Seal, Foam
19	WP488729 Whirlpool Refrigerator Door Screw
20	Trim, Lower
22	Plug, Hole
