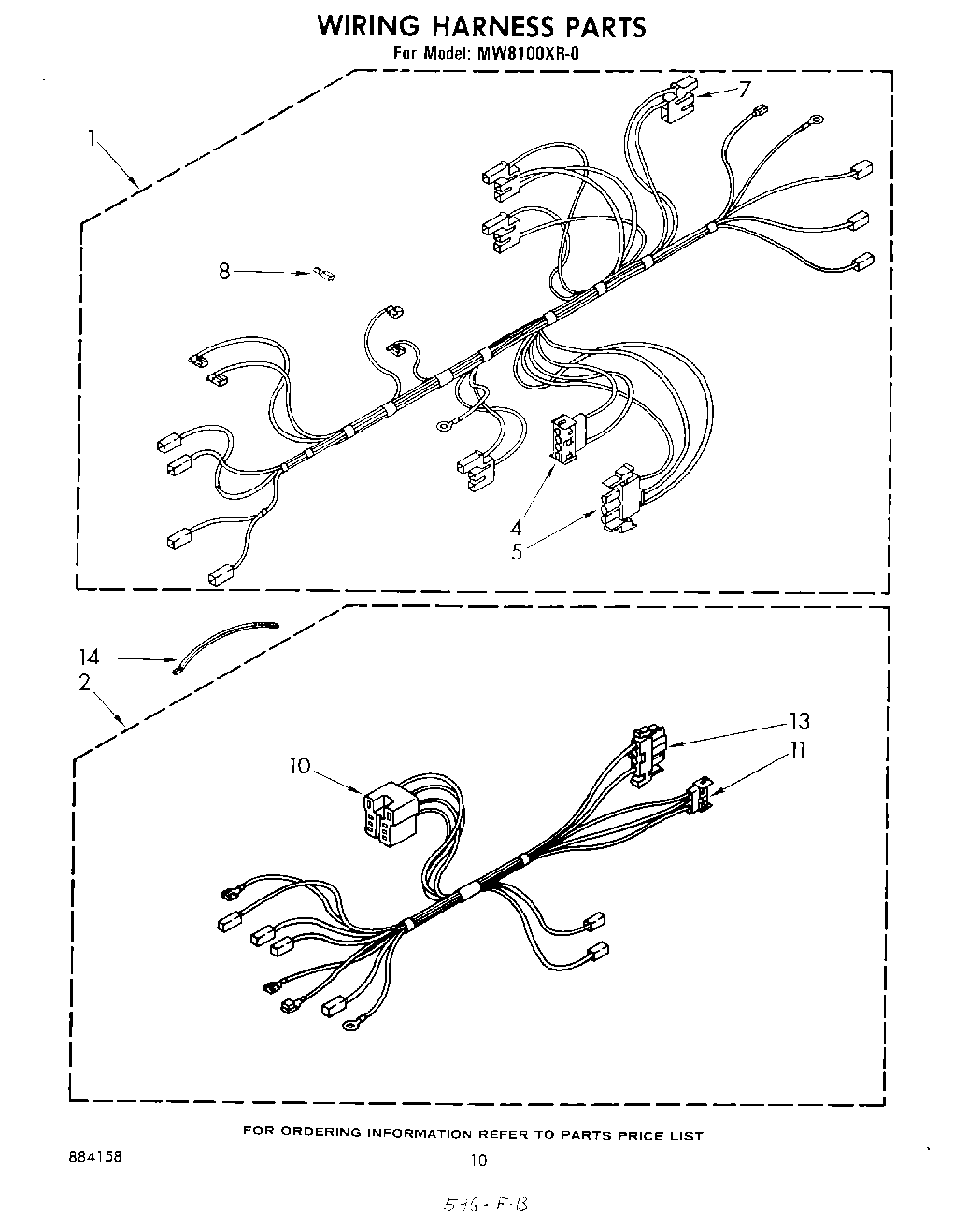

MW8100XR0 07 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care
	Tech Sheet
	Cookbook
1	Harness, Wiring (Main)
2	Harness, Wiring (Control)
4	cap, terminal (uses 310222 or 310223 pin terminal)
5	Block, Disconnect (Motor) (Uses Terminal No.310222)
7	Housing, Plug
8	WP248562 Whirlpool Terminal
10	Connector, Relay (Use Term. 308569)
11	Connector Housing
13	plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
14	24“ Built-In Kit
14	27“built-in Kit
14	Cord Brown
14	Wall Mount Kit
14	Paint, Cord Brown Spray (13 Oz.)
14	Built-in Kits (30“)
14	261900 Whirlpool Microwave Spray
14	WPL 832985
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25“ Roll (White 14 GA.)
14	WPW10339879 Whirlpool Wire Tie
14	WP482338 Whirlpool Refrigerator Adhesive
14	242831 Whirlpool Oven Wire
14	WP261869 Whirlpool Microwave Paint
14	Wire (14 Ga. 150 c Blue)
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Yellow)
14	Wire (12 Ga. 150 c Black)
14	18 Ga. 80~c Rating (Red)
14	Wire (14 Ga. 200 c Brown)
14	1
14	WPL 591014
14	Wire, 25` Roll (Black 14 Ga.)
