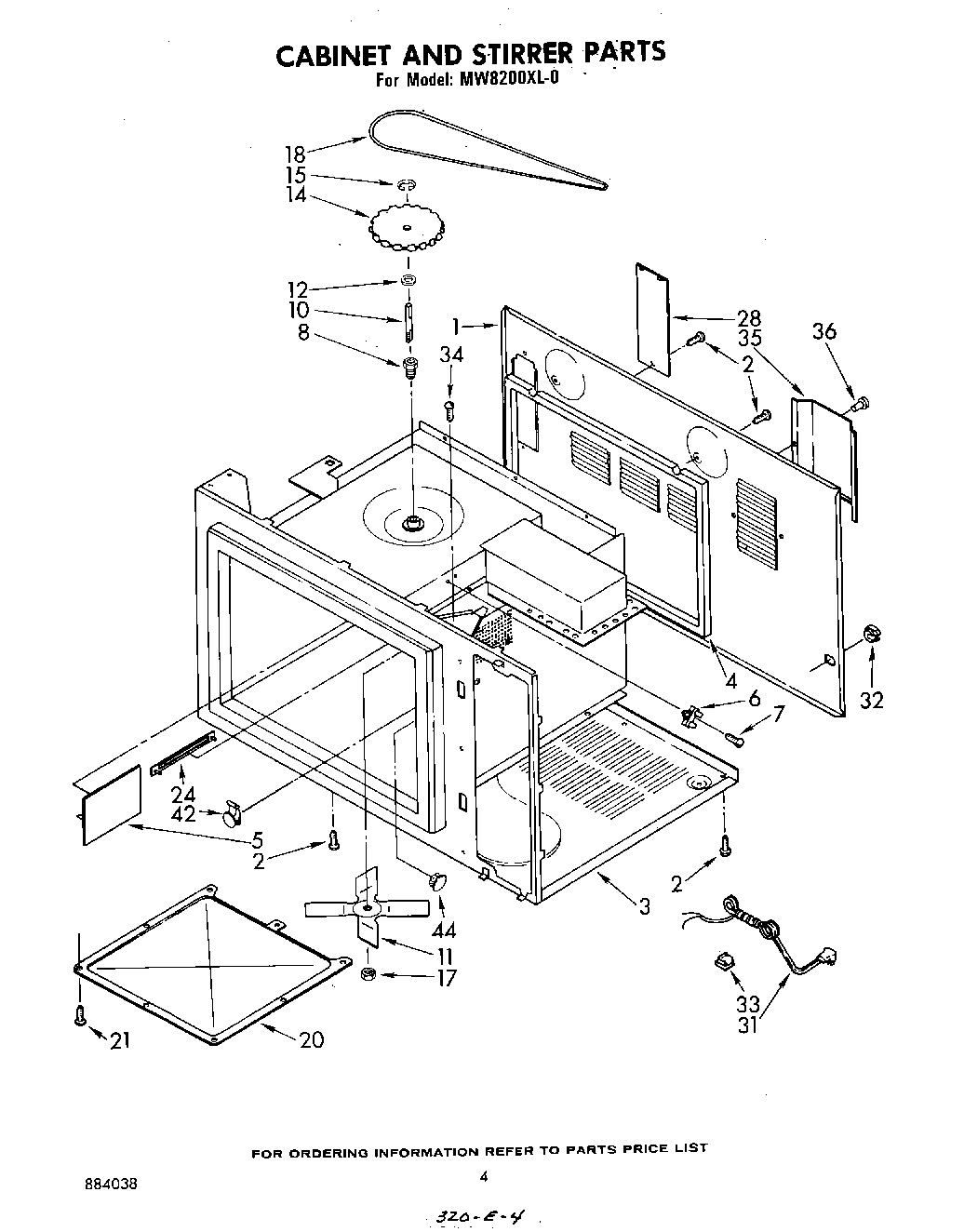

MW8200XL0 03 – CABINET AND STIRRER

Products

Position	Product
1	Back, Chassis (Not Serviceable)
2	WP308685 Whirlpool Microwave Screw
3	Base, Cabinet (Not Serviceable)
4	Seal, Cavity Back
5	Shield, Exhaust Probe
6	Fuse, Thermal
7	Screw
8	Bushing, Stirrer
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	“E“ Ring
17	WP487939 Whirlpool Refrigerator Nut
18	Belt, Drive
20	Cover, Stirrer
21	Fastener (2)
24	Cover, Rivet
28	Cover, Lamp
31	Power Cord (Alternate)
31	Power Cord (Alternate)
32	Strain Relief, Bushing
33	8528351 Whirlpool Clip
34	Screw, 10-32 x 1/2 Hex Washer Head W/Ground Ring
35	Shield, Louver (Includes Illus. 36)
36	Rivet
42	Hole Plug (4)
44	Plug, Button
