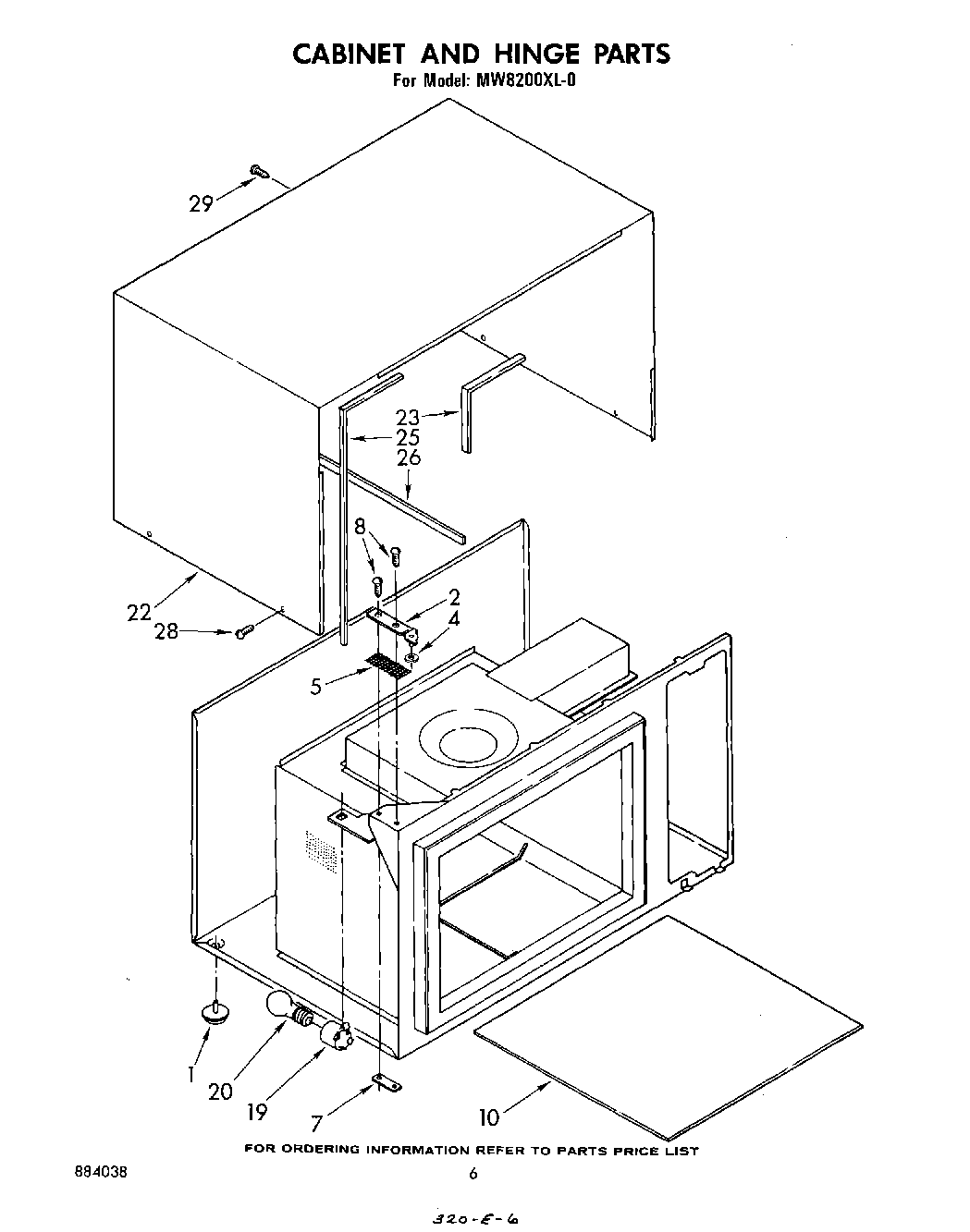

MW8200XL0 04 – CABINET AND HINGE

Products

Position	Product
1	Foot, Base (4)
2	hinge door (bottom)
2	hinge door (top)
4	WPL 312147
5	Hinge, Shim Locking (2)
7	Plate, Nut (2)
8	Screw, 12-24 x 3/4 (4)
10	Base, Ceramic (Install W/Silastic No. 482338)
10	Shelf, Microwave (Alt.)
10	Trim, Bottom
19	Socket, Snap-In
20	RANGE ONLY 40W 120V APPL BULB
22	Wrapper, Cabinet (Includes Illus. 23, 25 & 26)
23	Pilot Cup (3 Req)
25	WPL 308294
26	WPL 308295
28	Screw, 10A x 1/2 (2) (Black)
29	Main Chassis (Screw, 10-32 x 1/2)
