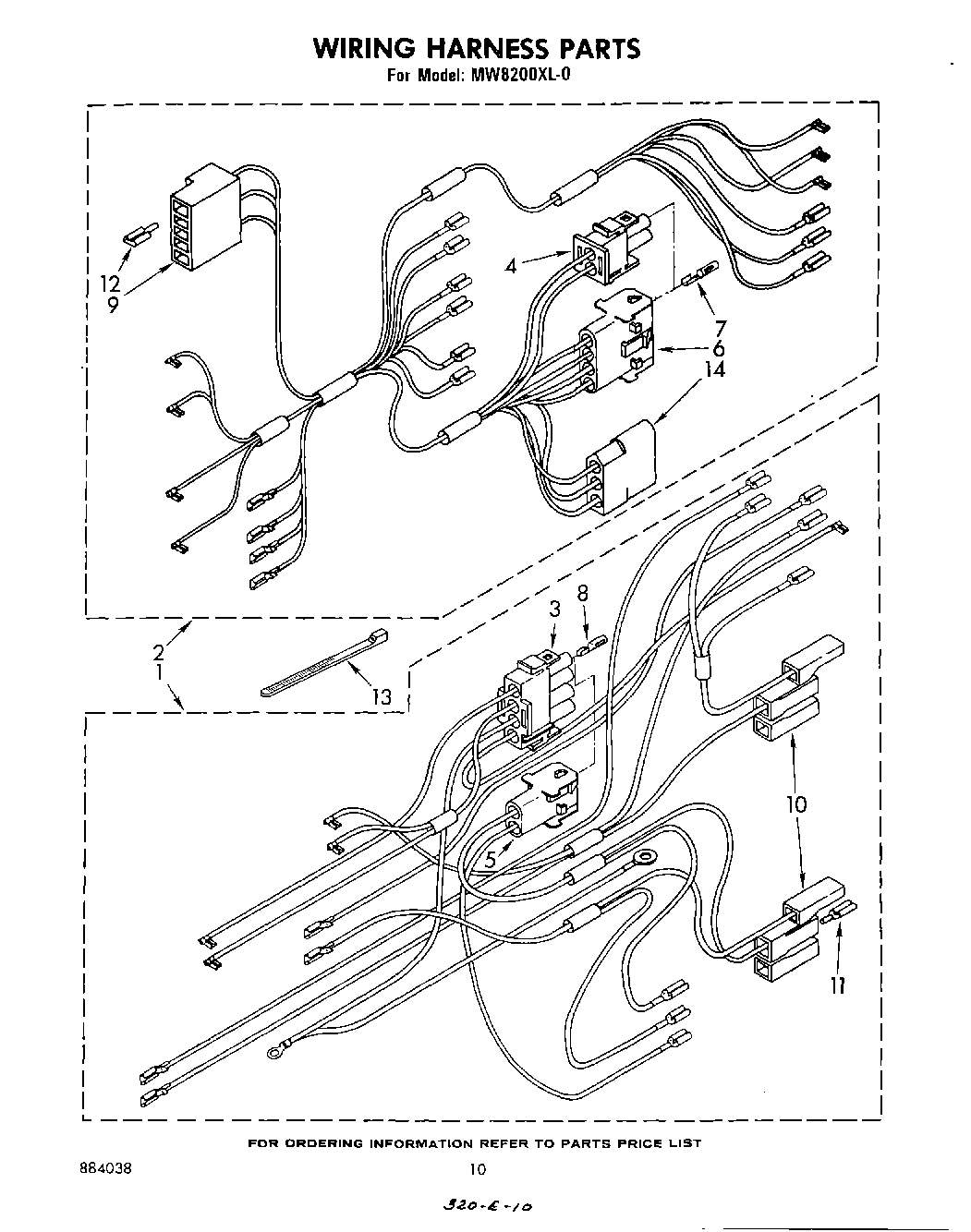

MW8200XL0 06 – WIRING HARNESS , LIT/OPTIONAL

Products

Position	Product
1	Harness, Wiring Main
2	Harness, Wiring Control
3	Disconnect Block (4 Terminal)
4	plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5	cap, terminal (uses 310222 or 310223 pin terminal)
6	Disconnect Block, Female
7	Harness, Wiring (Connector (11))
8	Harness, Wiring (Connector (6))
9	Block, Terminal
10	Housing, Plug
11	WP248562 Whirlpool Terminal
12	Receptacle
13	WPW10339879 Whirlpool Wire Tie
14	WPL 591014
14	WPL 832769
14	Cookbook
14	Instructions, Installation
14	RCK803 30“ Built-In Kit
14	RCK805 25-3/4“ Built-In Kit
14	Storage Cabinet
14	RCK811 30“ Wall Mount Grille Kit
14	RCK807 27“ Built-In Kit
14	Guide, Use & Care
14	Li
14	Tech Sheet (Service Information)
14	242831 Whirlpool Oven Wire
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25“ Roll (White 14 GA.)
14	WP482338 Whirlpool Refrigerator Adhesive
14	WP261869 Whirlpool Microwave Paint
14	Wire (14 Ga. 150 c Blue)
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Yellow)
14	Wire (12 Ga. 150 c Black)
14	18 Ga. 80~c Rating (Red)
14	Wire (14 Ga. 200 c Brown)
14	1
14	261900 Whirlpool Microwave Spray
14	Connector (Door Switch)
14	WPL 832763
14	Wire, 25` Roll (Black 14 Ga.)
