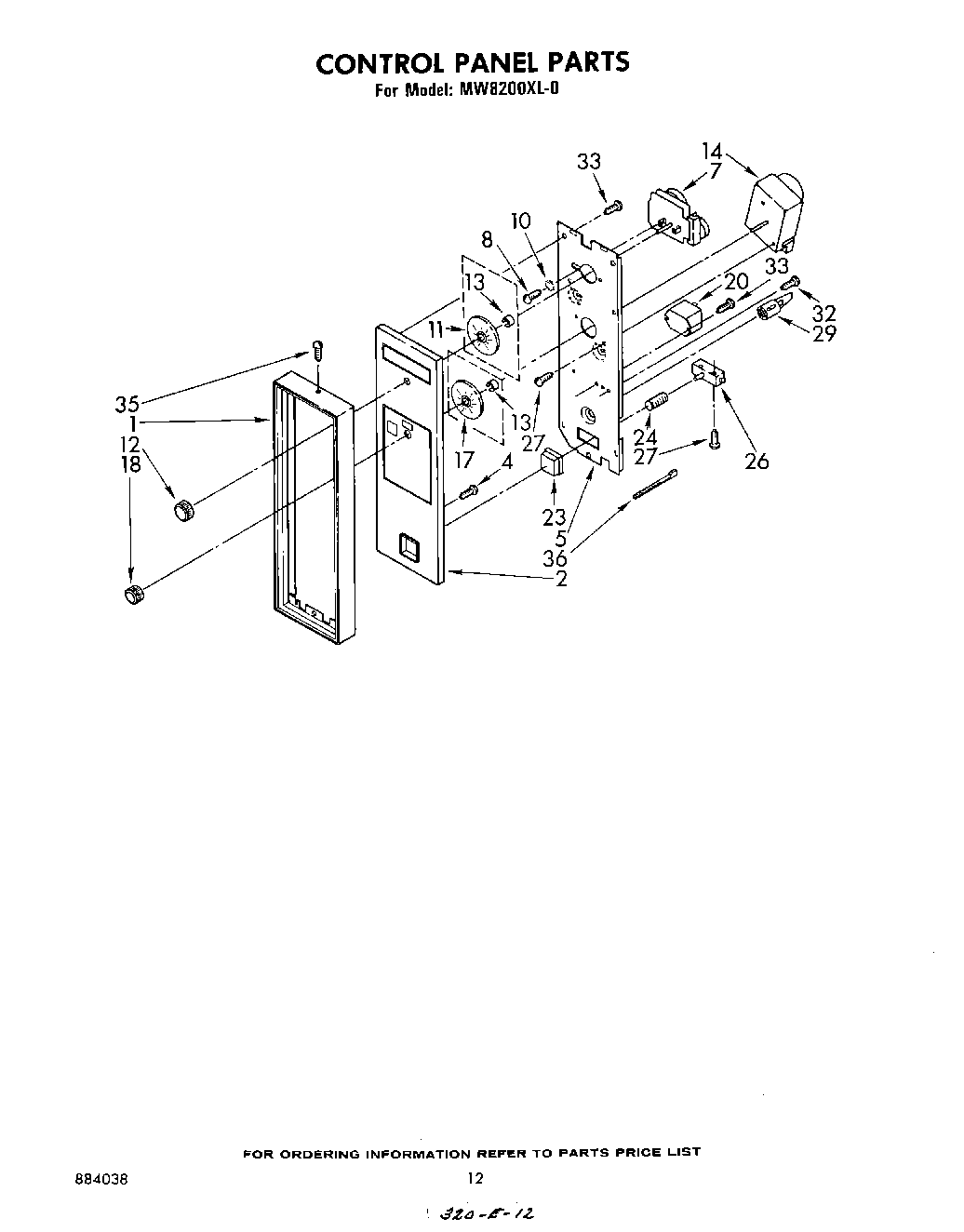

MW8200XL0 07 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Control Panel
4	WP681249 Whirlpool Screw Assembly
5	Bracket, Support
7	Timer, Meal Timer
8	screw, 6-32 x 1/4 (2)
10	Lockwasher
11	Dial, Timer (Alternate)
11	Dial, Timer (Alternate)
12	Knob (Meal Timer)
13	Ring, Compression
14	Timer, Percentage
17	Dial, Timer (Alternate)
17	Dial, Timer (Alternate)
18	Knob (2)
20	Relay, Latching
23	Button, Push To Start
24	Spring, Compression
26	Switch, Push-To-Start
27	Screw
29	Light, Indicator
32	Screw, 10-32 x 1/2
33	Screw
35	WP488627 Whirlpool Refrigerator Screw
36	WPW10339879 Whirlpool Wire Tie
