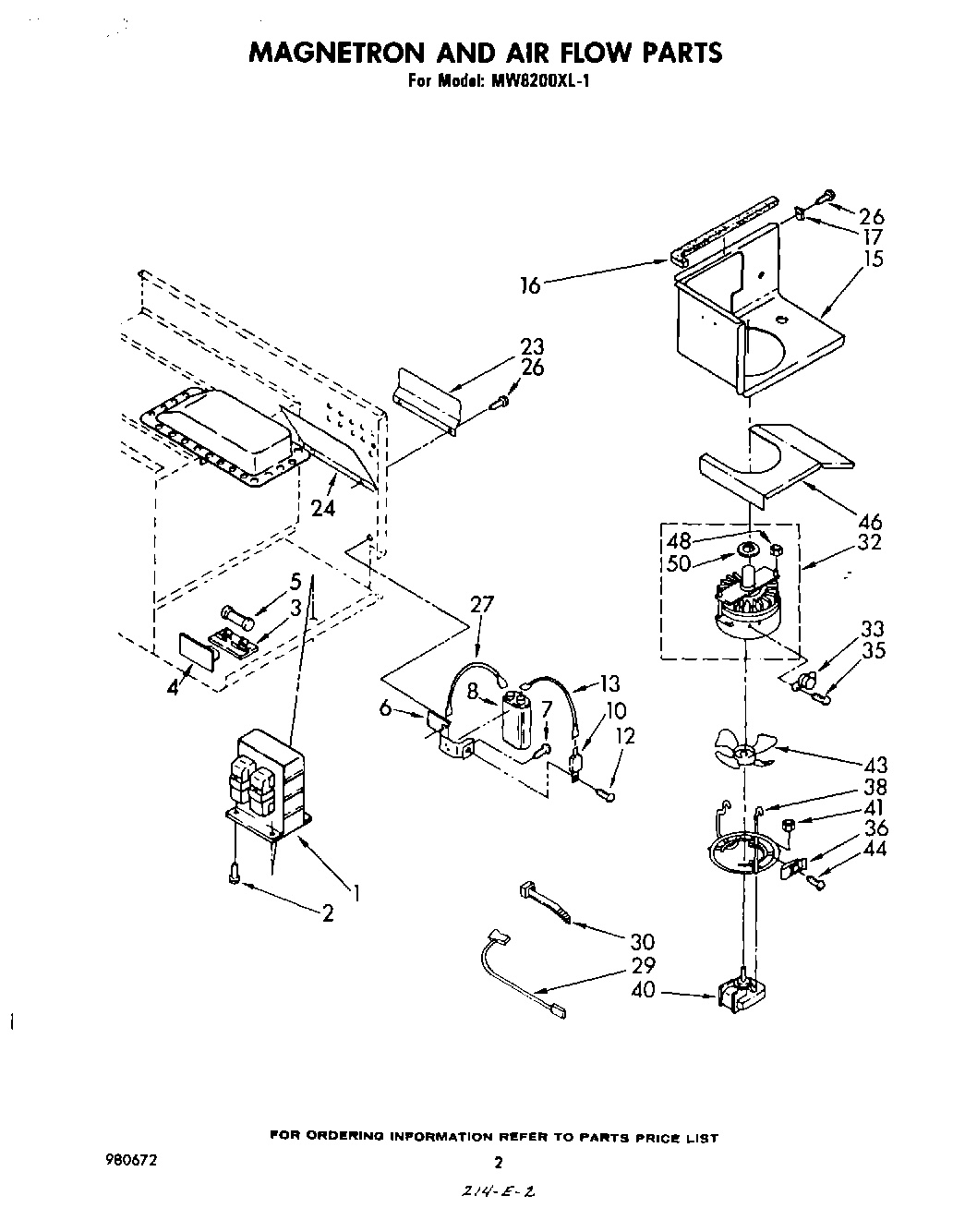

MW8200XL1 02 – MAGNETRON AND AIRFLOW

Products

Position	Product
1	Transformer
2	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
3	Block, Fuse
4	Shield, Fuse
5	WPW10017410 Whirlpool Fuse
6	Bracket, Capacitor
7	Main Chassis (Screw, 10-32 x 1/2)
8	Cabinet Side (Right)
8	Cabinet Side (Left)
10	Rectifier, High Voltage
12	WPL 310629
13	WPL 311466
15	Duct, Cooling Air
16	WP854334 Whirlpool Air Conditioner Sealing Strip
17	Clip (2)
23	Deflector, Exhaust
24	Deflector, Air
26	WP965173 Whirlpool Dishwasher Screw
27	WPL 311467
29	Wire, High Voltage (Capacitor)
30	WPW10339879 Whirlpool Wire Tie
32	magnetron (alternate)
32	Magnetron (Alternate)
33	Thermostat
35	Screw
36	fastener, speed nut
38	mount, fan motor
40	Motor, Fan (Alternate)
40	Motor Fan (Alternate)
41	Nut
43	Blade, Fan
44	SCREW
46	Spacer (2 Req)
48	Flange Nut (4)
50	gasket, magnetron
