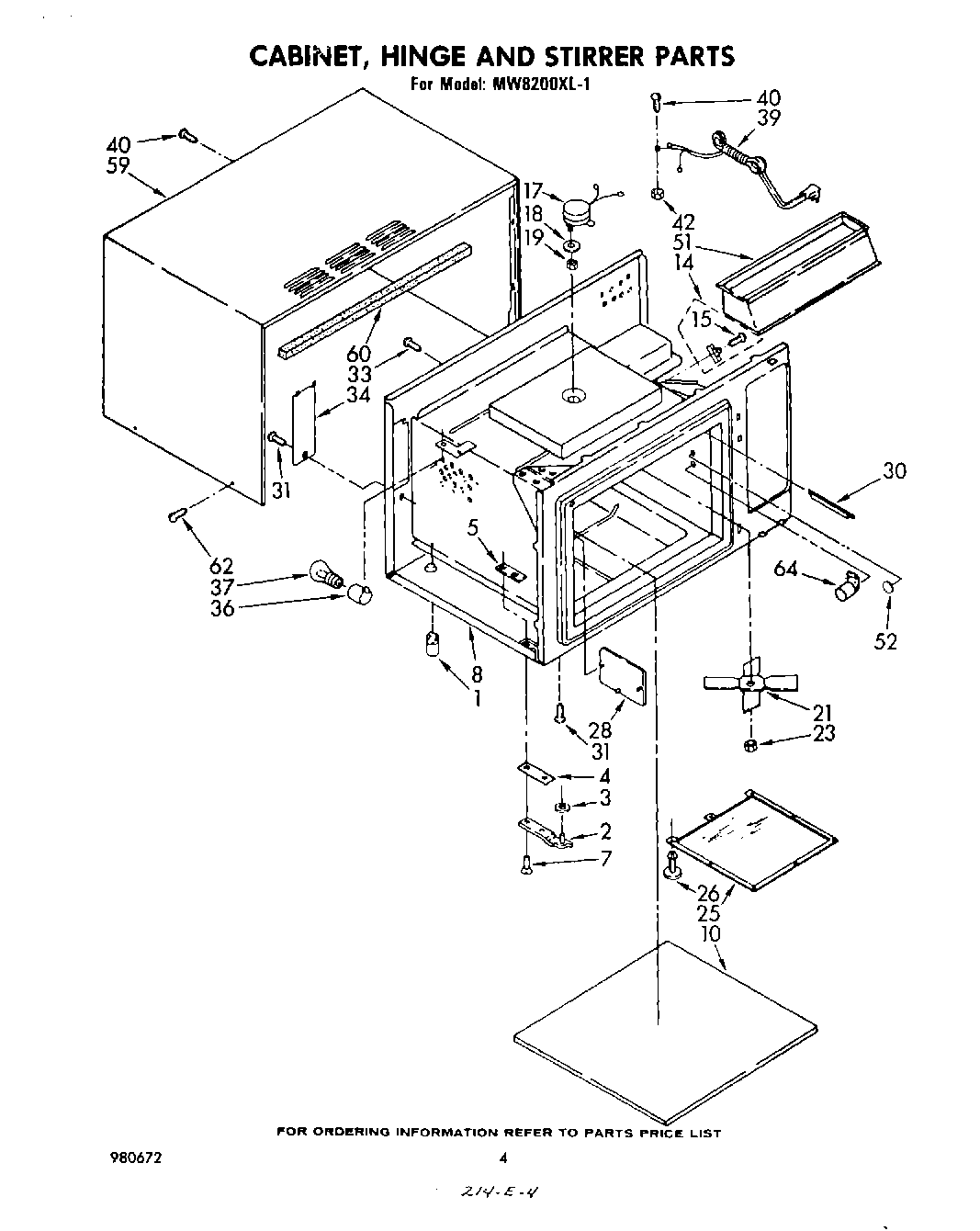

MW8200XL1 03 – CABINET, HINGE AND STIRRER

Products

Position	Product
1	Foot, Mounting
2	hinge door (top)
2	hinge door (bottom)
3	WPL 312147
4	Hinge, Shim Locking (2)
5	plate, hing (2) (top & bottom)
7	screw, oval head (4)
8	Cavity & Base Assembly (Not Serviceable)
10	Shelf, Microwave (Alt.)
10	Base, Ceramic (Install W/Silastic No. 482338)
14	Fuse, Thermal
15	Screw
17	Motor, Stirrer (Alternate)
17	motor, stirrer (alternate)
18	Washer, Internal Lock
19	Nut
21	Stirrer Blade
23	Nut, Hex (1/4-20)
25	Cover, Stirrer
26	Fastener (2)
28	Shield, Exhaust Probe
30	Cover, Rivet
31	panel, top (screw, 10a x 3/8 (3))
33	WP308685 Whirlpool Microwave Screw
34	Cover, Lamp
36	Socket, Snap-In
37	RANGE ONLY 40W 120V APPL BULB
39	cord, power (alternate)
39	Cord, Power (Alternate)
40	Main Chassis (Screw, 10-32 x 1/2)
42	Hex Nut, 10-32 (2)
51	Baffle, Air Exhaust
52	Plug, Button
59	Wrapper, Cabinet (Includes Illus. 60)
60	WPL 308295
60	WPL 308294
60	Pilot Cup (3 Req)
62	Screw, 10A x 1/2 (2) (Black)
64	Hole Plug (4)
