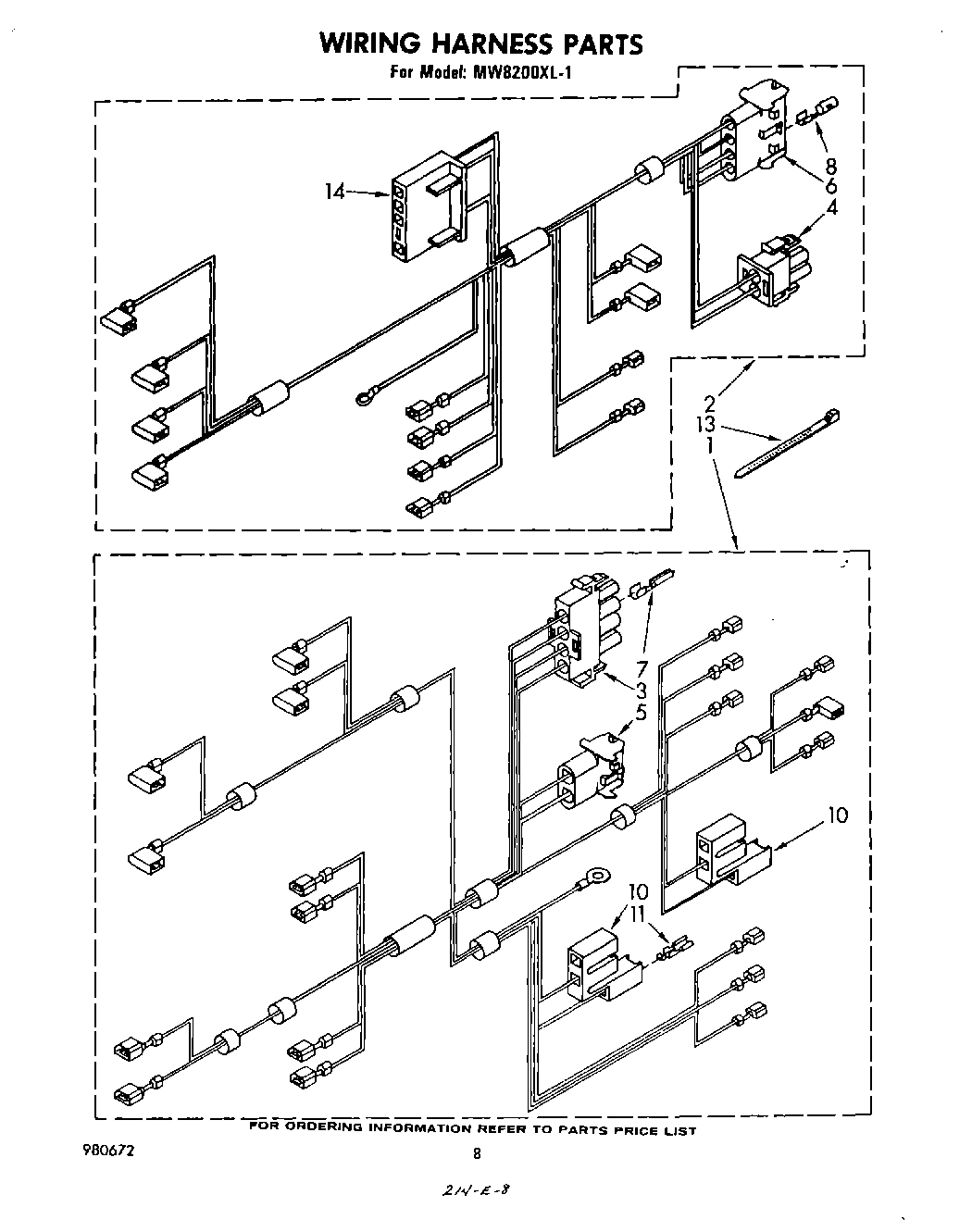

MW8200XL1 05 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

PositionProduct
1Harness, Wiring Main
2Harness, Wiring Control
3Disconnect Block (4 Terminal)
4plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5cap, terminal (uses 310222 or 310223 pin terminal)
6Disconnect Block, Female
7Harness, Wiring (Connector (11))
8Harness, Wiring (Connector (6))
10Housing, Plug
11WP248562 Whirlpool Terminal
13WPW10339879 Whirlpool Wire Tie
14RCK803 30“ Built-In Kit
14Tech Sheet (Service Information)
14Guide, Use & Care
14WPL 307843
14242831 Whirlpool Oven Wire
14WPL 310847
14WPL 832769
14RCK811 30“ Wall Mount Grille Kit
14Storage Cabinet
14Block, Terminal
14RCK805 25-3/4“ Built-In Kit
14List, Repair Parts
14RCK807 27“ Built-In Kit
141
14Wire, 25` Roll (Red 14 Ga.)
14Wire, 25“ Roll (White 14 GA.)
14WP482338 Whirlpool Refrigerator Adhesive
14WP261869 Whirlpool Microwave Paint
14Wire (14 Ga. 150 c Blue)
14Wire (14 Ga. 150 c Brown)
14Wire (14 Ga. 150 c Green)
14Wire (14 Ga. 150 c Orange)
14Wire (14 Ga. 150 c Yellow)
14Wire (12 Ga. 150 c Black)
1418 Ga. 80~c Rating (Red)
14Wire (14 Ga. 200 c Brown)
14WPL 591014
14261900 Whirlpool Microwave Spray
14WPL 832763
14Wire, 25` Roll (Black 14 Ga.)
