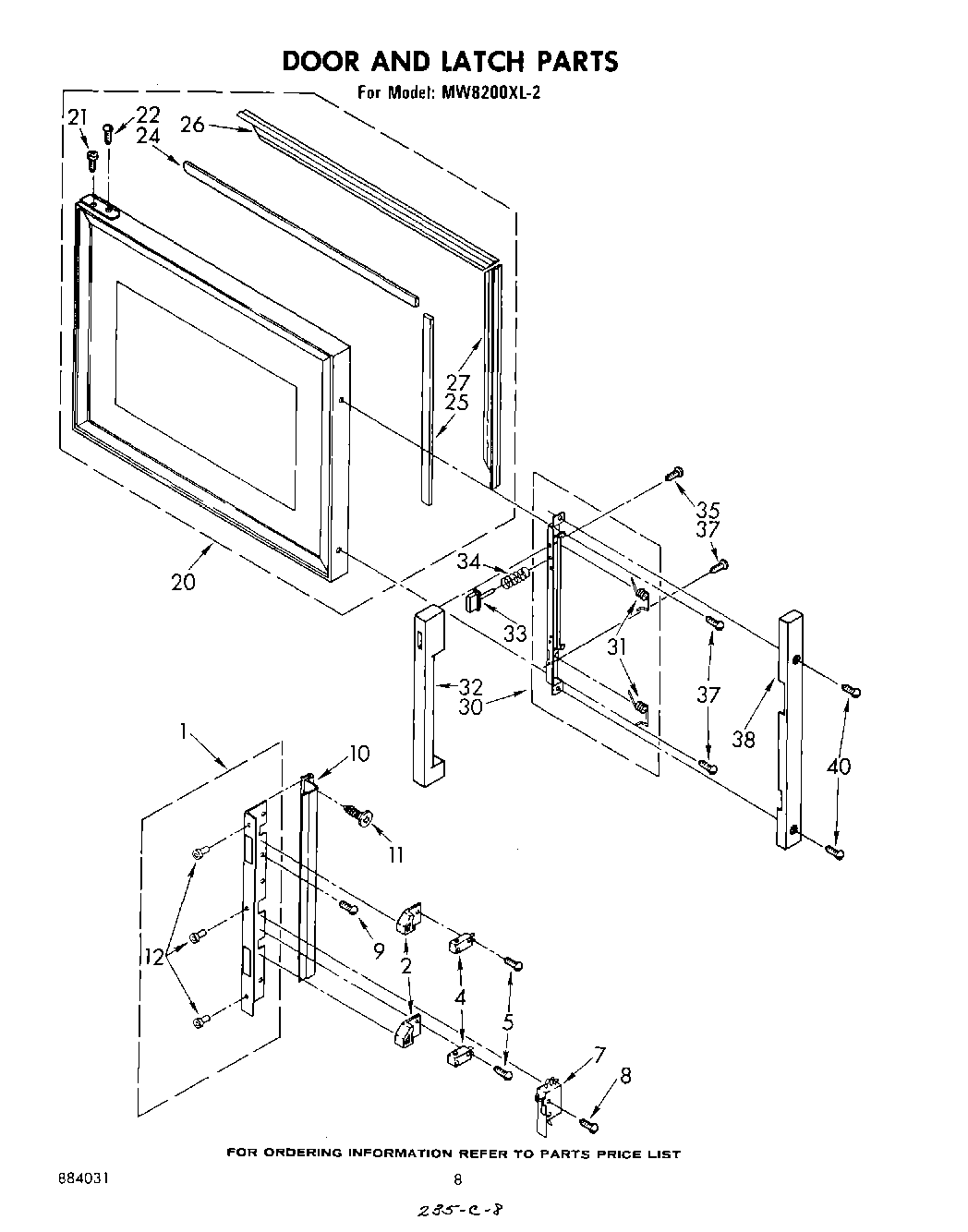

MW8200XL2 05 – DOOR AND LATCHadmin2025-04-26T08:44:07+00:00MW8200XL2 05 – DOOR AND LATCH
Products
| Position | Product |
|---|
| 1 | Bracket, Catch |
| 2 | Catch (2) |
| 4 | 814037 Whirlpool Microwave Switch |
| 5 | Screw, 4-40 x 5/8 Pan Head Thread Form (4) |
| 7 | Switch, Light/ Monitor |
| 8 | Screw |
| 9 | WPL 309080 |
| 10 | Shield |
| 11 | Fastener (2) |
| 12 | Rivet, Pop (3) |
| 20 | Door |
| 21 | WPW10068250 Whirlpool Dishwasher Screw |
| 24 | Seal, Top & Bottom (2) (Alternate) |
| 24 | Seal, Top & Bottom (2) (Alternate) |
| 25 | Seal, Sides (Alternate) |
| 25 | Seal, Sides (Alternate) |
| 26 | Retainer, Top & Bottom Seals (2) |
| 27 | Retain, Side Seal (2) |
| 30 | Latch Assembly |
| 31 | Spring, Torsion (2) |
| 32 | Handle, Door |
| 33 | Button, Door Handle |
| 34 | Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65) |
| 35 | Screw, 8-32 Fillister Head Thread Form |
| 37 | WP489128 Whirlpool Refrigerator Screw |
| 38 | End Cap |
| 40 | Screw, 8-32 x 5/16 (2) |
