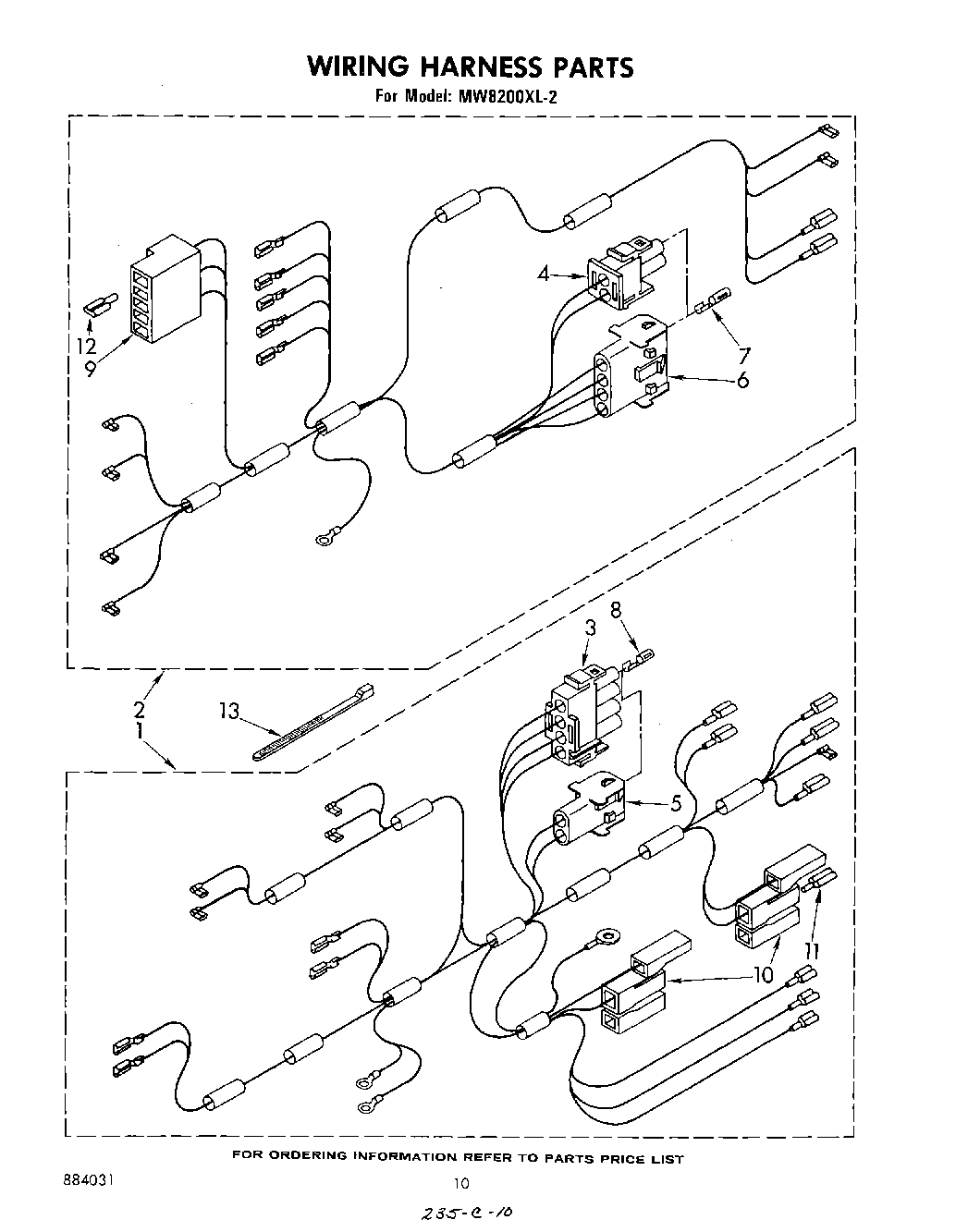

MW8200XL2 06 – WIRING HARNESS , LIT/OPTIONAL

MW8200XL2 06 – WIRING HARNESS , LIT/OPTIONAL

Written by

in

MW8200XL2 06 – WIRING HARNESS , LIT/OPTIONAL

Products

PositionProduct
1Harness, Wiring Main
2Harness, Wiring Control
3Disconnect Block (4 Terminal)
4plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5cap, terminal (uses 310222 or 310223 pin terminal)
6Disconnect Block, Female
7Harness, Wiring (Connector (11))
8Harness, Wiring (Connector (6))
9Block, Terminal
10Housing, Plug
11WP248562 Whirlpool Terminal
12Receptacle
13Guide, Use & Care
13Tech Sheet
13Cord Brown
13WPL 310847
13RCK805 25-3/4“ Built-In Kit
13WPL 832769
13RCK807 27“ Built-In Kit
13Storage Cabinet
13Instructions, Installation
13RCK803 30“ Built-In Kit
13List, Repair Parts
13261900 Whirlpool Microwave Spray
13Wire, 25` Roll (Red 14 Ga.)
13WPW10339879 Whirlpool Wire Tie
13WP482338 Whirlpool Refrigerator Adhesive
13242831 Whirlpool Oven Wire
13WP261869 Whirlpool Microwave Paint
13Wire (14 Ga. 150 c Blue)
13Wire (14 Ga. 150 c Brown)
13Wire (14 Ga. 150 c Green)
13Wire (14 Ga. 150 c Orange)
13Wire (14 Ga. 150 c Yellow)
13Wire (12 Ga. 150 c Black)
1318 Ga. 80~c Rating (Red)
13Wire (14 Ga. 200 c Brown)
131
13WPL 591014
13Paint, Cord Brown Spray (13 Oz.)
13WPL 832763
13Wire, 25` Roll (Black 14 Ga.)
