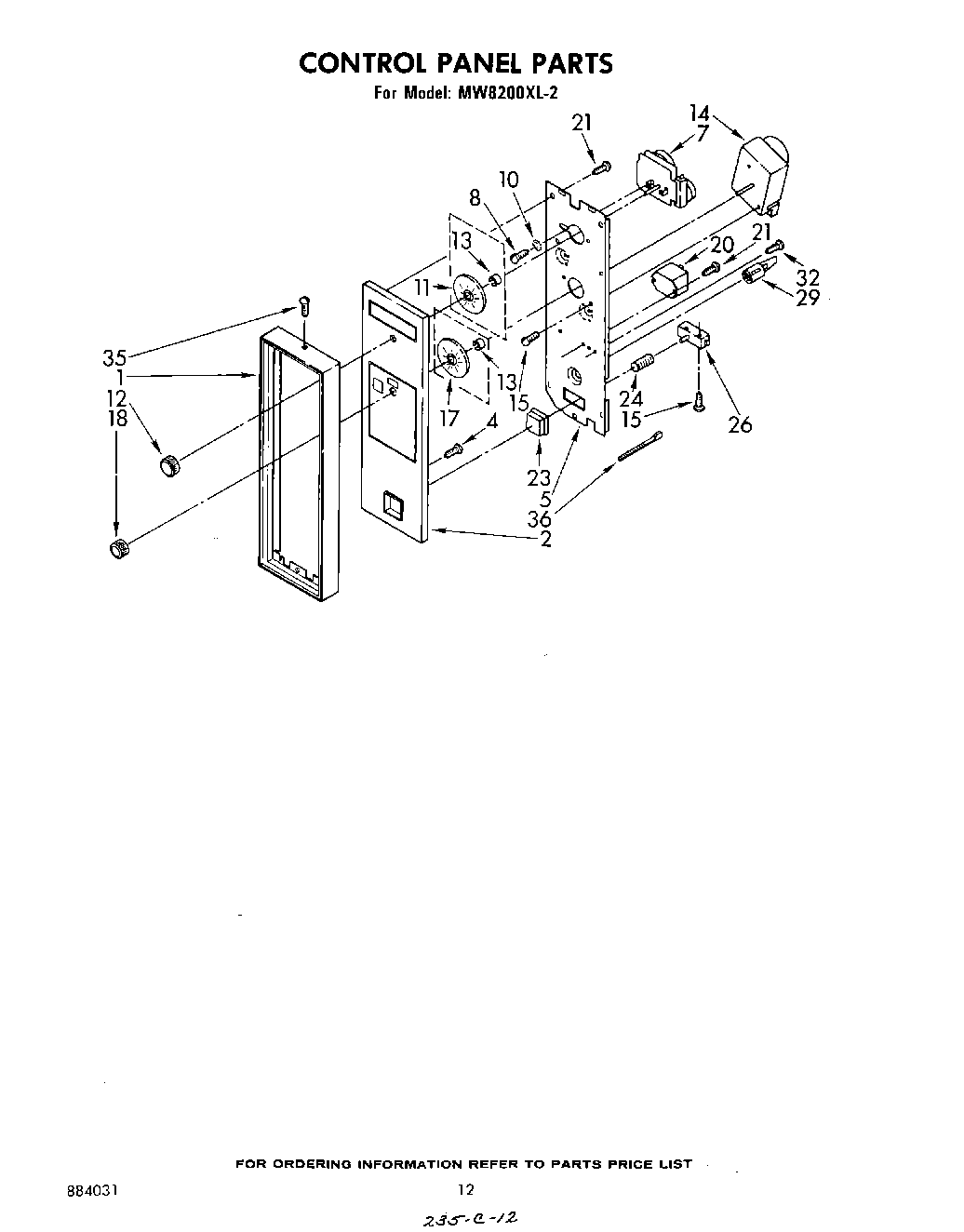

MW8200XL2 07 – CONTROL PANELadmin2025-04-26T08:44:10+00:00MW8200XL2 07 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Frame, Control Panel |
| 2 | Control Panel |
| 4 | WP681249 Whirlpool Screw Assembly |
| 5 | Bracket, Support |
| 7 | Timer, Meal Timer |
| 8 | screw, 6-32 x 1/4 (2) |
| 10 | Lockwasher |
| 11 | Dial, Timer (Alternate) |
| 11 | Dial, Timer (Alternate) |
| 12 | Knob, Timer |
| 13 | Ring, Compression |
| 14 | Timer, Percentage |
| 15 | Screw |
| 17 | Dial, Timer (Alternate) |
| 17 | Dial, Timer (Alternate) |
| 18 | Knob (2) |
| 20 | Relay, Latching |
| 21 | Screw |
| 23 | Button, Push To Start |
| 24 | Spring, Compression |
| 26 | Switch, Push-To-Start |
| 29 | Light, Indicator |
| 32 | Screw, 10-32 x 1/2 |
| 35 | WP488627 Whirlpool Refrigerator Screw |
| 36 | WPW10339879 Whirlpool Wire Tie |
