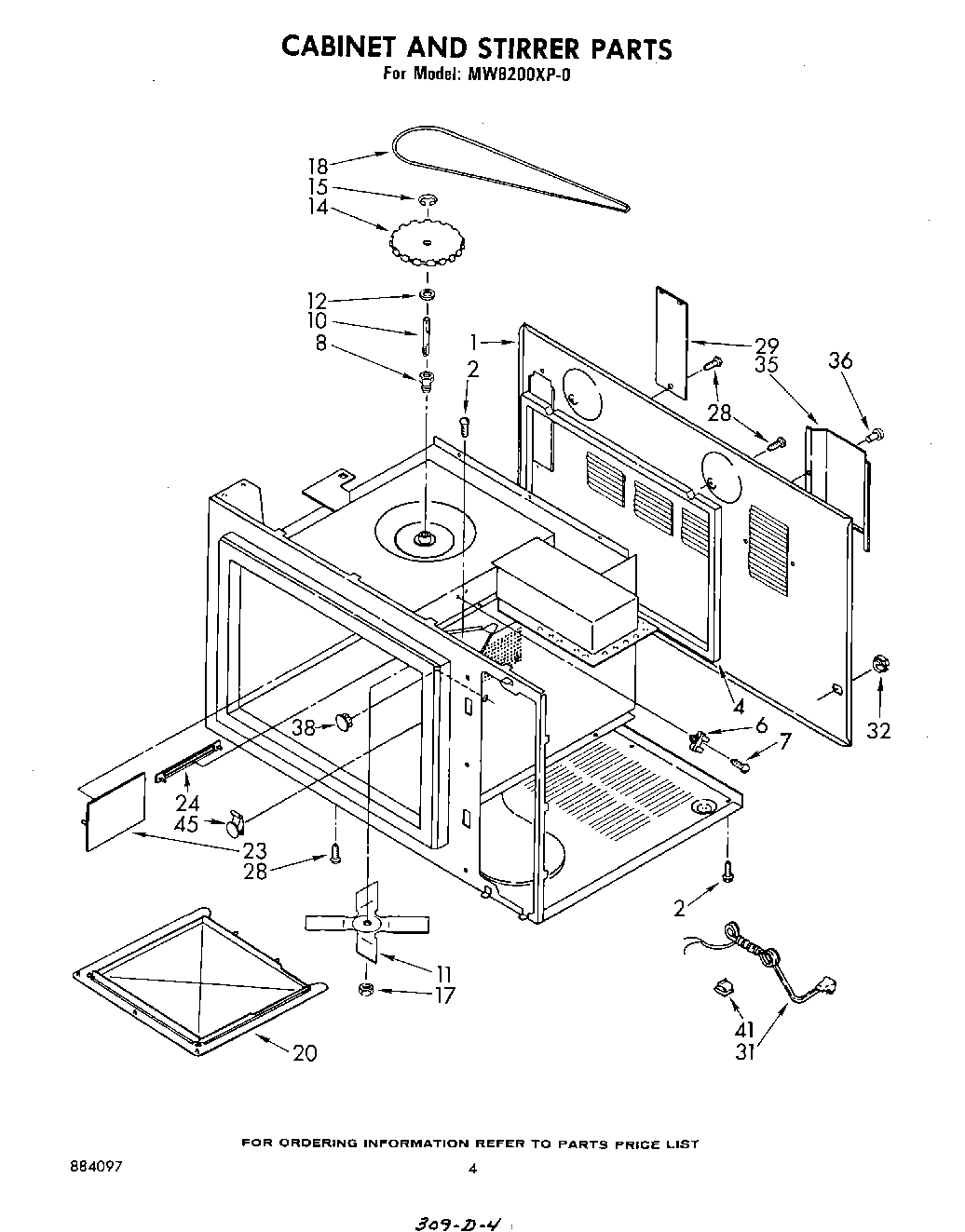

MW8200XP0 03 – CABINET AND STIRRER
Written by
in
MW8200XP0 03 – CABINET AND STIRRER
Products
Position
Product
1
Back, Cabinet
2
Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
4
Seal, Cavity Back
6
Thermal Fuse (Includes Illus.7)
7
screw
8
Bushing, Stirrer
10
Shaft, Stirrer
11
Stirrer Blade
12
Washer, Nylon
14
Pulley, Stirrer Blade
15
“E“ Ring
17
WP487939 Whirlpool Refrigerator Nut
18
Belt, Drive
20
Stirrer Cover
23
Shield, Exhaust Probe
24
Cover, Rivet
28
WP308685 Whirlpool Microwave Screw
29
Cover, Lamp
31
Power Cord 313127 (Alt.) 313128 (Alt.)
32
Strain Relief, Bushing
35
Shield, Louver (Includes Illus. 36)
36
Rivet, Pop (3)
38
Plug, Hole
41
Clip
45
Hole Plug (4)
←
