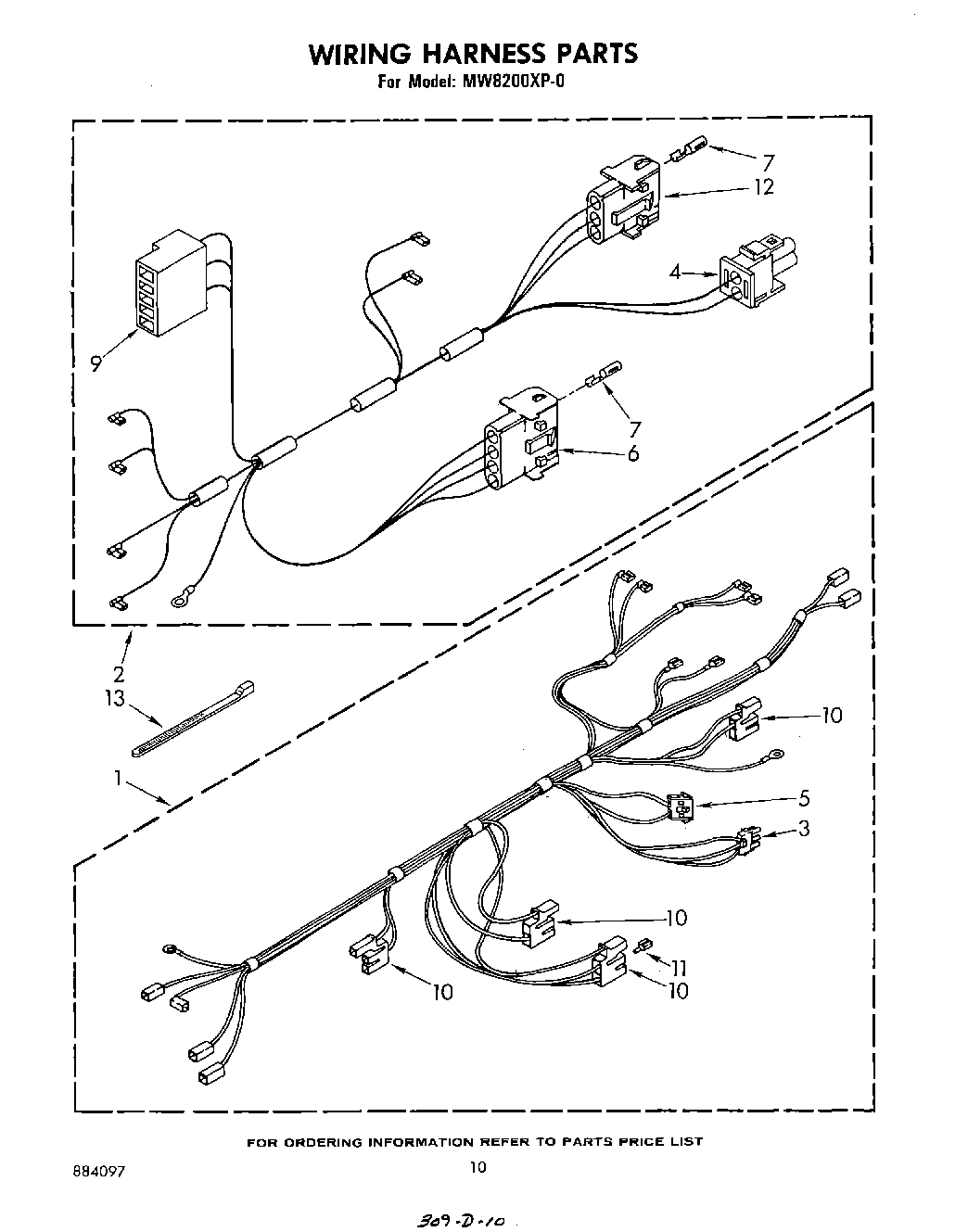

MW8200XP0 06 – WIRING HARNESS , LIT/OPTIONAL

Products

PositionProduct
Cookbook
Guide, Use & Care
List, Repair Parts
Tech Sheet
1Harness, Wiring Main
2Harness, Wiring Control
3Block, Disconnect (Motor) (Uses Terminal No.310222)
4plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5cap, terminal (uses 310222 or 310223 pin terminal)
6Connector, Relay (Use Term. 308569)
7Harness, Wiring (Connector (11))
9Block, Terminal
10Housing, Plug
11WP248562 Whirlpool Terminal
12Connector Housing
13242831 Whirlpool Oven Wire
13Cord Brown
13RCK811 30“ Wall Mount Grille Kit
13Storage Cabinet
13WPL 832769
13RCK805 25-3/4“ Built-In Kit
13RCK803 30“ Built-In Kit
13RCK807 27“ Built-In Kit
13WPL 832763
13Wire, 25` Roll (Red 14 Ga.)
13Wire, 25“ Roll (White 14 GA.)
13WPW10339879 Whirlpool Wire Tie
13WP482338 Whirlpool Refrigerator Adhesive
13WP261869 Whirlpool Microwave Paint
13Wire (14 Ga. 150 c Blue)
13Wire (14 Ga. 150 c Brown)
13Wire (14 Ga. 150 c Green)
13Wire (14 Ga. 150 c Orange)
13Wire (14 Ga. 150 c Yellow)
13Wire (12 Ga. 150 c Black)
1318 Ga. 80~c Rating (Red)
13Wire (14 Ga. 200 c Brown)
131
13WPL 591014
13261900 Whirlpool Microwave Spray
13Paint, Cord Brown Spray (13 Oz.)
13Wire, 25` Roll (Black 14 Ga.)
