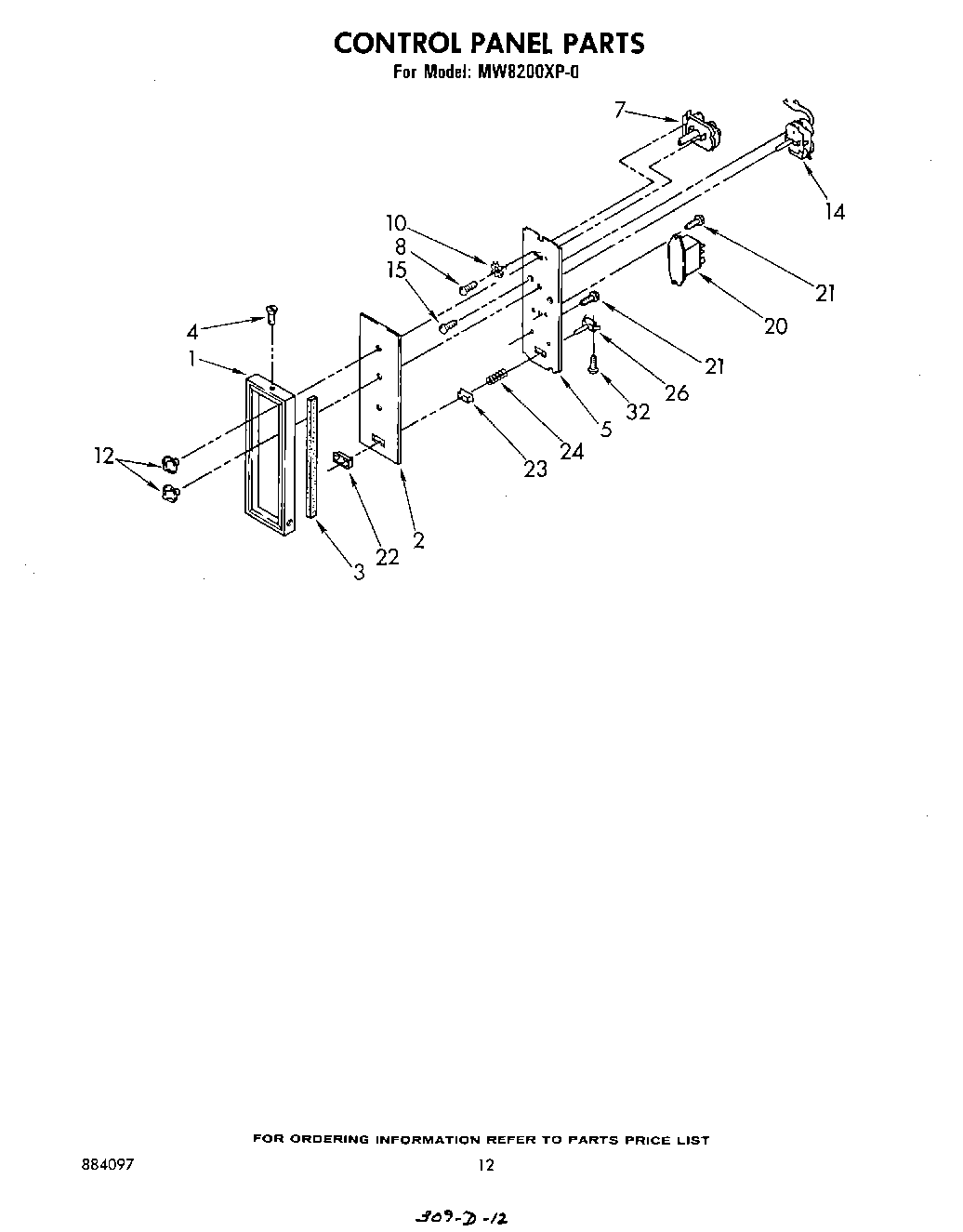

MW8200XP0 07 – CONTROL PANEL

Products

PositionProduct
1Frame, Control Panel
2Control Panel
3Seal, Foam (2)
4Screw, 8-18BT x .88 (2)
5Lower Oven Door
7Timer, Meal
8screw, 6-32 x 1/4 (2)
10Lockwasher
12Knob, Timer (3)
14Variable Power Control
15WP681249 Whirlpool Screw Assembly
20Relay, Power
21Screw 6-32 (6)
22Burner Box Bottom
23Button, Start
24Spring (2)
26Switch, Push-To-Start
32Screw
