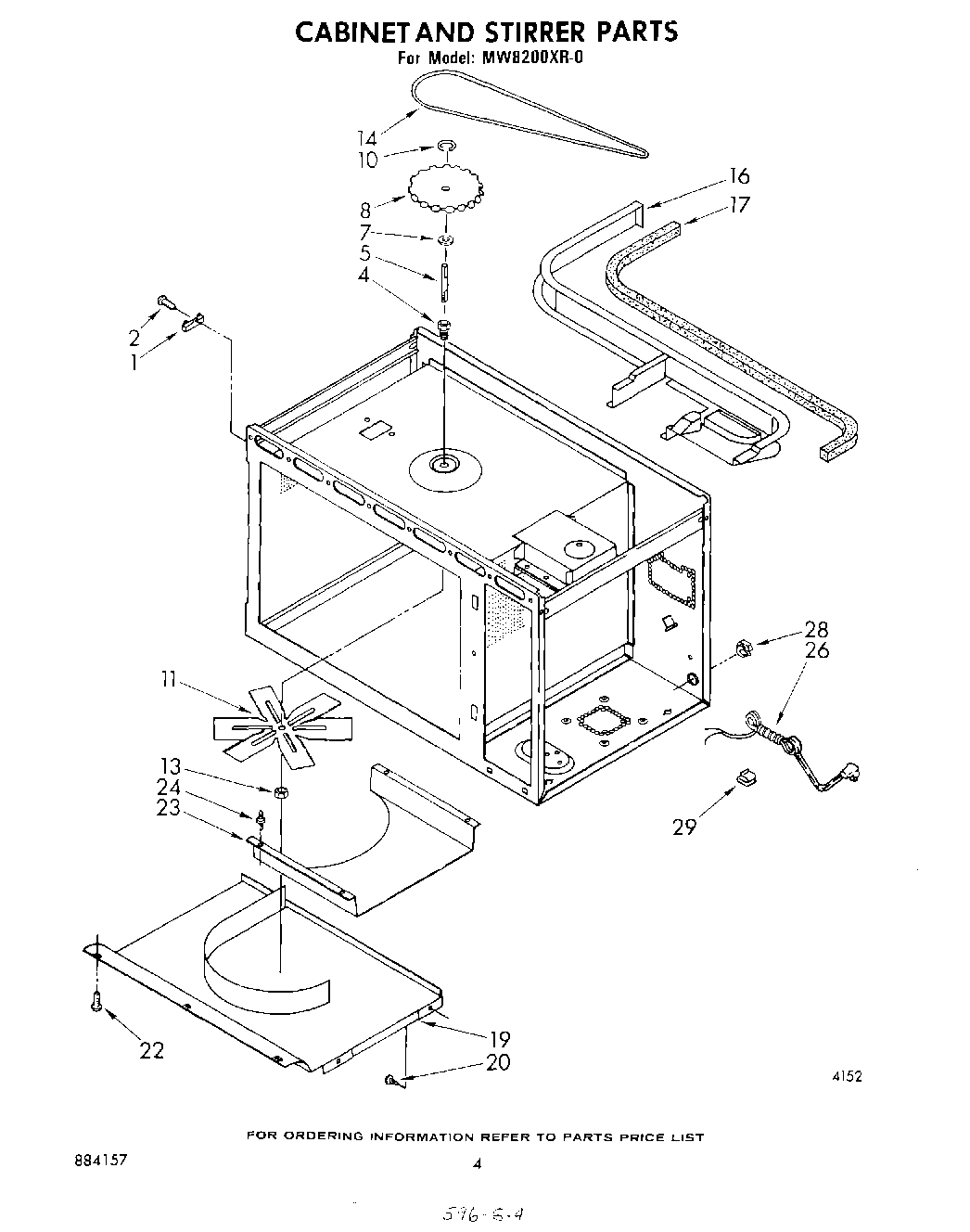

MW8200XR0 03 – CABINET AND STIRRER

Products

Position	Product
1	Fuse, Thermal
2	screw
4	Bushing, Stirrer
5	Shaft, Stirrer
7	Washer, Nylon
8	Pulley, Stirrer Blade
10	“E“ Ring
11	Stirrer Blade
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
16	Baffle, Air
17	Seal, Foam
19	Silicone Rubber Gasket
20	Fastener (4)
22	screw, 8-32 x 1/2 (3)
23	Plate, Tuning
24	Support (4)
26	Power, Cord
26	Power, Cord (Alt.)
26	Power, Cord (Alt.)
28	Strain Relief, Bushing
29	Clip
