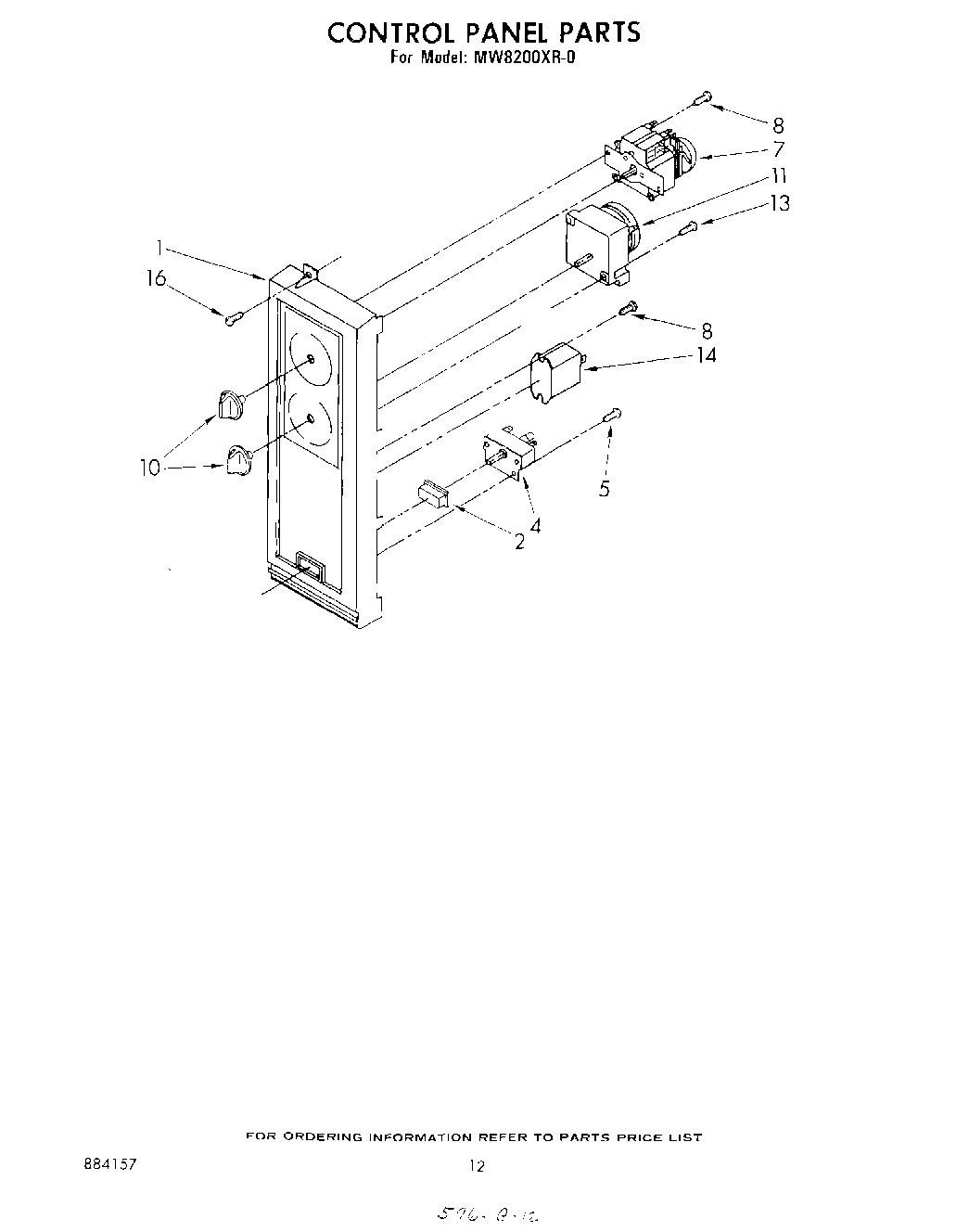

MW8200XR0 07 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Button, Start
4	Switch, Start
5	Screw, 8-22 (5)
7	Timer (60 min.)
8	Screw
10	Knob, Timer (3)
11	Timer, Percentage
13	Screw (2)
14	relay power (120 vac) (alternate)
14	Front Panel-Oven Door (White)
14	Relay, Power
