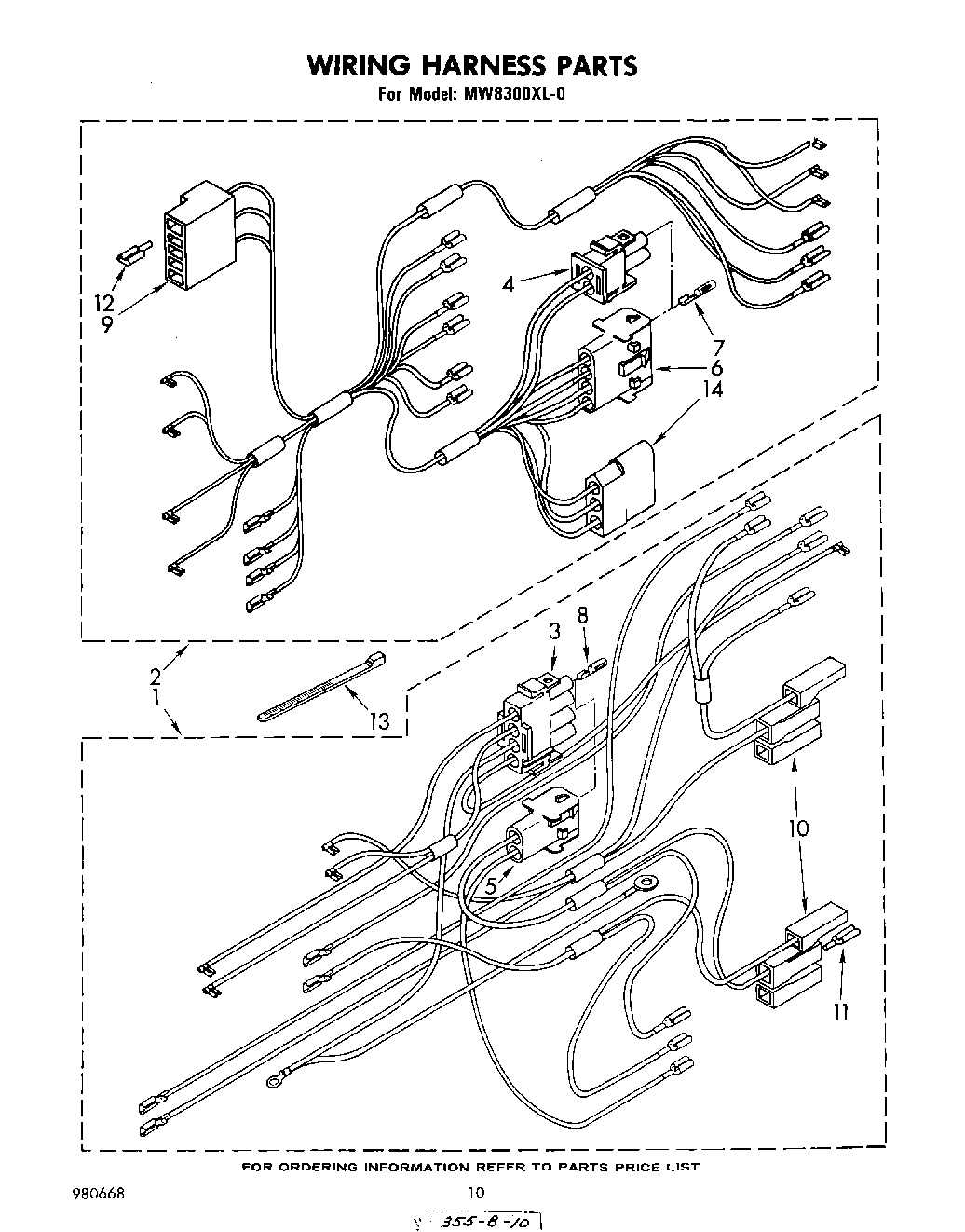

MW8300XL0 06 – WIRING HARNESS , LIT/OPTIONAL

MW8300XL0 06 – WIRING HARNESS , LIT/OPTIONAL

Written by

in

MW8300XL0 06 – WIRING HARNESS , LIT/OPTIONAL

Products

PositionProduct
1Harness, Wiring Main
2Harness, Wiring Control
3Disconnect Block (4 Terminal)
4plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5cap, terminal (uses 310222 or 310223 pin terminal)
6Disconnect Block, Female
7Harness, Wiring (Connector (11))
8Harness, Wiring (Connector (6))
9Block, Terminal
10Housing, Plug
11WP248562 Whirlpool Terminal
12Receptacle
13WPW10339879 Whirlpool Wire Tie
14Instructions, Installation
14RCK807 27“ Built-In Kit
14RCK811 30“ Wall Mount Grille Kit
14WPL 832769
14Storage Cabinet
14RCK805 25-3/4“ Built-In Kit
14Cookbook
14RCK803 30“ Built-In Kit
14List, Repair Parts
14WPL 591014
14Wire (14 Ga. 150 c Green)
14Wire (14 Ga. 150 c Brown)
14Wire (14 Ga. 150 c Blue)
14WP261869 Whirlpool Microwave Paint
14242831 Whirlpool Oven Wire
14WP482338 Whirlpool Refrigerator Adhesive
14Wire, 25“ Roll (White 14 GA.)
14Wire, 25` Roll (Red 14 Ga.)
14Wire (14 Ga. 150 c Orange)
14Wire (14 Ga. 150 c Yellow)
14Harness Conduit Asm.
14WPL 832763
14Connector (Door Switch)
14261900 Whirlpool Microwave Spray
141
14Wire (14 Ga. 200 c Brown)
1418 Ga. 80~c Rating (Red)
14Wire (12 Ga. 150 c Black)
14Wire, 25` Roll (Black 14 Ga.)
