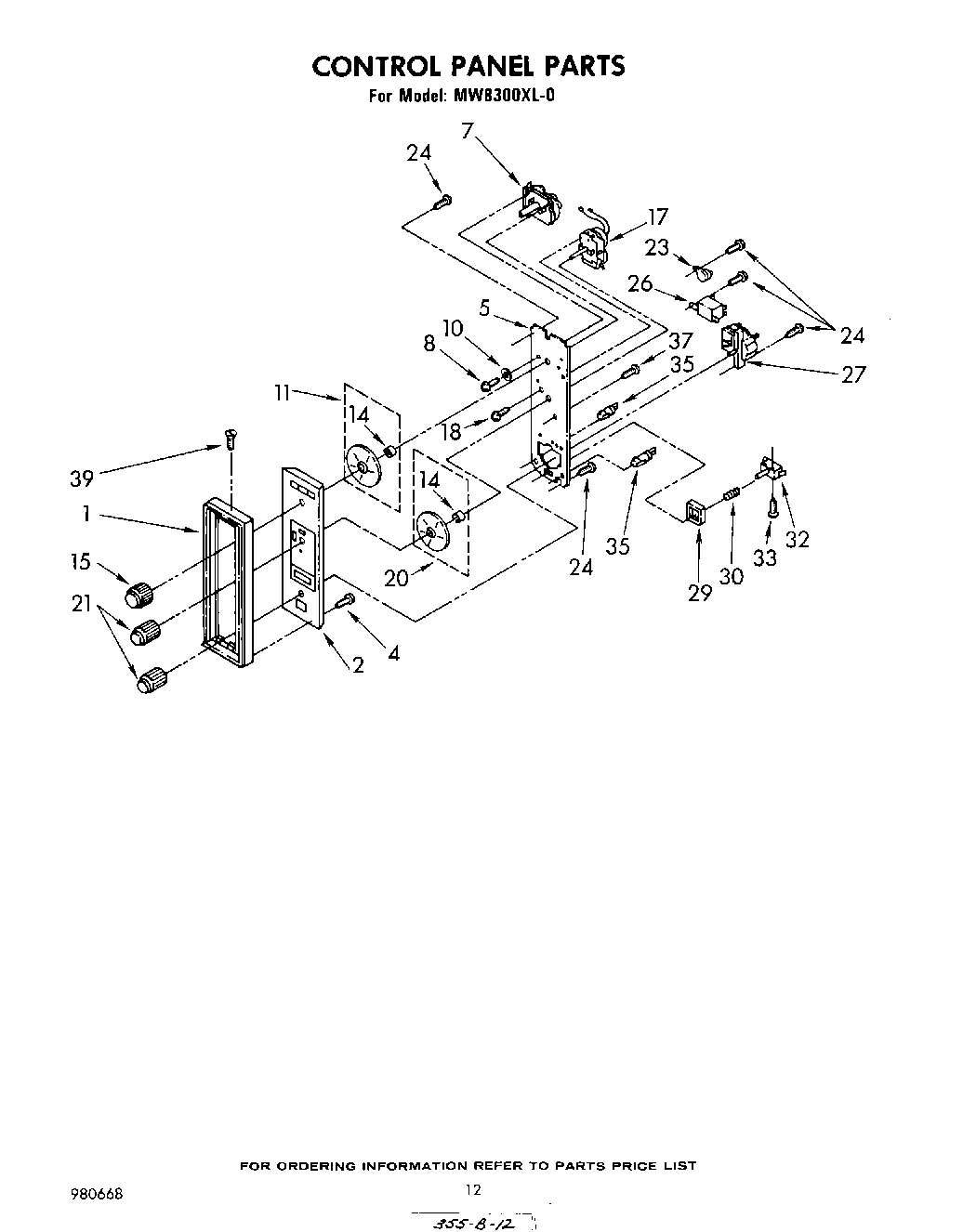

MW8300XL0 07 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Control Panel
4	WP681249 Whirlpool Screw Assembly
5	Bracket, Support
7	Timer, Meal Timer
8	screw, 6-32 x 1/4 (2)
10	Lockwasher
11	Dial, Timer (Alternate)
11	Dial, Timer (Alternate)
14	Ring, Compression
15	Knob (Meal Timer)
17	Timer, Percentage
20	Dial, Timer (Alternate)
20	Dial, Timer (Alternate)
21	Knob (2)
23	WPL 310351
24	Screw
26	Relay, Latching (Alternate)
27	Switch, Temperature Control
29	Button, Push To Start
30	Spring, Compression
32	Switch, Push-To-Start
33	Screw
35	Light, Indicator
37	Screw, 10-32 x 1/2
39	WP488627 Whirlpool Refrigerator Screw
