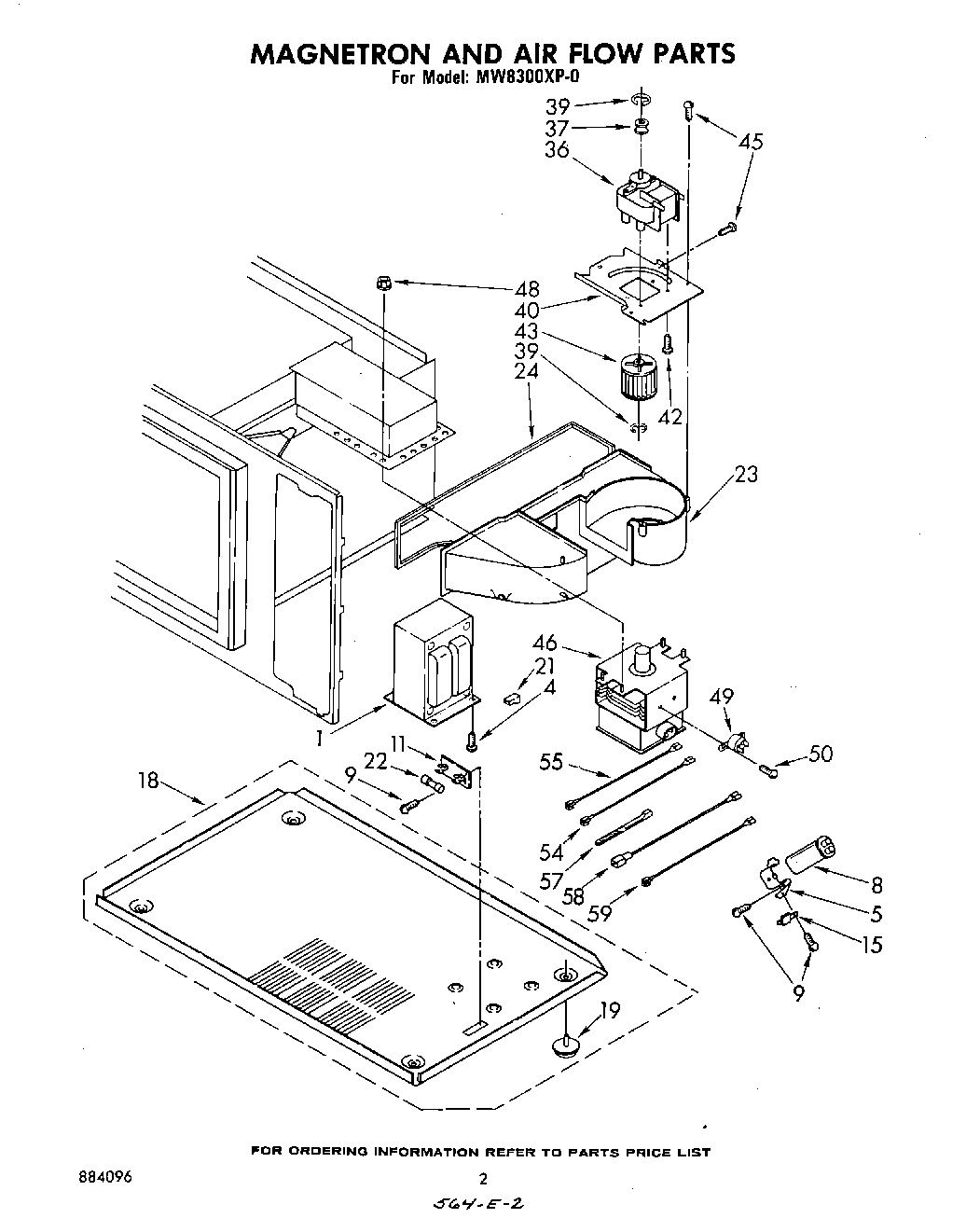

MW8300XP0 02 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Transformer
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	Capacitor (Alt.)
9	screw
11	Block, Fuse
15	Rectifier, High Voltage
18	Base, Chassis (Includes Illus. No. 19)
19	Foot, Base (4)
21	Housing Receptacle
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	SEAL
36	Transmotor
37	Pulley, Motor
39	“E“ Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
45	Screw, 11-16 x 1/2 Double Load Space Thread (5)
46	Magnetron
48	Flange Nut (4)
49	Thermal Protector (Alt.)
50	Screw, 6A x 3/8 (2)
54	Jumper, High Voltage (Black 6-5/16“)
55	Jumper, High Voltage Black 6-5/16“
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4“ (2)
59	Jumper, High Voltage Red (6-5/16“)
