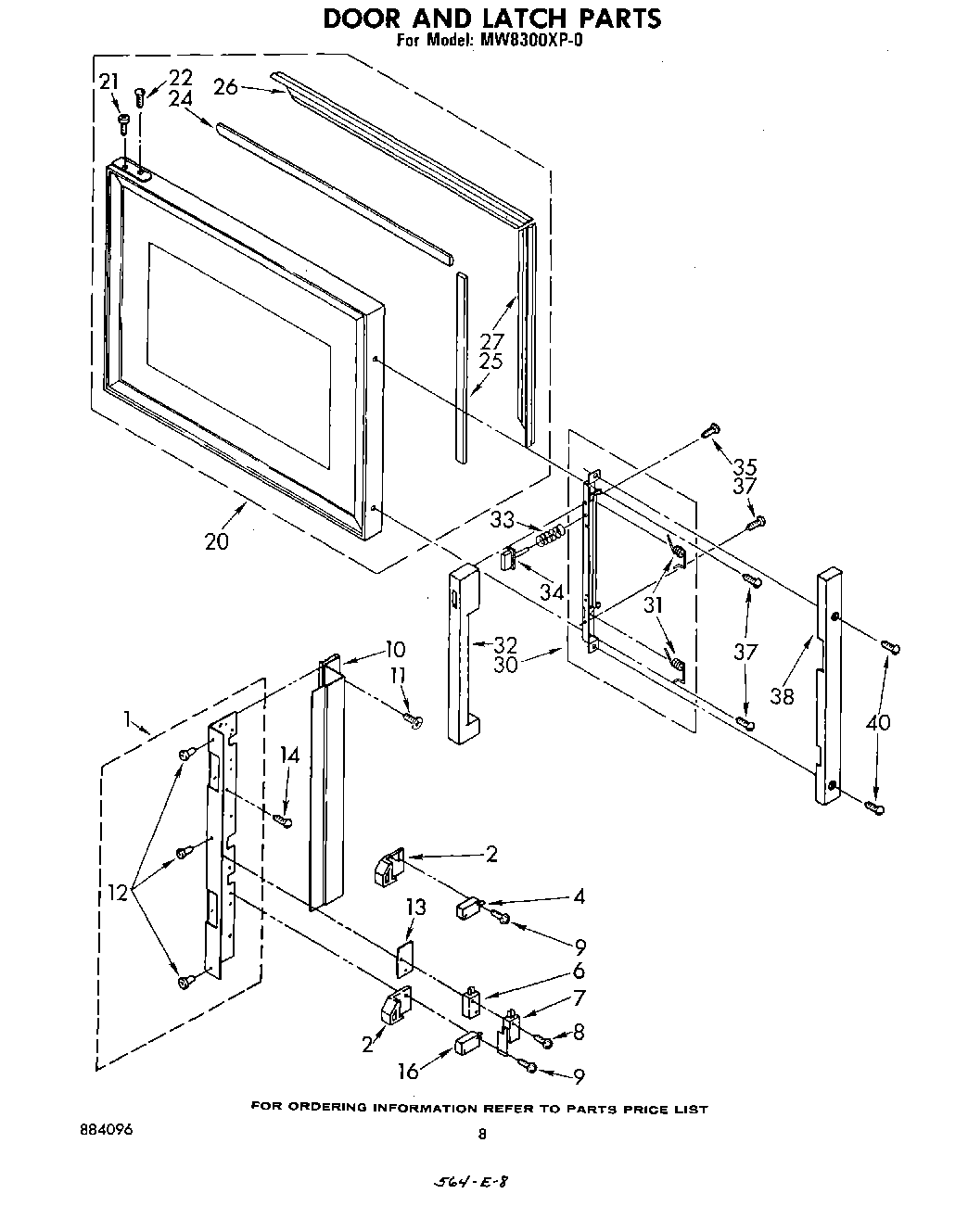

MW8300XP0 05 – DOOR AND LATCH

Products

Position	Product
1	Bracket, Catch
2	Catch (2)
6	Switch
7	Switch, Light/ Monitor
8	Screw, 4-40 x 10 (2)
9	WPL 312717
10	Shield
11	Fastener (2)
12	Rivet, Pop (3)
13	Insulator
14	WPL 309080
16	814037 Whirlpool Microwave Switch
20	Door
21	WPW10068250 Whirlpool Dishwasher Screw
24	Seal, Top & Bottom (2)
25	Seal, Sides
26	Retainer, Top & Bottom Seals (2)
27	Retain, Side Seal (2)
30	Latch Assembly
31	Spring, Torsion (2)
32	Handle, Door
33	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
34	Button, Door Handle
35	Screw, 8-32 Fillister Head Thread Form
37	WP489128 Whirlpool Refrigerator Screw
38	End Cap
40	Screw, 8-32 x 5/16 (2)
