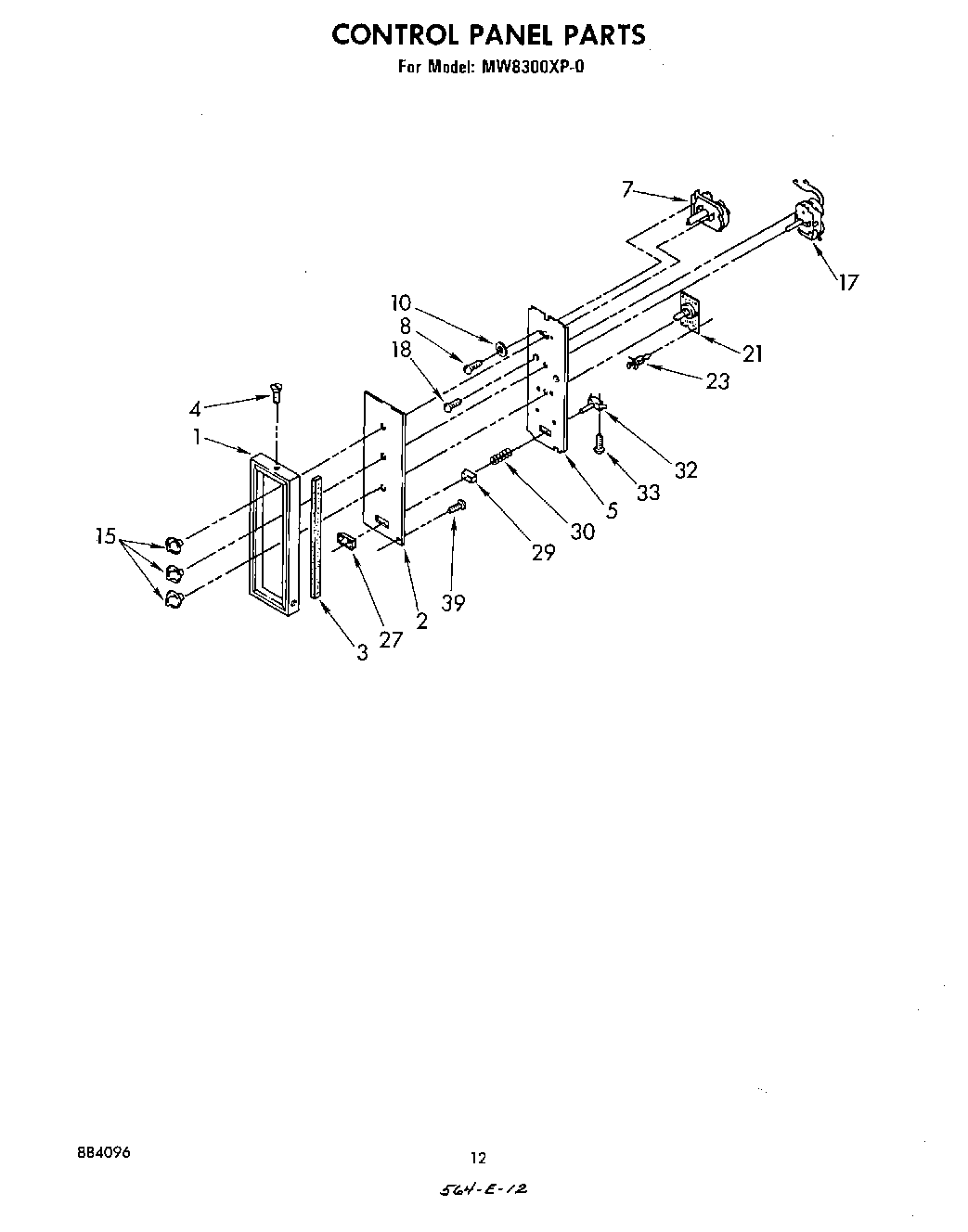

MW8300XP0 07 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Control Panel
3	Seal, Foam (2)
4	Screw, 8-18BT x .88 (2)
5	Lower Oven Door
7	Timer, Meal
8	screw, 6-32 x 1/4 (2)
10	Lockwasher
15	Knob, Timer (3)
17	Variable Power Control
18	WP681249 Whirlpool Screw Assembly
21	P.C. Board (Temp Control)
23	Support, Temperature Control (3)
27	Burner Box Bottom
29	Button, Start
30	Spring (2)
32	Switch, Push-To-Start
33	Screw
39	Screw 6-32 (6)
