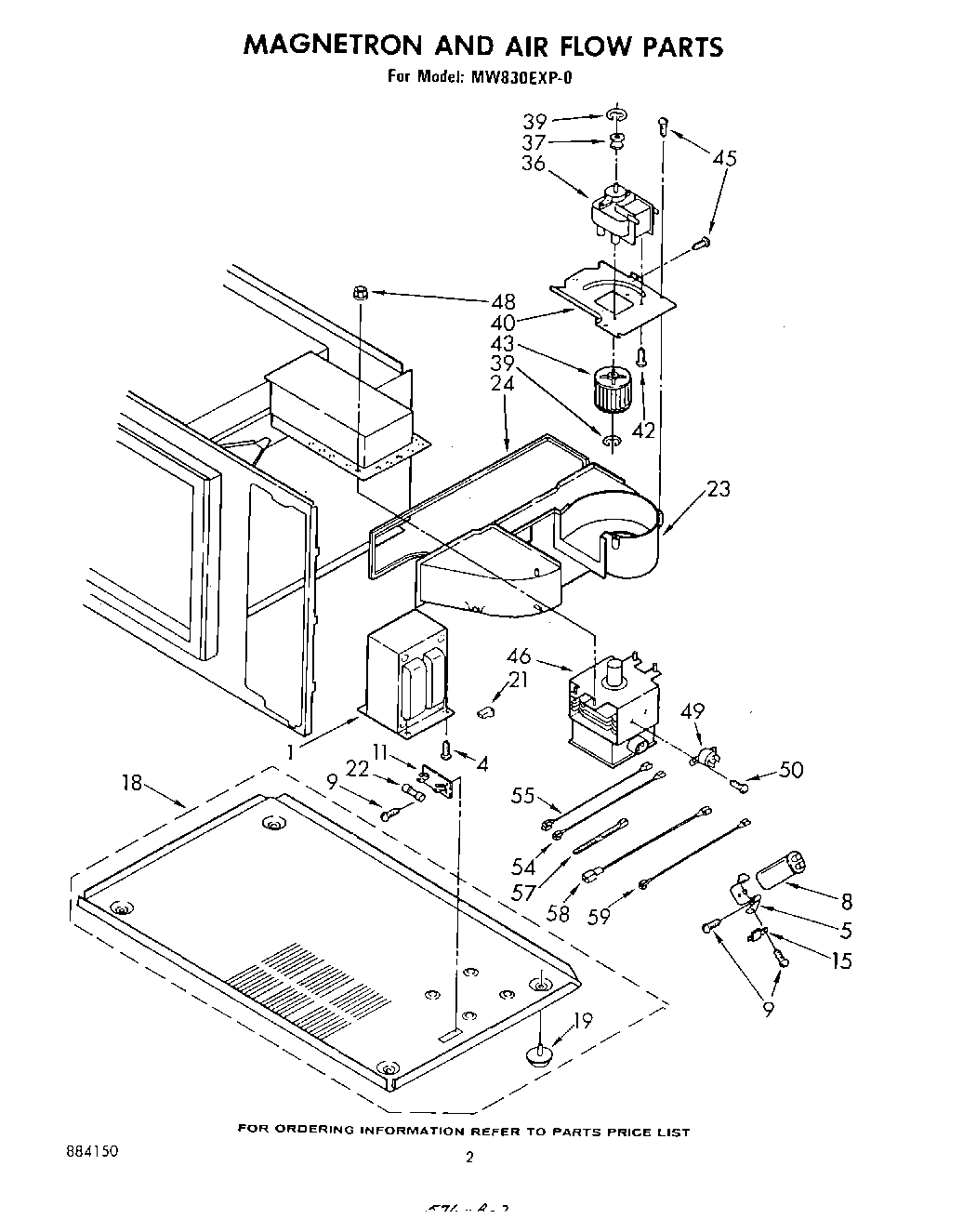

MW830EXP0 02 – MAGNETRON AND AIRFLOW

MW830EXP0 02 – MAGNETRON AND AIRFLOW

Written by

in

MW830EXP0 02 – MAGNETRON AND AIRFLOW

Products

PositionProduct
1Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
8Capacitor
9screw
11Block, Fuse
15Rectifier, High Voltage
18Base, Chassis (Includes Illus. No. 19)
19Foot, Base (4)
21Housing Receptacle
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
24SEAL
36Transmotor
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
45Screw, 11-16 x 1/2 Double Load Space Thread (5)
46Magnetron
48Flange Nut (4)
49Thermal Protector
50Screw, 6A x 3/8 (2)
54Jumper, High Voltage (Black 6-5/16“)
55Jumper, High Voltage Black 6-5/16“
57WPW10339879 Whirlpool Wire Tie
58High Voltage Lead, Gray 6-3/4“ (2)
59Jumper, High Voltage Red (6-5/16“)
