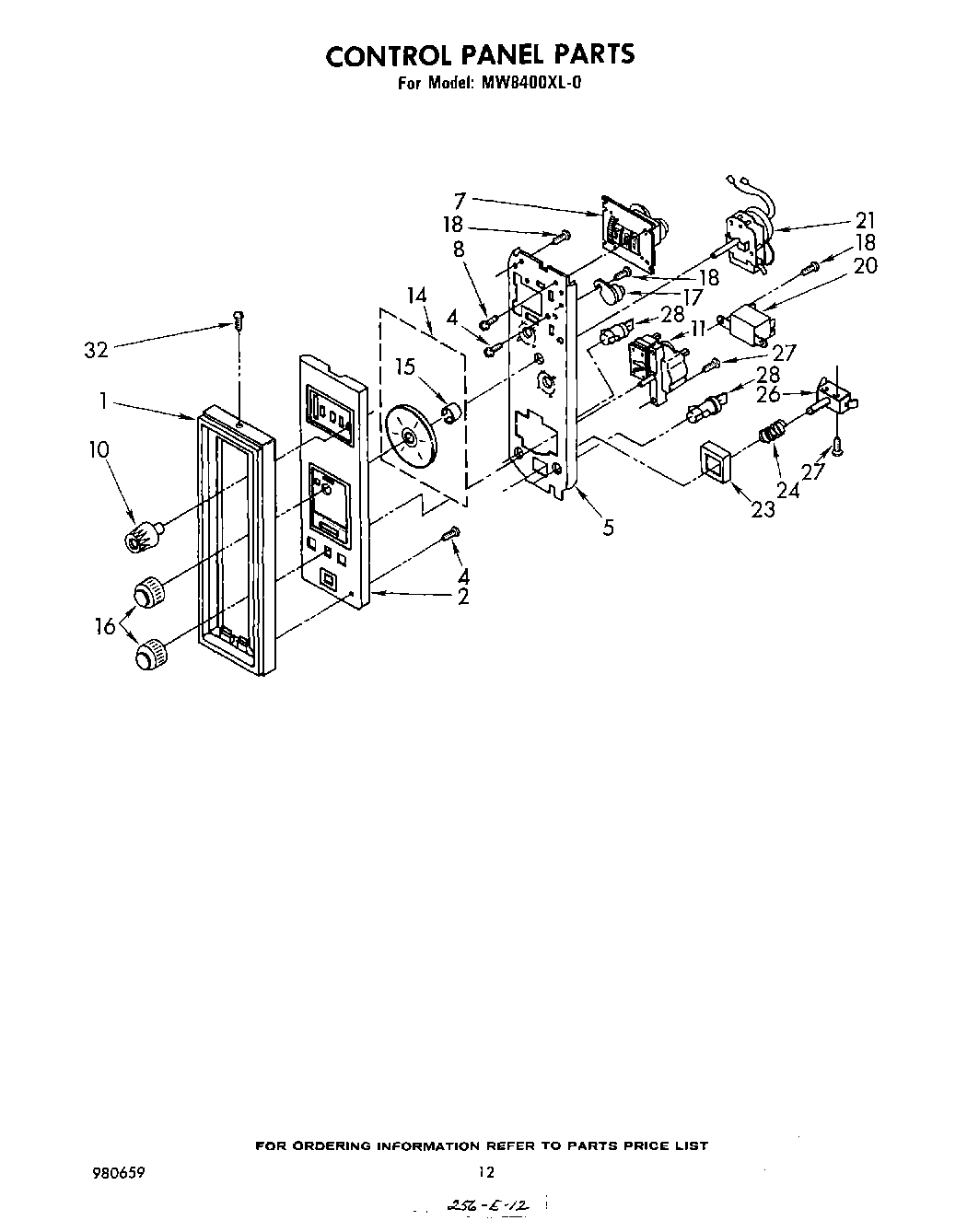

MW8400XL0 07 – CONTROL PANEL

Products

PositionProduct
1Frame, Control Panel
2Control Panel
4WP681249 Whirlpool Screw Assembly
5Bracket, Support
7Timer, Digital (Microwave)
8WP3390631 Whirlpool Screw
10Knob, Digital
11Switch, Temperature Control
14Dial, Timer (Alternate)
14Dial, Timer (Alternate)
15Ring, Compression
16Knob (2)
17WPL 310351
18Screw
20Relay, Latching (Alternate)
21Timer, Percentage
23Button, Push To Start
24Spring, Compression
26Switch, Push-To-Start
27Screw
28Light, Indicator
32WP488627 Whirlpool Refrigerator Screw
