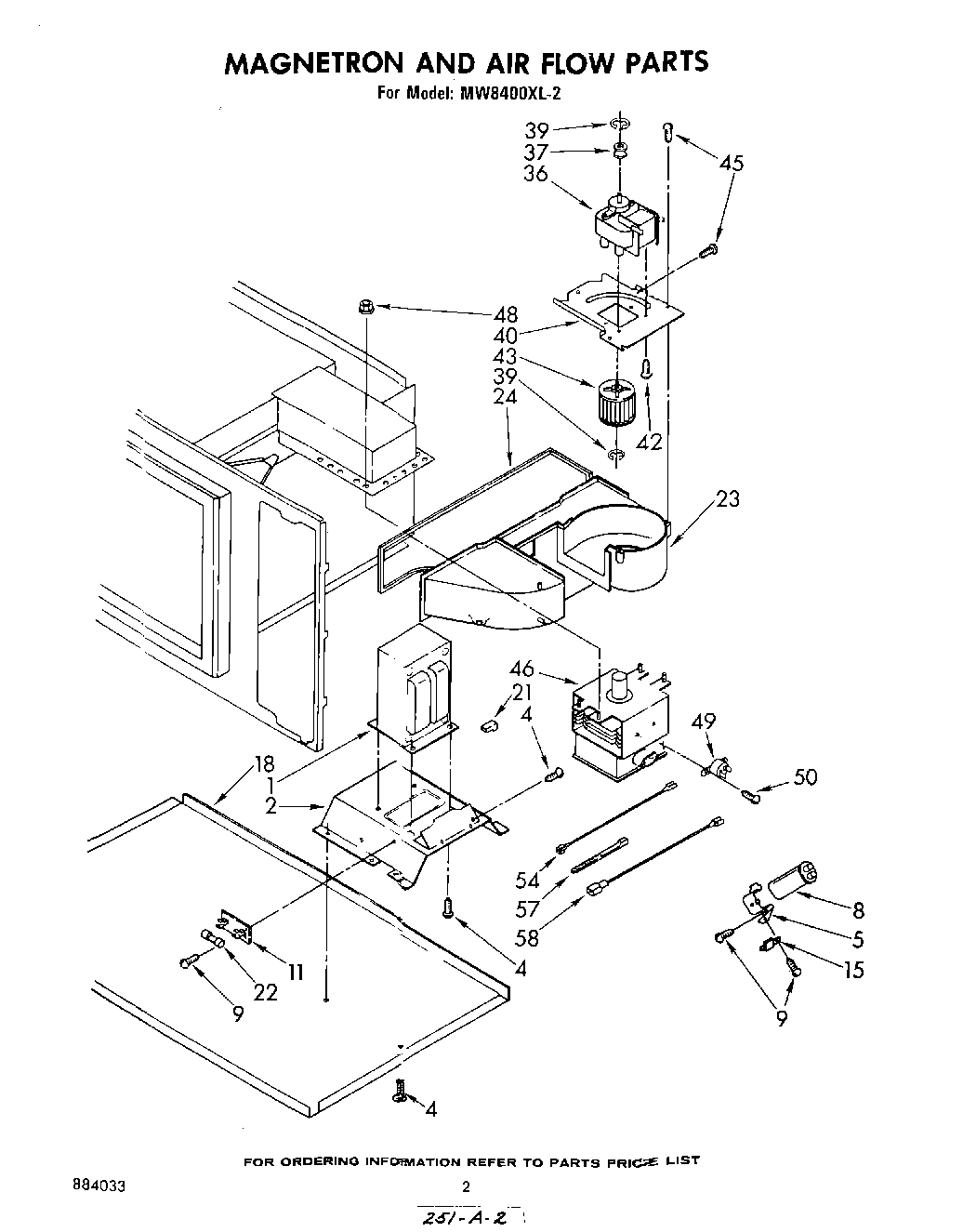

MW8400XL2 02 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	Transformer (Alternate)
1	Transformer
2	Bracket, Transformer
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	Capacitor
8	capacitor (alt.)
9	screw
11	Block, Fuse
15	Rectifier, High Voltage
18	Base, Chassis (Not Serviceable)
21	Housing, Receptical
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	SEAL
36	Transformer (Alternate)
36	Transformer (Alternate)
37	Pulley, Motor
39	“E“ Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
45	Screw, 11-16 x 1/2 Double Load Space Thread (5)
46	Magnetron (Alt.)
46	Magnetron (Alt.)
46	Magnetron (Alt.)
48	Flange Nut (4)
49	Thermostat
50	Screw, 6A x 3/8 (2)
54	Jumper, High Voltage Red 6-3/4“ (2)
57	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4“ (2)
