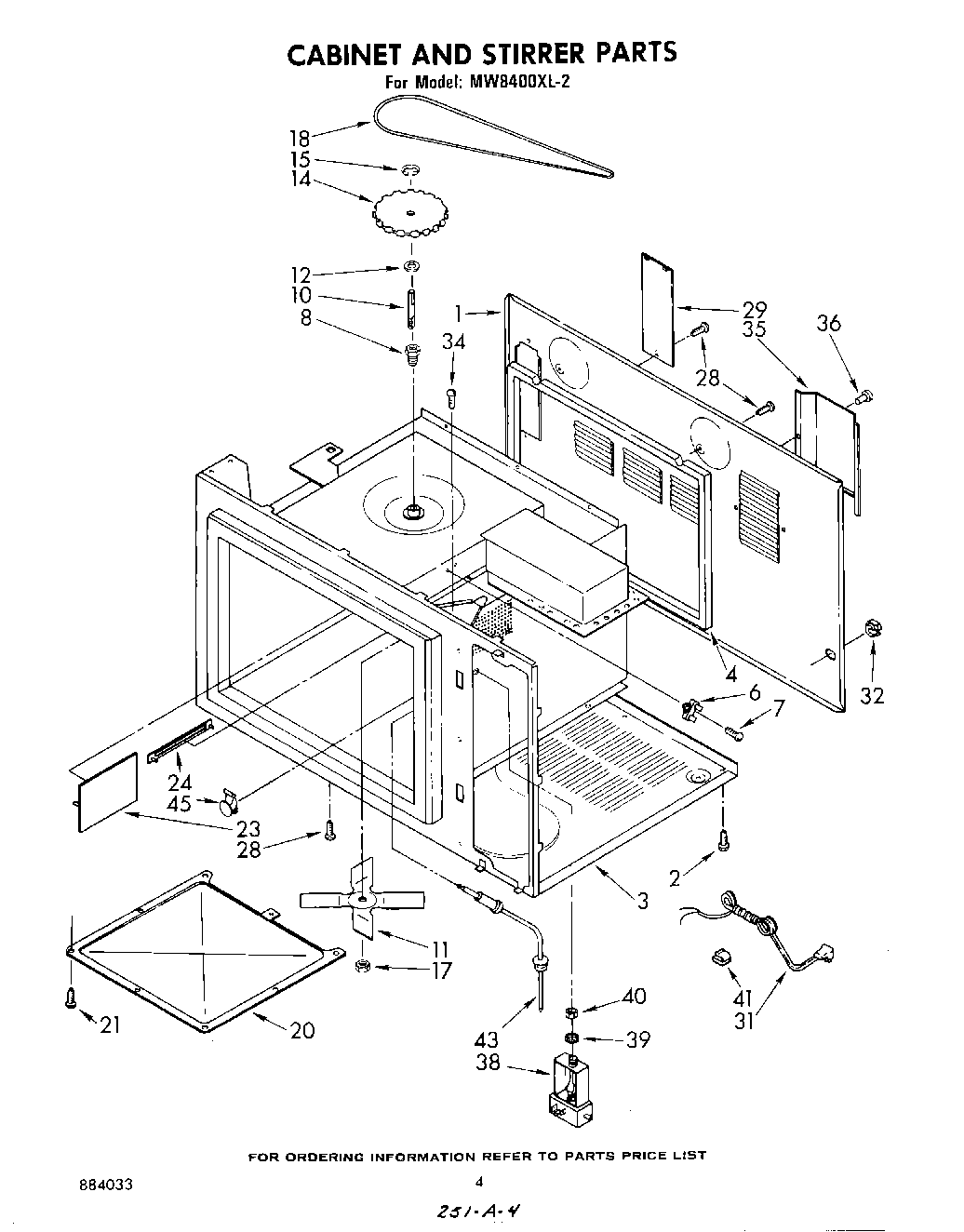

MW8400XL2 03 – CABINET AND STIRRER

Products

Position	Product
1	Back, Chassis (Not Serviceable)
3	Base, Cabinet (Not Serviceable)
4	Seal, Cavity Back
6	Fuse, Thermal
7	screw
8	Bushing, Stirrer
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	“E“ Ring
17	WP487939 Whirlpool Refrigerator Nut
18	Belt, Drive
20	Cover, Stirrer
21	Fastener (2)
23	Shield, Exhaust Probe
24	Cover, Rivet
28	WP308685 Whirlpool Microwave Screw
29	Cover, Lamp
31	Power Cord (Alternate)
31	Power Cord (Alternate)
32	Strain Relief, Bushing
34	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
35	Shield, Louver (Includes Illus. 36)
36	Rivet
38	Jack, Probe
39	Washer, Internal Lock
40	Nut & Washer
41	8528351 Whirlpool Clip
43	Temperature Probe & Plug
45	Hole Plug (4)
