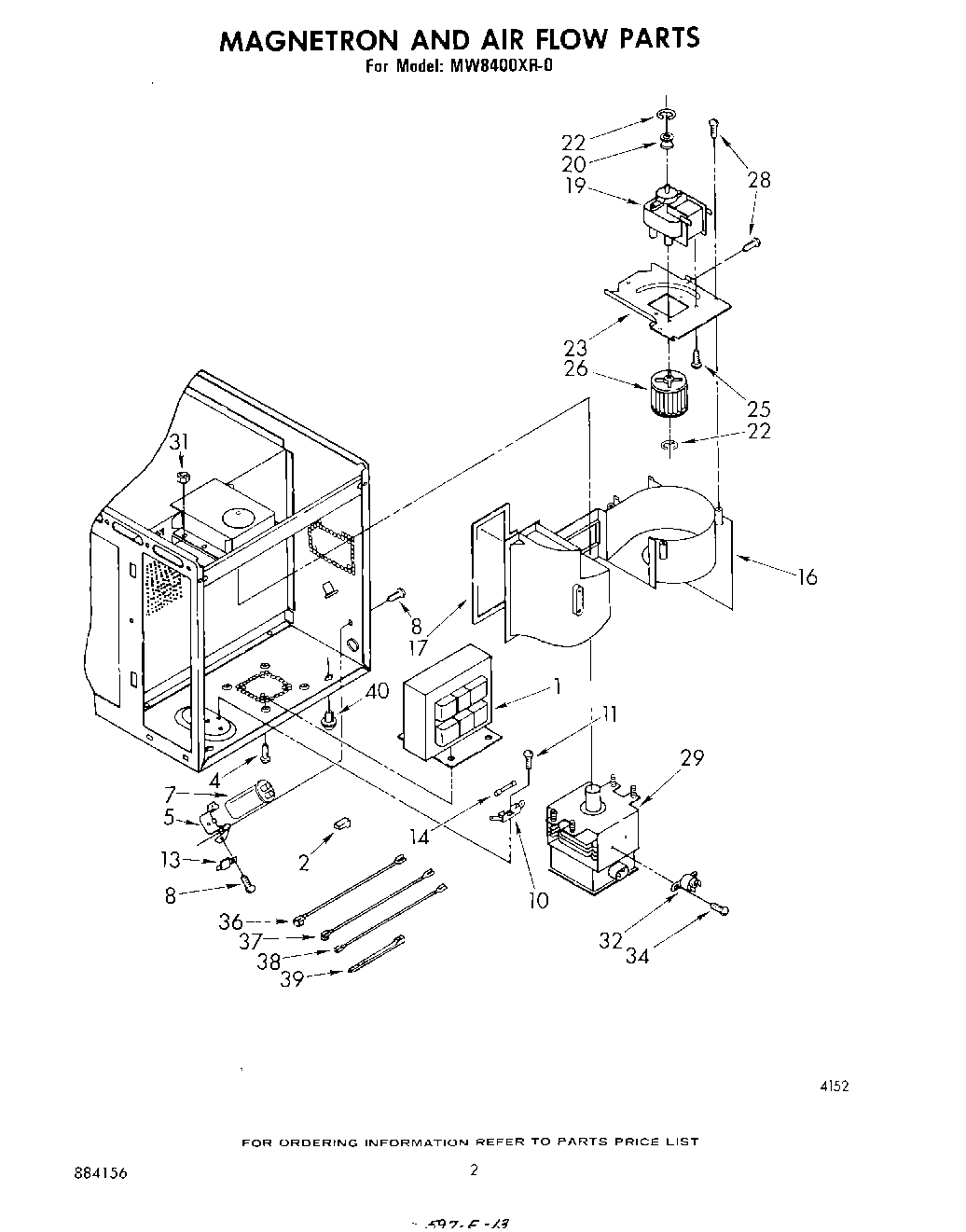

MW8400XR0 02 – MAGNETRON AND AIR FLOW

MW8400XR0 02 – MAGNETRON AND AIR FLOW

Written by

in

MW8400XR0 02 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Transformer
1WPL 313671
1Transformer (Alt.)
2Housing Receptacle
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
7capacitor (alt.)
8screw
10Fuse Holder
11Screw
13rectifier, high voltage
13rectifier, high voltage (alt.)
14Fuse (15 Amp)
14Fuse (15 Amp) (Alt.)
16Air Duct (Horizontal)
17Seal, Air Duct
19Motor
20Pulley, Motor
22“E“ Ring
23Bracket, Motor
25WP486579 Whirlpool Air Conditioner Screw
26Wheel, Blower
28Screw, 11-16 x 1/2 Double Load Space Thread (5)
29Magnetron (Alt.)
29Magnetron (Alt.)
29Magnetron (Alt.)
29Magnetron
31Flange Nut (4)
32Thermal Protector (Alt.)
34Screw, 6A x 3/8 (2)
36Jumper, High Voltage Gray 8-11/16“
37Jumper, High Voltage Black 6-5/16“
38Jumper, High Voltage Red (6-5/16“)
39WPW10339879 Whirlpool Wire Tie
40Foot, Base (4)
