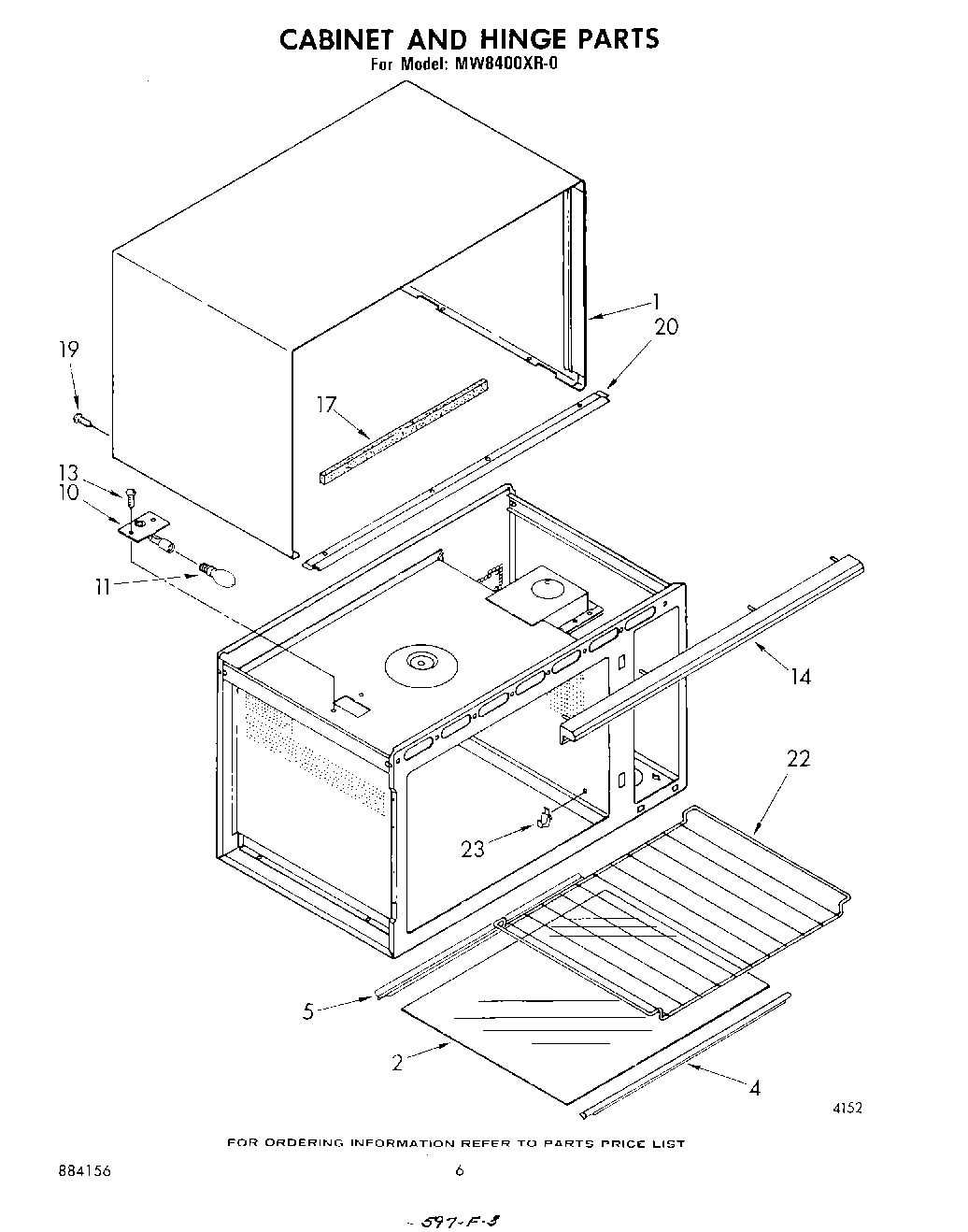

MW8400XR0 04 – CABINET AND HINGE

MW8400XR0 04 – CABINET AND HINGE

Written by

in

MW8400XR0 04 – CABINET AND HINGE

Products

PositionProduct
1Wrapper, Cabinet
2Shelf, Microwave (Install with Silastic 482338)
4Trim, Shelf (Front)
5Trim, Shelf (Rear)
10Platinum
11WP3395618 Whirlpool Light Bulb
13screw
14Grille, Air
14Nut, Timer (4)
17Seal, Foam
19WP488729 Whirlpool Refrigerator Door Screw
20Trim, Lower
22rack, wire
23WP3149478 Whirlpool Microwave Support
