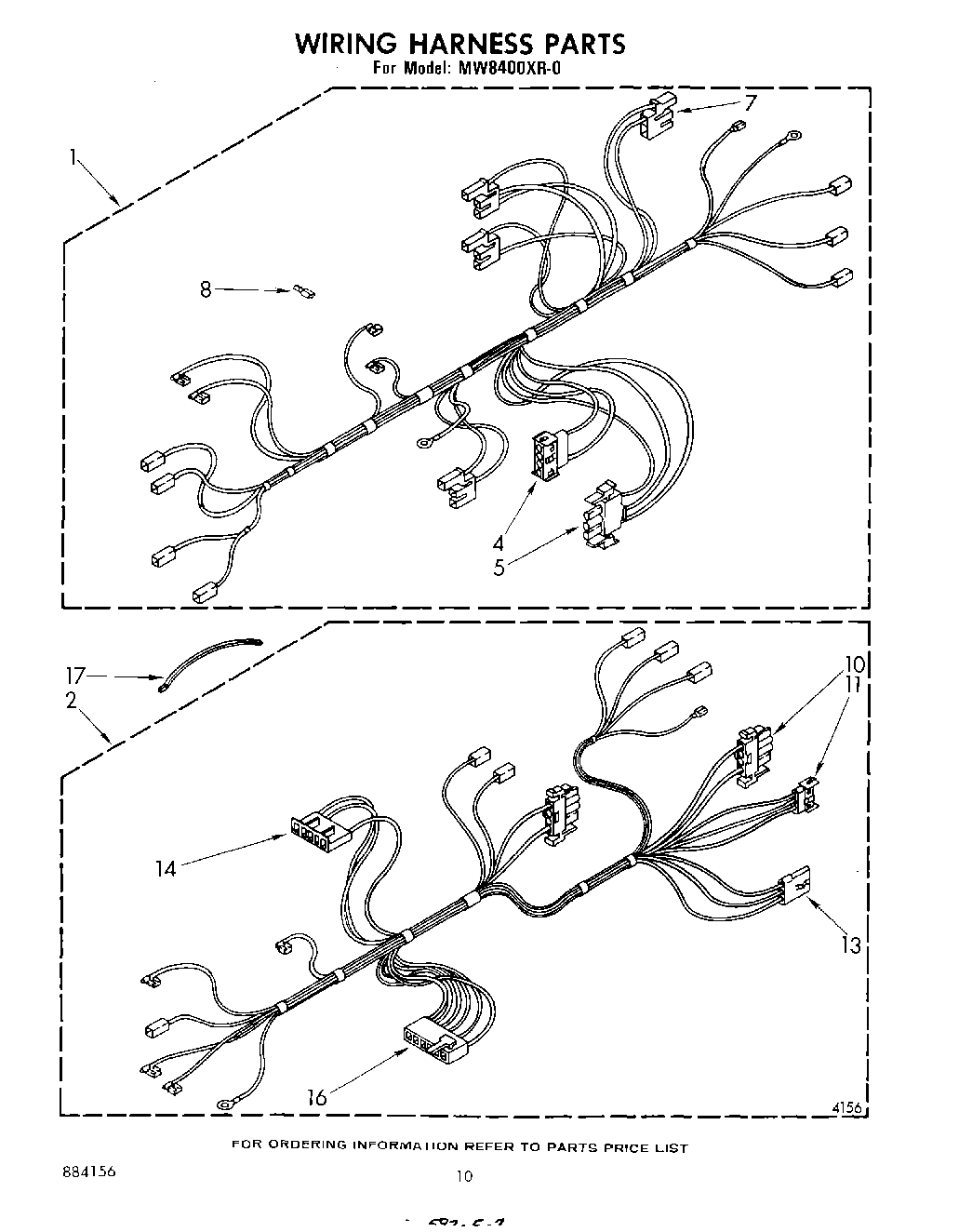

MW8400XR0 06 – WIRING HARNESS , LIT/OPTIONAL

Written by

Products

Position	Product
	Cookbook
	List, Repair Parts
	Guide, Use & Care
	Tech Sheet
1	Harness, Wiring (Main)
2	Harness, Wiring Control
4	cap, terminal (uses 310222 or 310223 pin terminal)
5	Block, Disconnect (Motor) (Uses Terminal No.310222)
7	Housing, Plug
8	WP248562 Whirlpool Terminal
11	Connector Housing
13	Connector (Door Switch)
14	Block, Terminal
16	plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
17	WP261869 Whirlpool Microwave Paint
17	242831 Whirlpool Oven Wire
17	Built-in Kits (30“)
17	24“ Built-In Kit
17	27“built-in Kit
17	Wall Mount Kit
17	WP482338 Whirlpool Refrigerator Adhesive
17	WPW10339879 Whirlpool Wire Tie
17	Wire, 25“ Roll (White 14 GA.)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire (14 Ga. 150 c Yellow)
17	Wire (14 Ga. 150 c Blue)
17	Wire (14 Ga. 150 c Brown)
17	Wire (12 Ga. 150 c Black)
17	18 Ga. 80~c Rating (Red)
17	Wire (14 Ga. 200 c Brown)
17	1
17	WPL 591014
17	WPL 832985
17	261900 Whirlpool Microwave Spray
17	Wire (14 Ga. 150 c Orange)
17	Paint, Cord Brown Spray (13 Oz.)
17	Wire (14 Ga. 150 c Green)
17	Cord Brown
17	Wire, 25` Roll (Black 14 Ga.)
