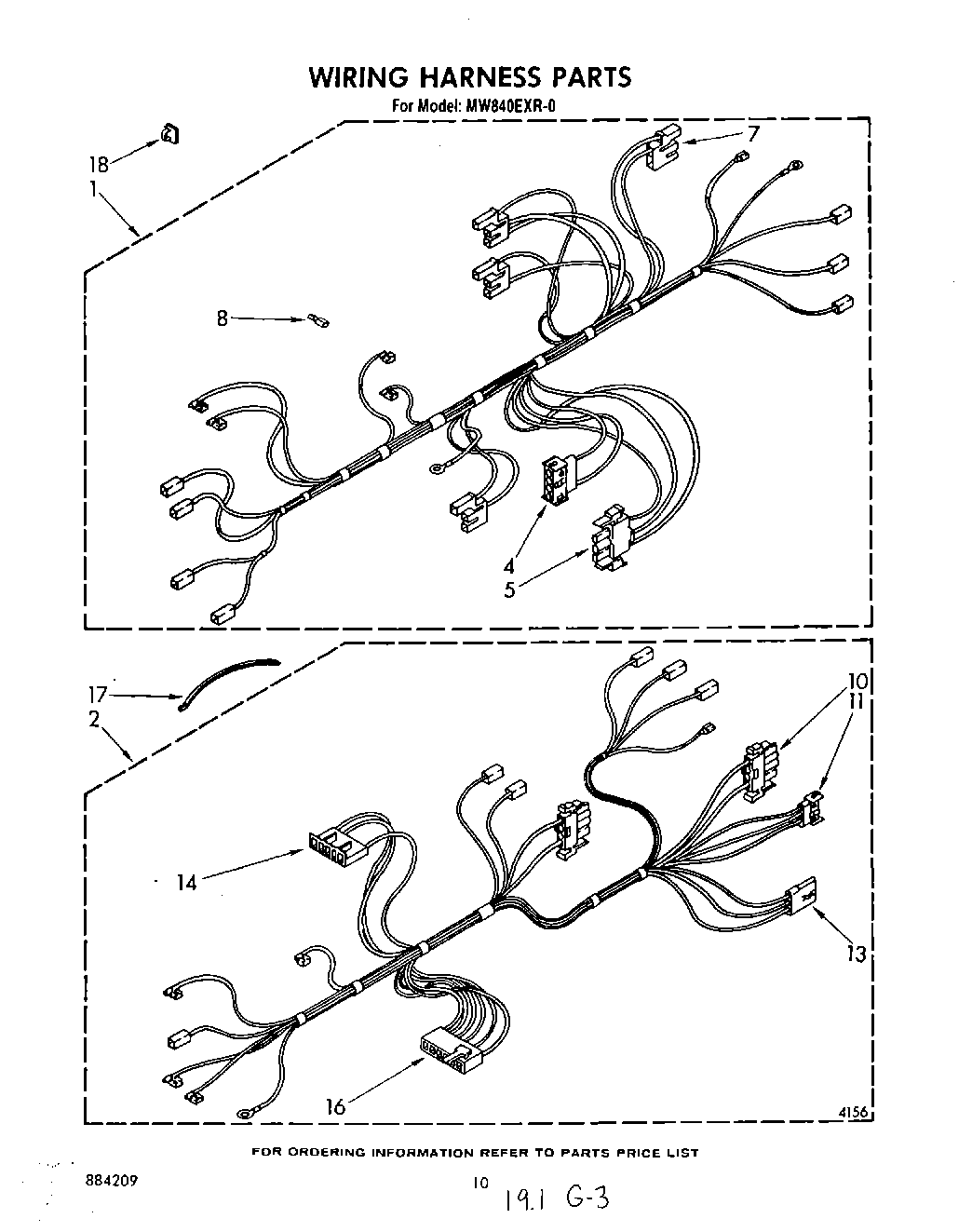

MW840EXR0 06 – WIRING HARNESS , LIT/OPTIONALadmin2025-04-26T08:44:45+00:00MW840EXR0 06 – WIRING HARNESS , LIT/OPTIONAL
Products
| Position | Product |
|---|
| List, Repair Parts |
| Guide, Use & Care |
| Tech Sheet |
| Cookbook |
| 1 | Harness, Wiring Main |
| 2 | Harness, Wiring Control |
| 4 | cap, terminal (uses 310222 or 310223 pin terminal) |
| 5 | Block, Disconnect (Motor) (Uses Terminal No.310222) |
| 7 | Housing, Plug |
| 8 | WP248562 Whirlpool Terminal |
| 11 | Connector Housing |
| 13 | Connector (Door Switch) |
| 14 | Block, Terminal |
| 16 | plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal) |
| 17 | WPW10339879 Whirlpool Wire Tie |
| 18 | WP261869 Whirlpool Microwave Paint |
| 18 | 242831 Whirlpool Oven Wire |
| 18 | Clip, Wire (2) |
| 18 | Built-in Kits (30``) |
| 18 | 24`` Built-In Kit |
| 18 | 27``built-in Kit |
| 18 | Wall Mount Kit |
| 18 | WP482338 Whirlpool Refrigerator Adhesive |
| 18 | Wire, 25`` Roll (White 14 GA.) |
| 18 | Wire, 25` Roll (Red 14 Ga.) |
| 18 | Wire (12 Ga. 150 c Black) |
| 18 | Wire (14 Ga. 150 c Blue) |
| 18 | 18 Ga. 80~c Rating (Red) |
| 18 | Wire (14 Ga. 200 c Brown) |
| 18 | 1 |
| 18 | WPL 591014 |
| 18 | WPL 832985 |
| 18 | 261900 Whirlpool Microwave Spray |
| 18 | Wire (14 Ga. 150 c Yellow) |
| 18 | Wire (14 Ga. 150 c Orange) |
| 18 | Paint, Cord Brown Spray (13 Oz.) |
| 18 | Wire (14 Ga. 150 c Green) |
| 18 | Cord Brown |
| 18 | Wire (14 Ga. 150 c Brown) |
| 18 | Wire, 25` Roll (Black 14 Ga.) |
