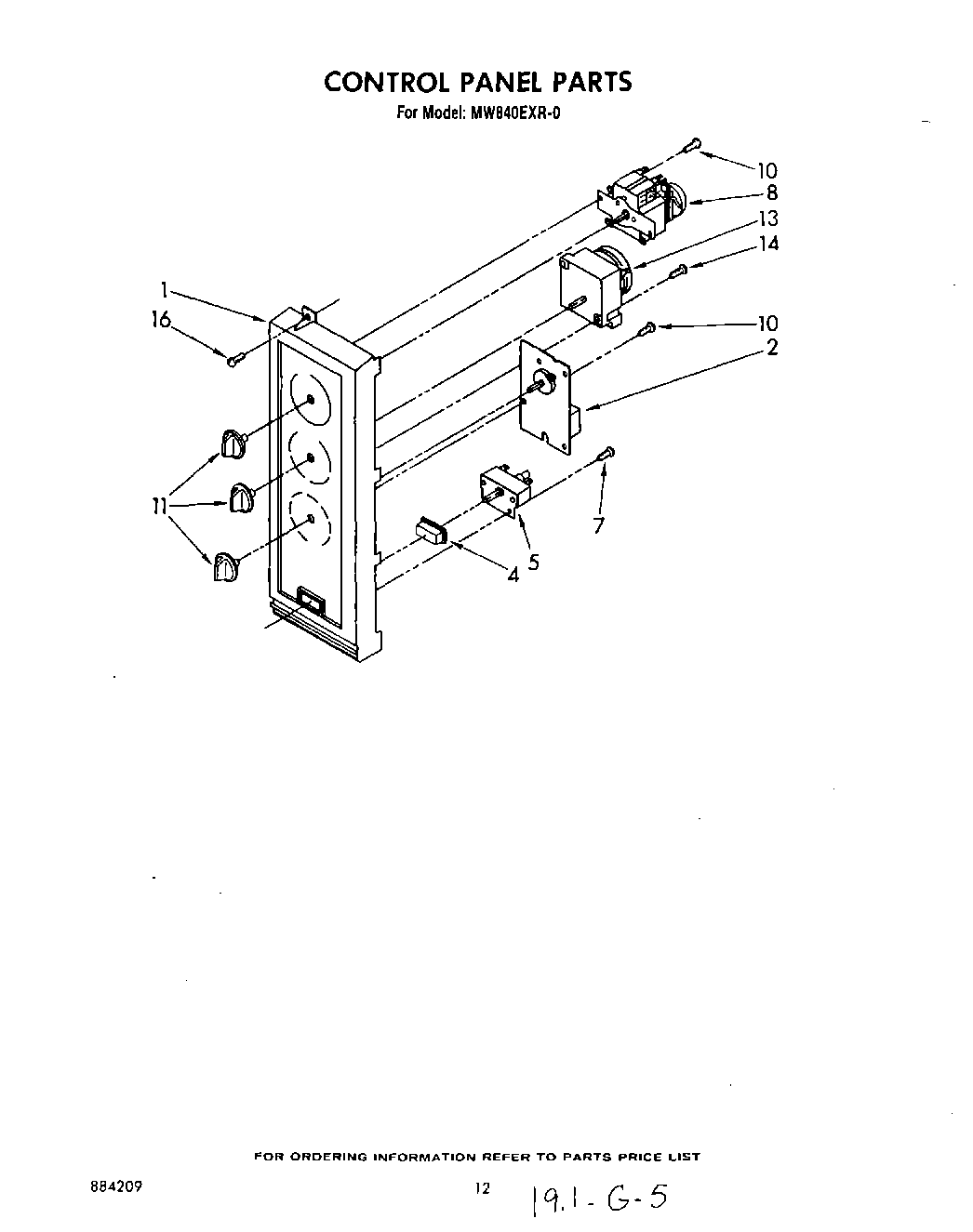

MW840EXR0 07 – CONTROL PANEL

MW840EXR0 07 – CONTROL PANEL

Written by

in

MW840EXR0 07 – CONTROL PANEL

Products

PositionProduct
1Frame, Control Panel
2Control, Temperature
4Button, Start
5Switch, Start
7Screw, 8-22 (5)
8Timer (60 min.)
10Screw
11Knob, Timer (3)
13Timer, Percentage
14Screw (2)
16Screw 8-32 X 1/2
