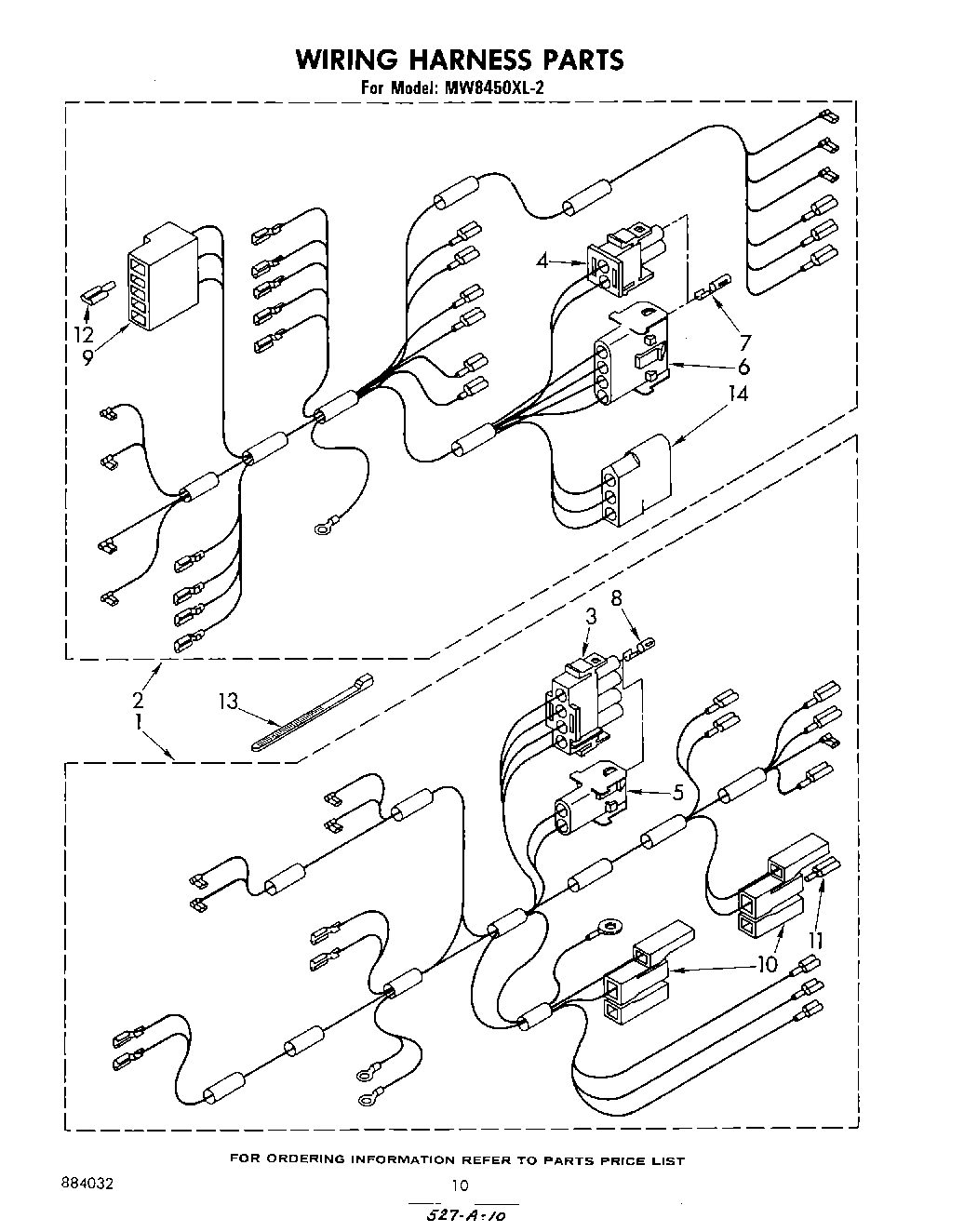

MW8450XL2 06 – WIRING HARNESS , LIT/OPTIONAL

Products

Position	Product
1	Harness, Wiring Main
2	Harness, Wiring Control
3	Disconnect Block (4 Terminal)
4	plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5	cap, terminal (uses 310222 or 310223 pin terminal)
6	Disconnect Block, Female
7	Harness, Wiring (Connector (11))
8	Harness, Wiring (Connector (6))
9	Block, Terminal
10	Housing, Plug
11	WP248562 Whirlpool Terminal
12	Receptacle
13	WPW10339879 Whirlpool Wire Tie
14	Tech Sheet
14	Cord Brown
14	261900 Whirlpool Microwave Spray
14	WPL 832769
14	Storage Cabinet
14	Cookbook
14	RCK807 27`` Built-In Kit
14	RCK811 30`` Wall Mount Grille Kit
14	Instructions, Installation
14	RCK803 30`` Built-In Kit
14	RCK805 25-3/4`` Built-In Kit
14	List, Repair
14	242831 Whirlpool Oven Wire
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Blue)
14	WP261869 Whirlpool Microwave Paint
14	WP482338 Whirlpool Refrigerator Adhesive
14	Wire, 25`` Roll (White 14 GA.)
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire (14 Ga. 150 c Yellow)
14	Wire (12 Ga. 150 c Black)
14	Broiler Pan
14	WPL 832763
14	Paint, Cord Brown Spray (13 Oz.)
14	Connector (Door Switch)
14	WPL 591014
14	1
14	Wire (14 Ga. 200 c Brown)
14	18 Ga. 80~c Rating (Red)
14	Wire, 25` Roll (Black 14 Ga.)
