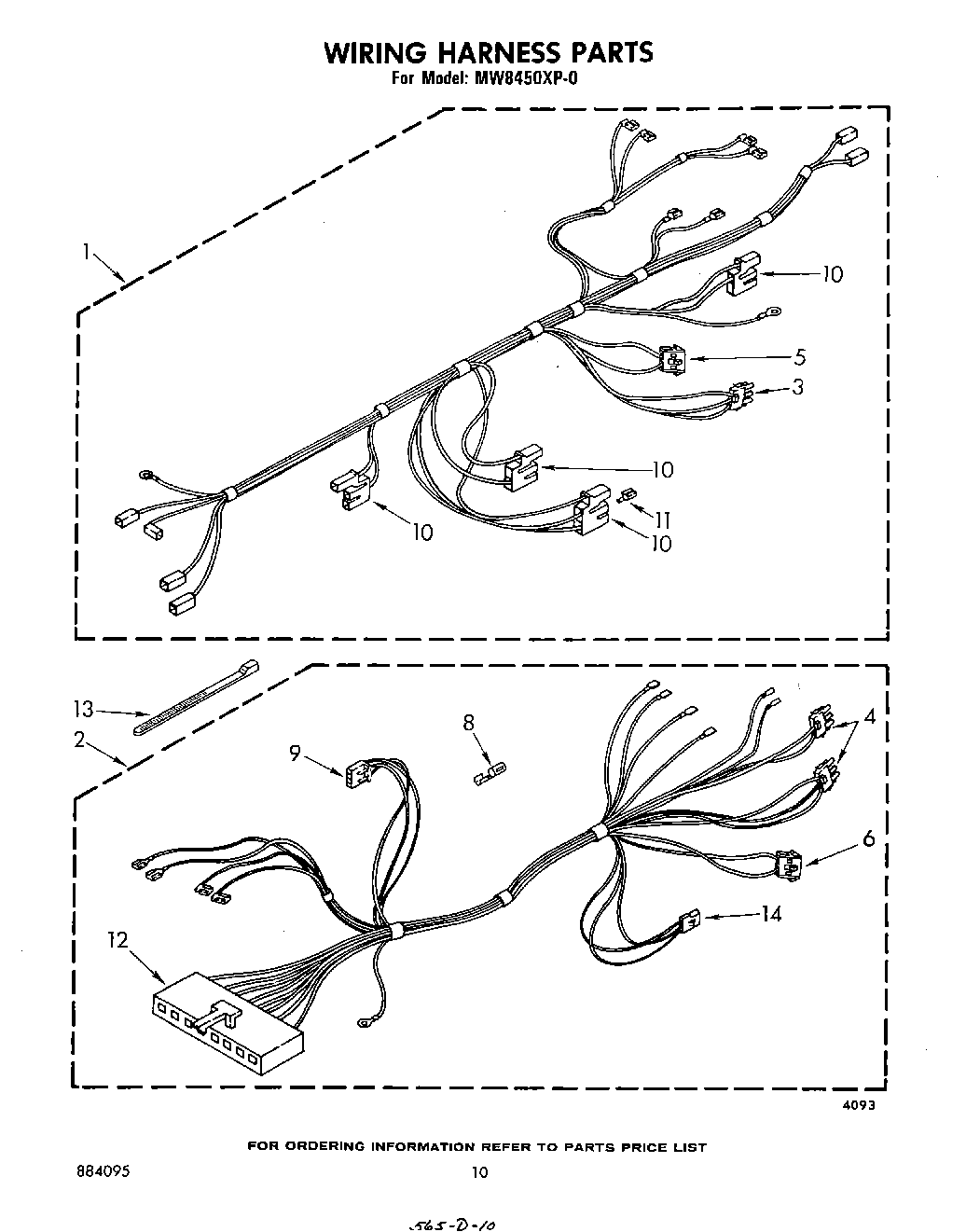

MW8450XP0 06 – WIRING HARNESS , LIT/OPTIONAL

Written by

Products

Position	Product
	Cookbook
	List, Repair Parts
	Guide, Use & Care
	Tech Sheet
1	Harness, Wiring Main
2	Harness, Wiring Control
3	Block, Disconnect (Motor) (Uses Terminal No.310222)
4	plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5	cap, terminal (uses 310222 or 310223 pin terminal)
6	Connector Housing
8	Harness, Wiring (Connector (6))
9	Block, Terminal
10	Housing, Plug
11	WP248562 Whirlpool Terminal
12	Connector Housing
13	WPW10339879 Whirlpool Wire Tie
14	Cord Brown
14	242831 Whirlpool Oven Wire
14	WPL 832769
14	RCK807 27“ Built-In Kit
14	RCK811 30“ Wall Mount Grille Kit
14	RCK805 25-3/4“ Built-In Kit
14	RCK803 30“ Built-In Kit
14	WPL 832763
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25“ Roll (White 14 GA.)
14	WP482338 Whirlpool Refrigerator Adhesive
14	WP261869 Whirlpool Microwave Paint
14	Wire (14 Ga. 150 c Blue)
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Yellow)
14	Wire (12 Ga. 150 c Black)
14	18 Ga. 80~c Rating (Red)
14	Wire (14 Ga. 200 c Brown)
14	1
14	WPL 591014
14	261900 Whirlpool Microwave Spray
14	Connector (Door Switch)
14	Paint, Cord Brown Spray (13 Oz.)
14	Wire, 25` Roll (Black 14 Ga.)
