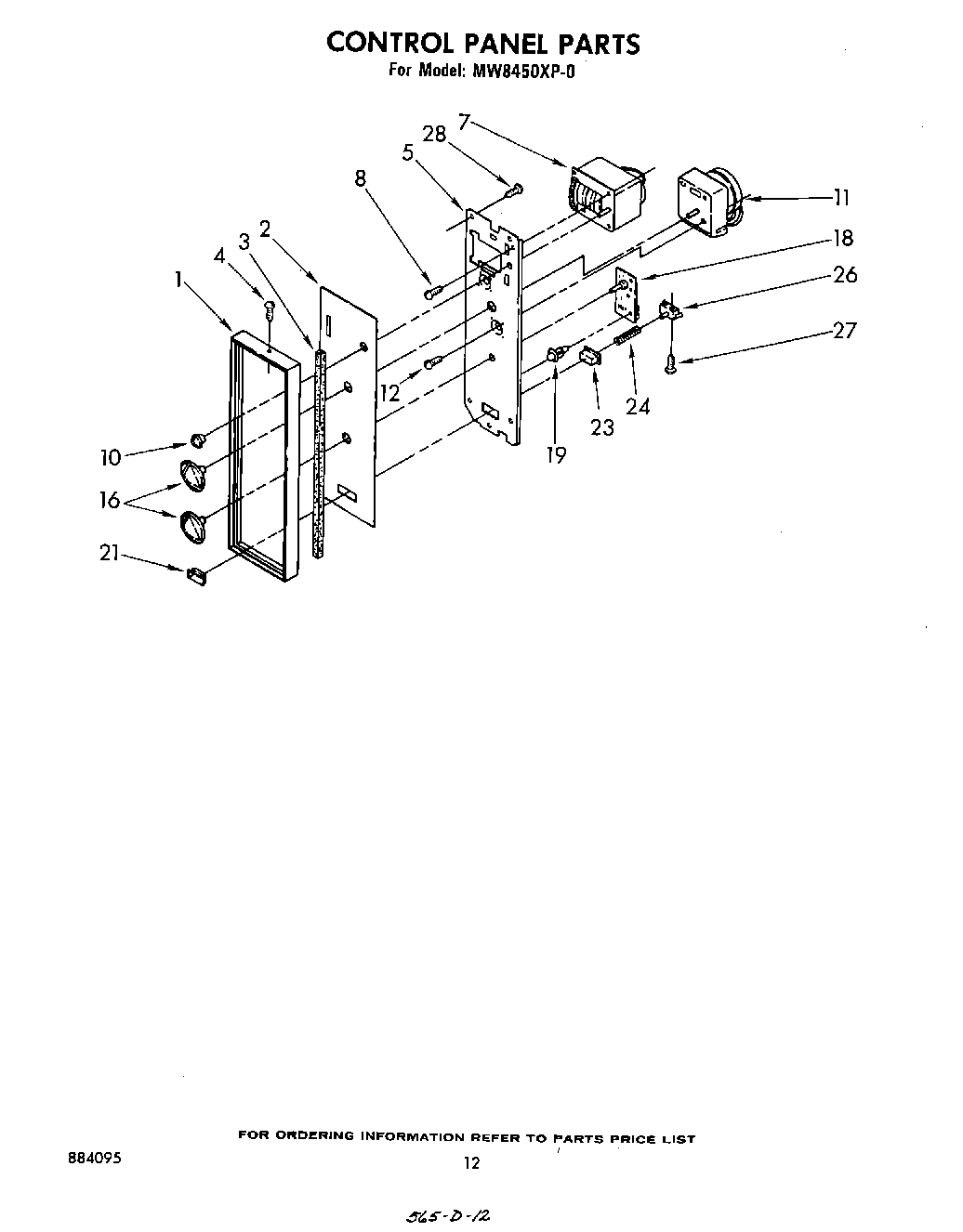

MW8450XP0 07 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Control Panel
3	Seal, Foam (2)
4	Screw, 8-18BT x .88 (2)
5	Bracket, Support
7	Timer, Digital
8	WP3390631 Whirlpool Screw
10	Knob, Digital
11	Variable Power Control
12	WP681249 Whirlpool Screw Assembly
16	Knob, Timer (3)
18	P.C. Board (Temp Control)
19	Support, Temperature Control (3)
21	Burner Box Bottom
23	Button, Start
24	Spring (2)
26	Switch, Push-To-Start
27	Screw
28	Screw 6-32 (6)
