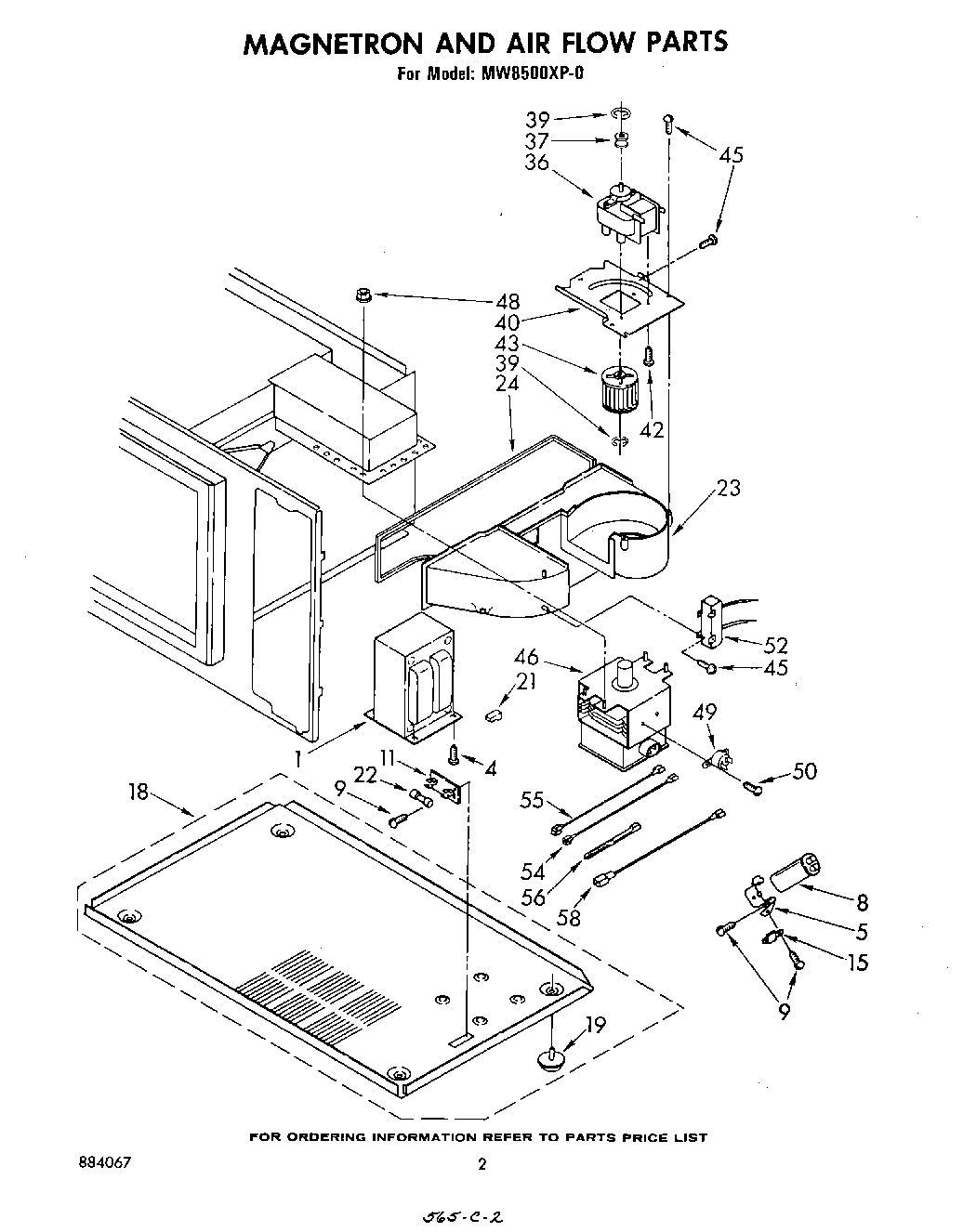

MW8500XP0 02 – MAGNETRON AND AIR FLOW

MW8500XP0 02 – MAGNETRON AND AIR FLOW

Written by

in

MW8500XP0 02 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
8Capacitor (Alt.)
9screw
11Block, Fuse
15Rectifier, High Voltage
18Base, Chassis (Includes Illus. No. 19)
19Foot, Base (4)
21Housing Receptacle
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
24SEAL
36Motor
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
45Screw, 11-16 x 1/2 Double Load Space Thread (5)
46Magnetron
48Flange Nut (4)
49Thermal Protector (Alt.)
50Screw, 6A x 3/8 (2)
52Reed Relay (Alt.)
52Reed Relay (Alt.)
54Jumper, High Voltage (Black 6-5/16“)
55Jumper, High Voltage Red (6-5/16“)
56WPW10339879 Whirlpool Wire Tie
58High Voltage Lead, Gray 6-3/4“ (2)
