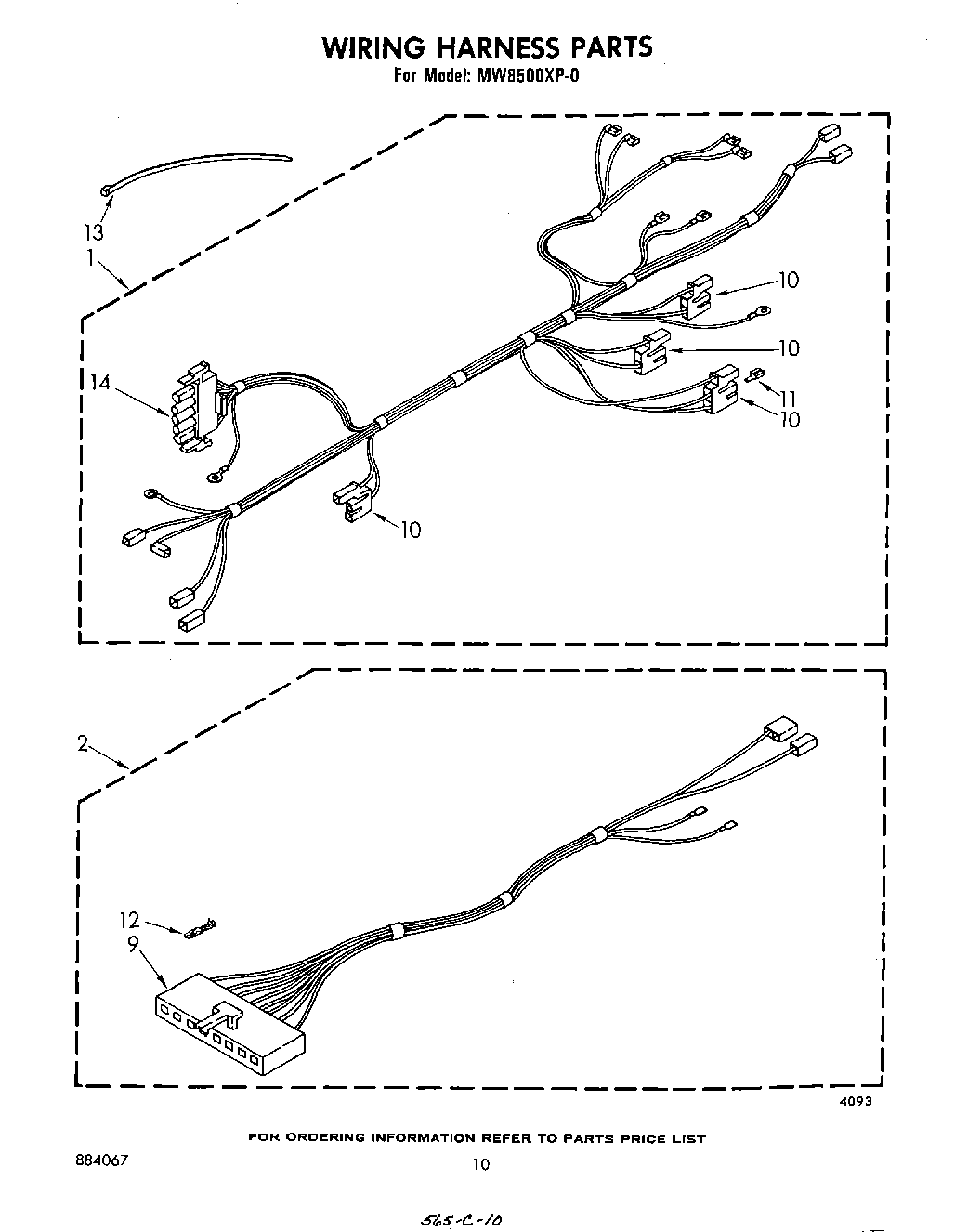

MW8500XP0 06 – WIRING HARNESS , LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Tech Sheet
	Cookbook
	Guide, Use & Care
1	Harness, Wiring Main
2	Harness, Wiring Control
9	Connector Housing
10	Housing, Plug
11	WP248562 Whirlpool Terminal
12	Harness, Wiring (Connector (10))
13	WPW10339879 Whirlpool Wire Tie
14	RCK811 30“ Wall Mount Grille Kit
14	WPL 311574
14	Cord Brown
14	WPL 832769
14	RCK807 27“ Built-In Kit
14	RCK803 30“ Built-In Kit
14	RCK805 25-3/4“ Built-In Kit
14	WPL 832763
14	Paint, Cord Brown Spray (13 Oz.)
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25“ Roll (White 14 GA.)
14	WP482338 Whirlpool Refrigerator Adhesive
14	242831 Whirlpool Oven Wire
14	WP261869 Whirlpool Microwave Paint
14	Wire (14 Ga. 150 c Blue)
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Yellow)
14	Wire (12 Ga. 150 c Black)
14	18 Ga. 80~c Rating (Red)
14	Wire (14 Ga. 200 c Brown)
14	1
14	WPL 591014
14	261900 Whirlpool Microwave Spray
14	Wire, 25` Roll (Black 14 Ga.)
