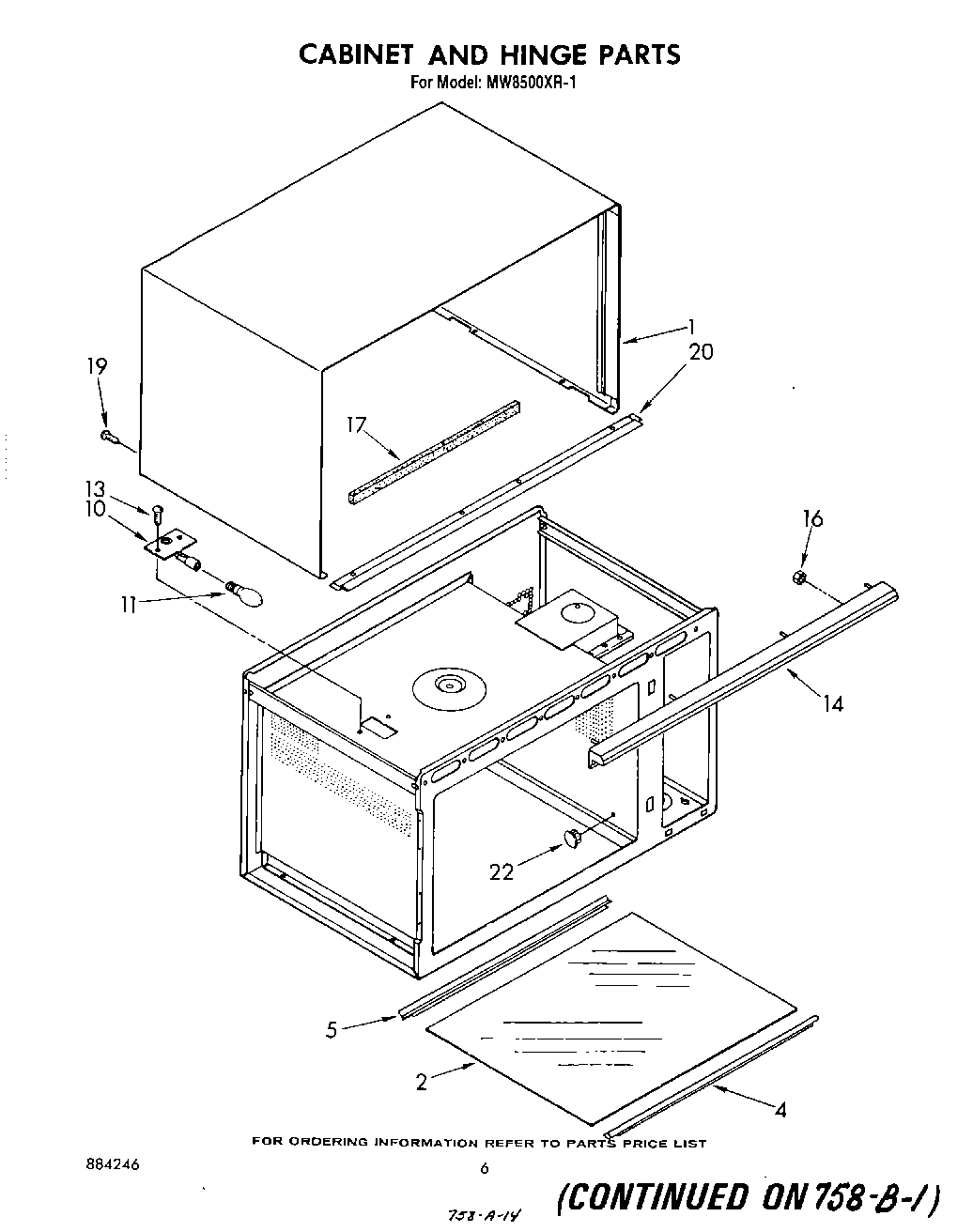

MW8500XR1 04 – CABINET AND HINGE

Products

Position	Product
1	Wrapper, Cabinet
2	Shelf, Microwave (Install with Silastic 482338)
4	Trim, Shelf (Front)
5	Trim, Shelf (Rear)
10	Snap-In Socket
11	WP3395618 Whirlpool Light Bulb
13	screw
14	Grille, Air
16	Nut (3)
17	Seal, Foam
19	WP488729 Whirlpool Refrigerator Door Screw
20	Trim, Lower
22	Plug, Hole (4)
