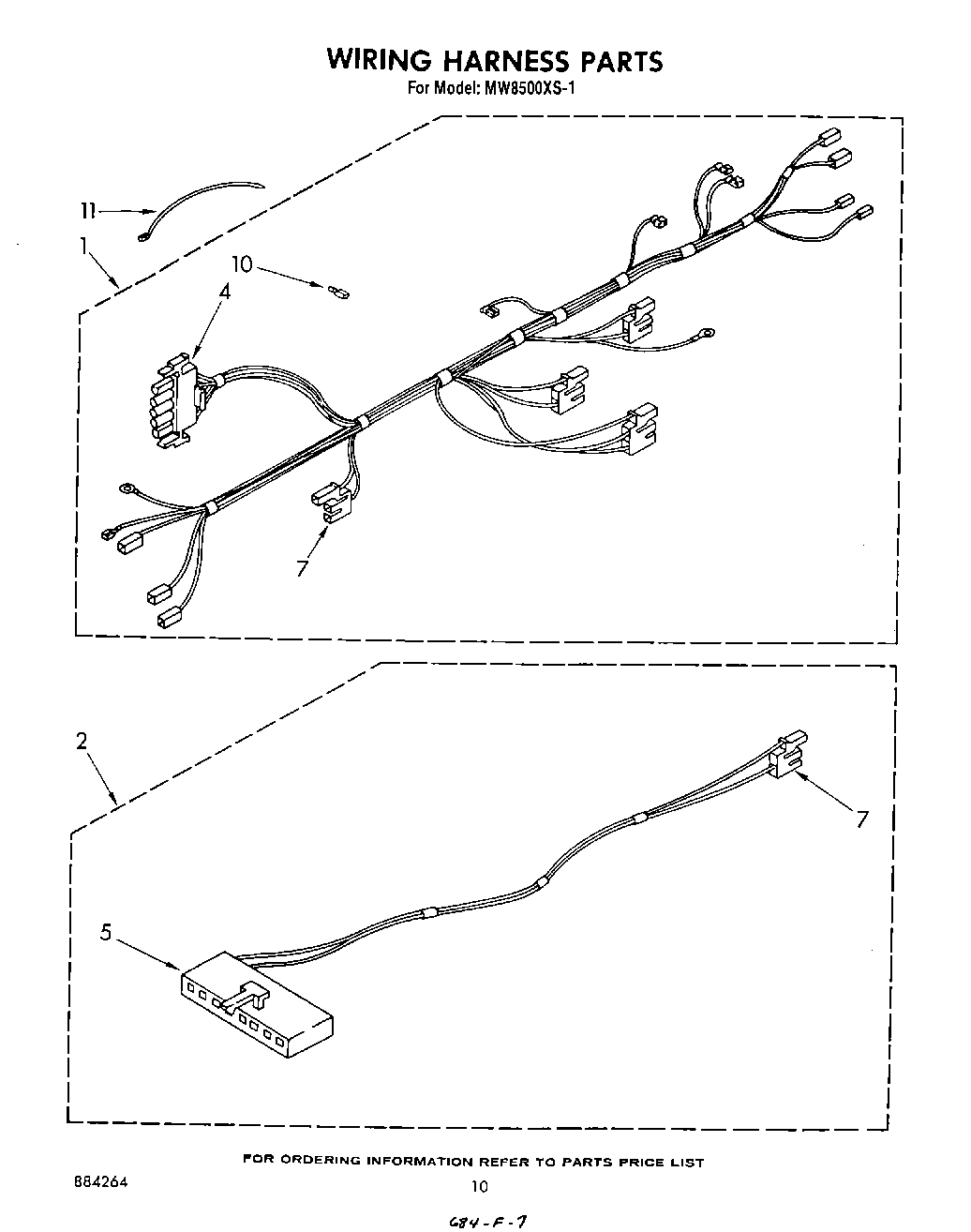

MW8500XS1 07 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

Position	Product
	List, Repair Parts
	Tech Sheet
	Guide, Use & Care
	Cookbook
1	Harness, Wire (Main)
2	Harness, Wiring (Control Panel)
4	Connector
5	Connector Housing
7	Housing, Plug
10	WP248562 Whirlpool Terminal
11	Paint, Cord Brown Spray (13 Oz.)
11	Cord Brown
11	Built-in Kits (30``)
11	24`` Built-In Kit
11	27``built-in Kit
11	Wall Mount Kit
11	261900 Whirlpool Microwave Spray
11	WPL 832985
11	WPL 591014
11	Wire, 25` Roll (Red 14 Ga.)
11	Wire, 25`` Roll (White 14 GA.)
11	WPW10339879 Whirlpool Wire Tie
11	WP482338 Whirlpool Refrigerator Adhesive
11	242831 Whirlpool Oven Wire
11	WP261869 Whirlpool Microwave Paint
11	Wire (14 Ga. 150 c Blue)
11	Wire (14 Ga. 150 c Brown)
11	Wire (14 Ga. 150 c Green)
11	Wire (14 Ga. 150 c Orange)
11	Wire (14 Ga. 150 c Yellow)
11	Wire (12 Ga. 150 c Black)
11	18 Ga. 80~c Rating (Red)
11	Wire (14 Ga. 200 c Brown)
11	1
11	Wire, 25` Roll (Black 14 Ga.)
