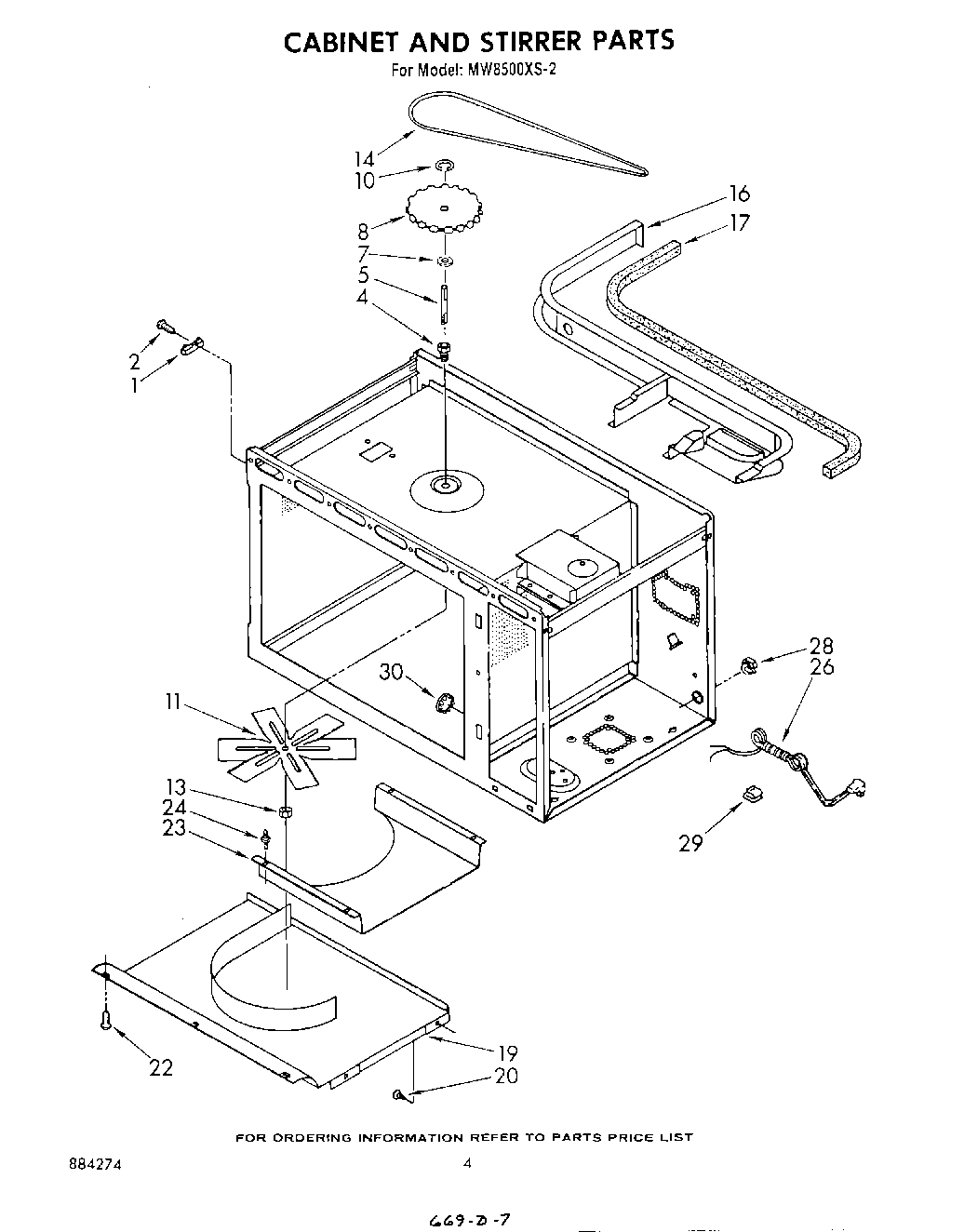

MW8500XS2 03 – CABINET AND STIRRER

Products

Position	Product
1	Fuse, Thermal
2	screw
4	Bushing, Stirrer
5	Shaft, Stirrer
7	Washer, Nylon
8	Pulley, Stirrer Blade
10	``E`` Ring
11	Stirrer Blade
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
16	Baffle, Air
17	Seal, Foam
19	Silicone Rubber Gasket
20	Fastener (4)
22	screw, 8-32 x 1/2 (3)
23	Plate, Tuning
24	Support (4)
26	Power, Cord
26	Power, Cord (Alt.)
26	Power, Cord (Alt.)
28	Strain Relief, Bushing
29	Clip
30	Plug, Hole
