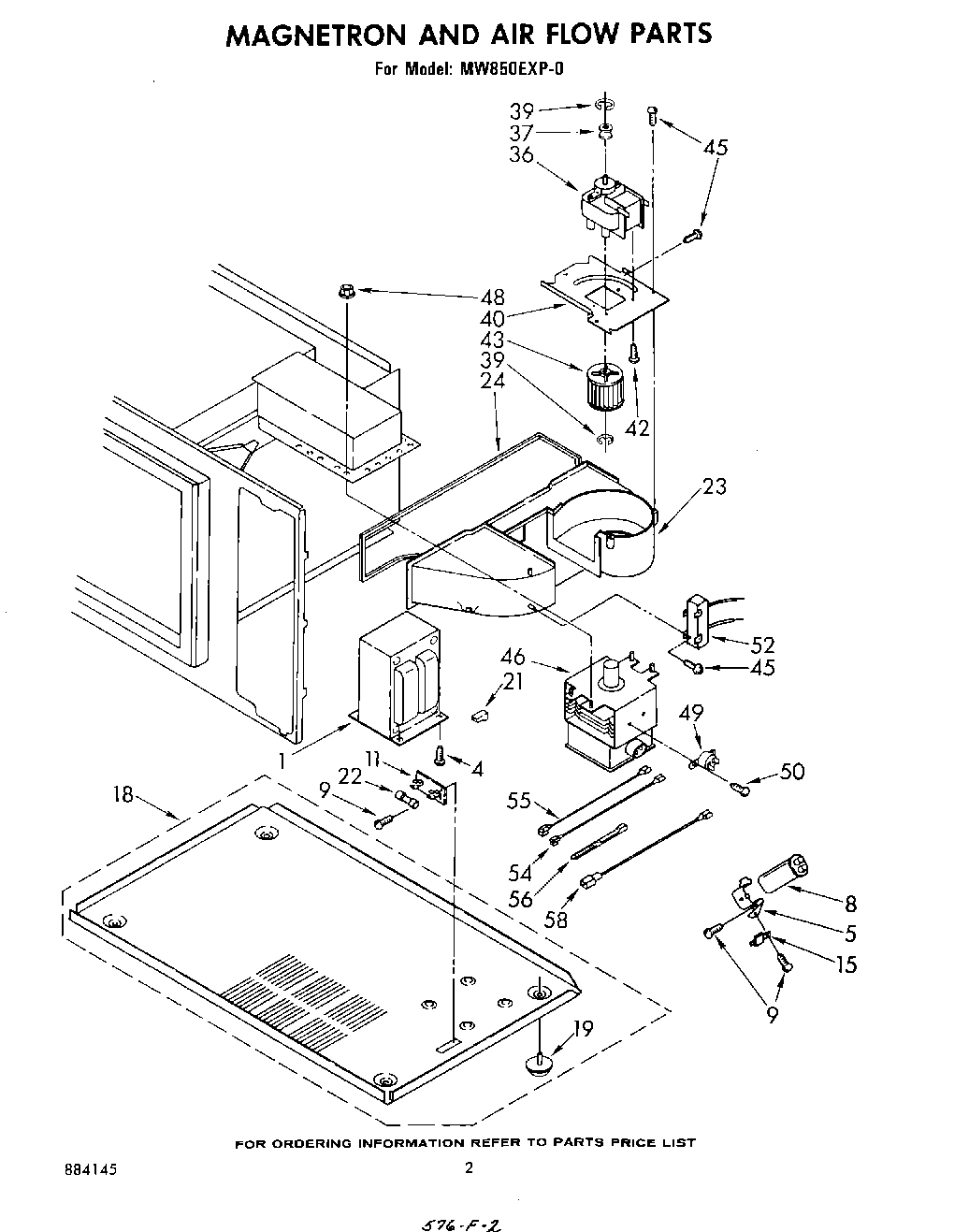

MW850EXP0 02 – MAGNETRON AND AIRFLOW

Products

Position	Product
1	Transformer (Alt.)
1	Transformer (Alt.)
1	Transformer
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
8	Capacitor
8	Capacitor (Alt.)
8	capacitor (alt.)
9	screw
11	Block, Fuse
15	Rectifier, High Voltage
18	Base, Chassis (Includes Illus. No. 19)
19	Foot, Base (4)
21	Housing Receptacle
22	WPW10017410 Whirlpool Fuse
23	Air Duct (Horizontal)
24	SEAL
36	Motor
36	Motor (Alt.)
36	Motor (Alt.)
37	Pulley, Motor
39	“E“ Ring
40	Bracket, Motor
42	WP486579 Whirlpool Air Conditioner Screw
43	Wheel, Blower
45	Screw, 11-16 x 1/2 Double Load Space Thread (5)
46	Magnetron (Alt.)
46	Magnetron (Alt.)
46	Magnetron (Alt.)
46	Magnetron (Alt.)
46	Magnetron (Alt.)
46	Magnetron
48	Flange Nut (4)
49	Thermal Protector
49	Thermal Protector (Alt.)
49	Thermal Protector (Alt.)
50	Screw, 6A x 3/8 (2)
52	Reed Relay
52	Reed Relay (Alt.)
52	Reed Relay (Alt.)
54	Jumper, High Voltage (Black 6-5/16“)
55	Jumper, High Voltage Red (6-5/16“)
56	WPW10339879 Whirlpool Wire Tie
58	High Voltage Lead, Gray 6-3/4“ (2)
