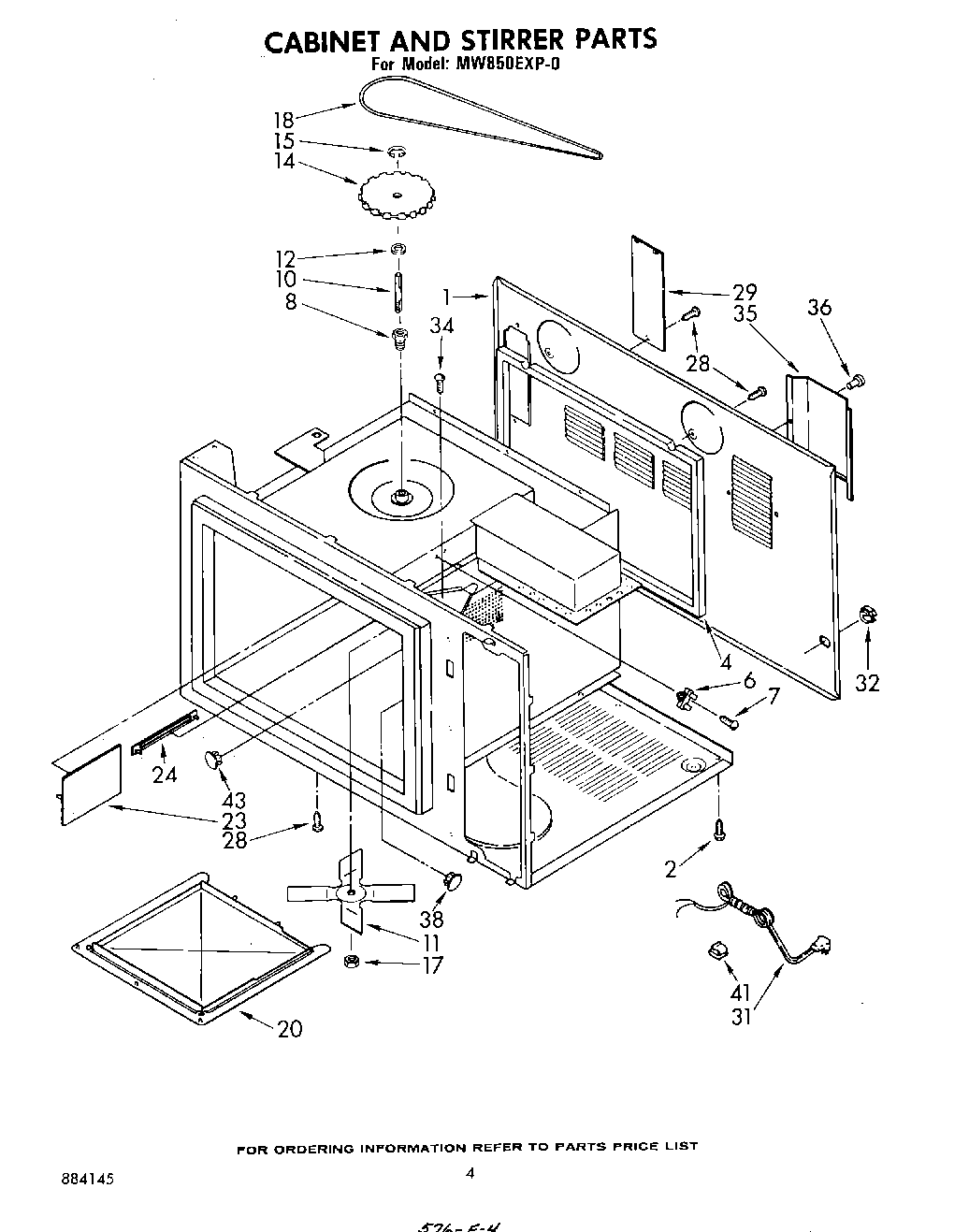

MW850EXP0 03 – CABINET AND STIRRER

Products

Position	Product
1	Back, Cabinet
2	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
4	Seal, Cavity Back
6	Thermal Fuse (Includes Illus.7)
7	screw
8	Bushing, Stirrer
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
14	Pulley, Stirrer Blade
15	``E`` Ring
17	WP487939 Whirlpool Refrigerator Nut
18	Belt, Drive
20	Stirrer Cover
23	Shield, Exhaust Probe
24	Cover, Rivet
28	WP308685 Whirlpool Microwave Screw
29	Cover, Lamp
31	Power Cord (Alt.)
31	Power Cord 313127 (Alt.) 313128 (Alt.)
31	Power Cord (Alt.)
32	Strain Relief, Bushing
34	Screw, 11-16 x 1/2 Double Load Space Thread (5)
35	Shield, Louver (Includes Illus. 36)
36	Rivet, Pop (3)
38	Plug, Hole
41	Clip
43	Hole Plug (4)
