MW850EXP0 07 – CONTROL PANEL

MW850EXP0 07 – CONTROL PANEL

Written by

in

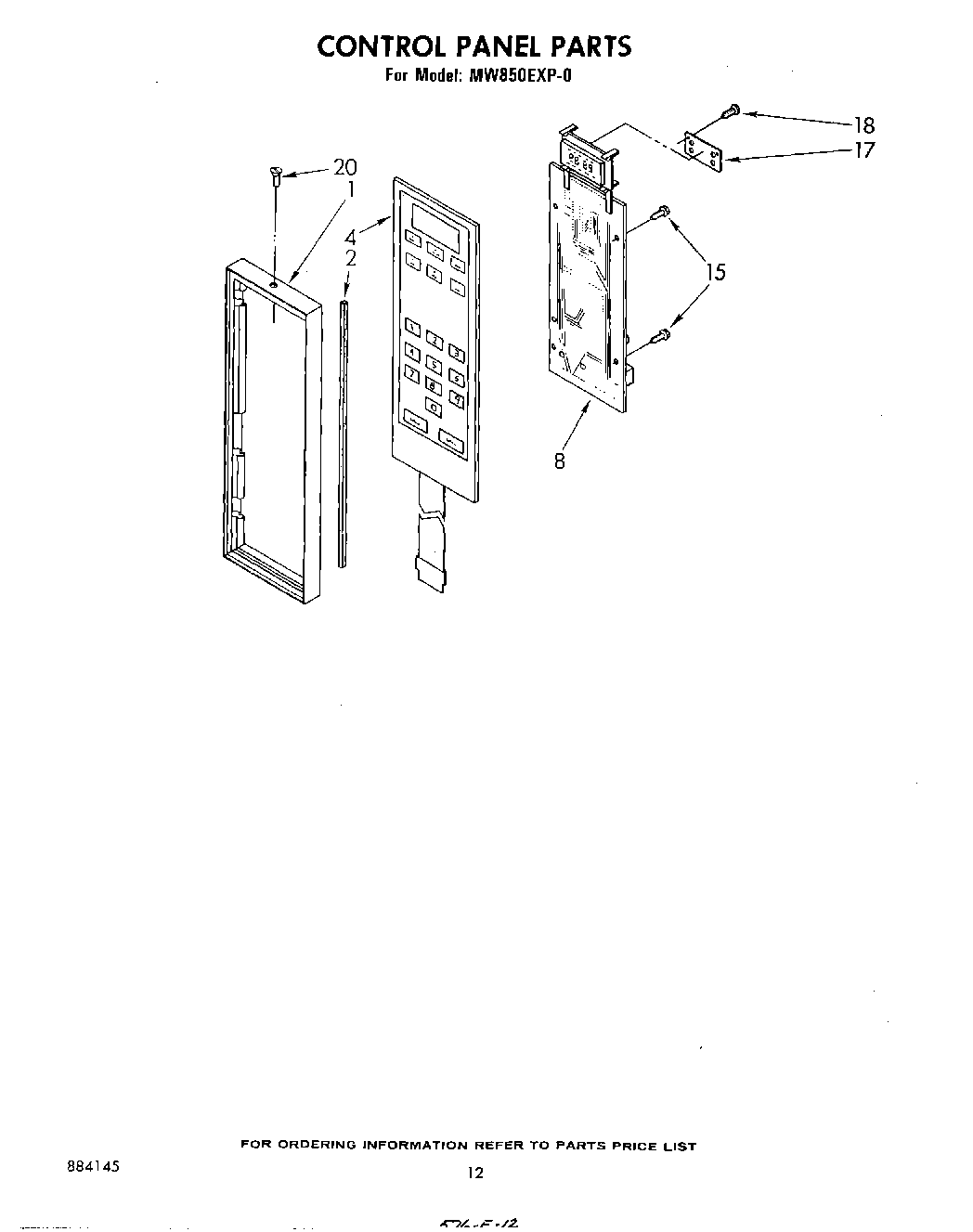

MW850EXP0 07 – CONTROL PANEL

Products

Position	Product
1	Screw, 8-32 x 1/2 (4)
1	Frame, Control Panel
2	Seal, Foam (2)
4	Switch, Membrane
8	Microcomputer
15	Screw 6-32 (6)
17	Shield, Display
18	Screw, 8-32 x 1/2 (3)
20	Screw, 8-18BT x .88 (2)
