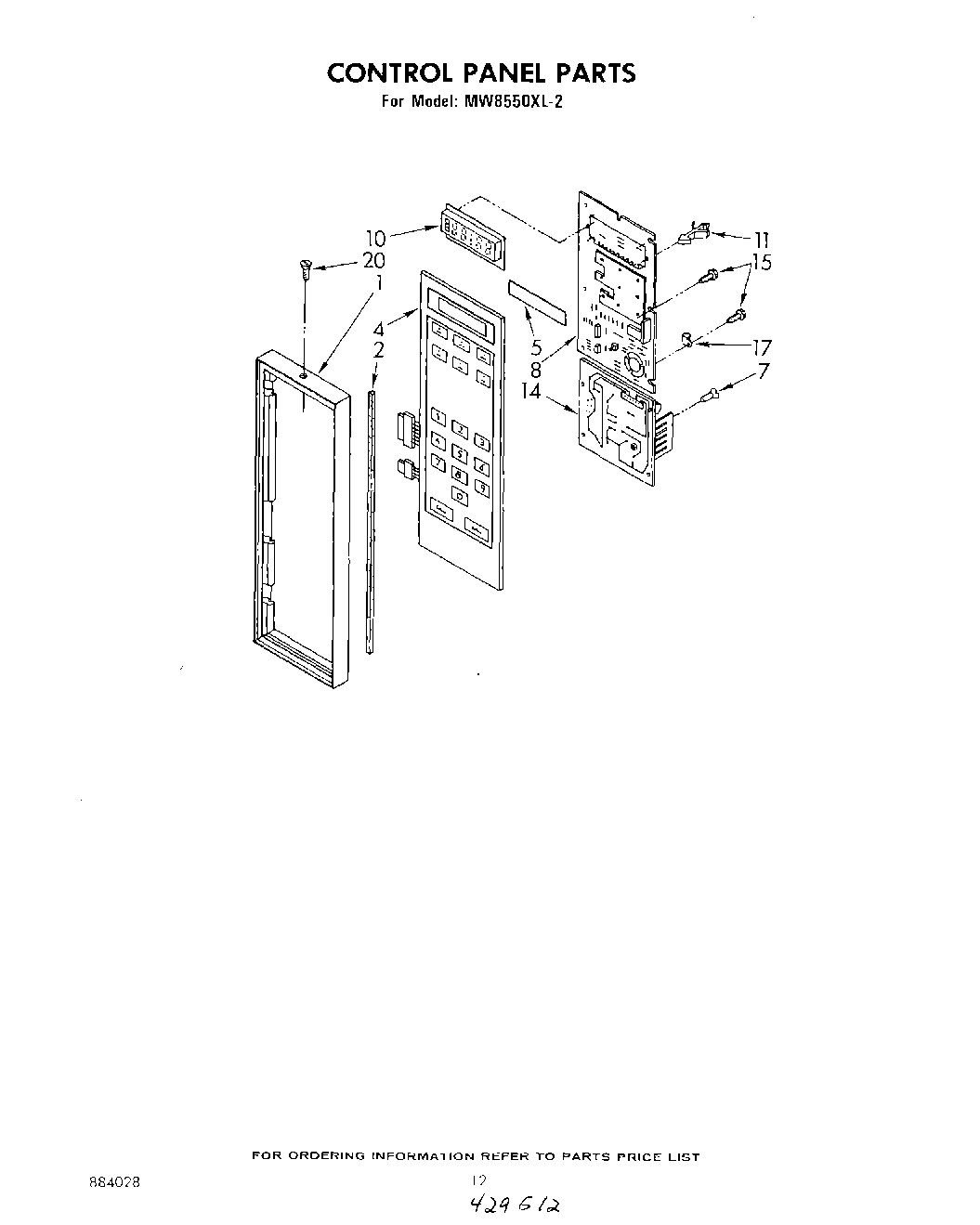

MW8550XL2 07 – CONTROL PANEL

Written by

Products

Position	Product
1	Frame, Control Panel
2	Seal, Foam (2)
4	Touch Panel, Glass
5	film, light diffusing (3)
7	Screw, 8-18BT x .88 (2)
8	Microcomputer (Includes Illus. 10 & 11)
10	Display, Clock (Yellow)
11	clip, clock to socket (2)
14	Power Supply
15	Screw
17	WP308605 Whirlpool Refrigerator Clamp
20	WP488627 Whirlpool Refrigerator Screw
