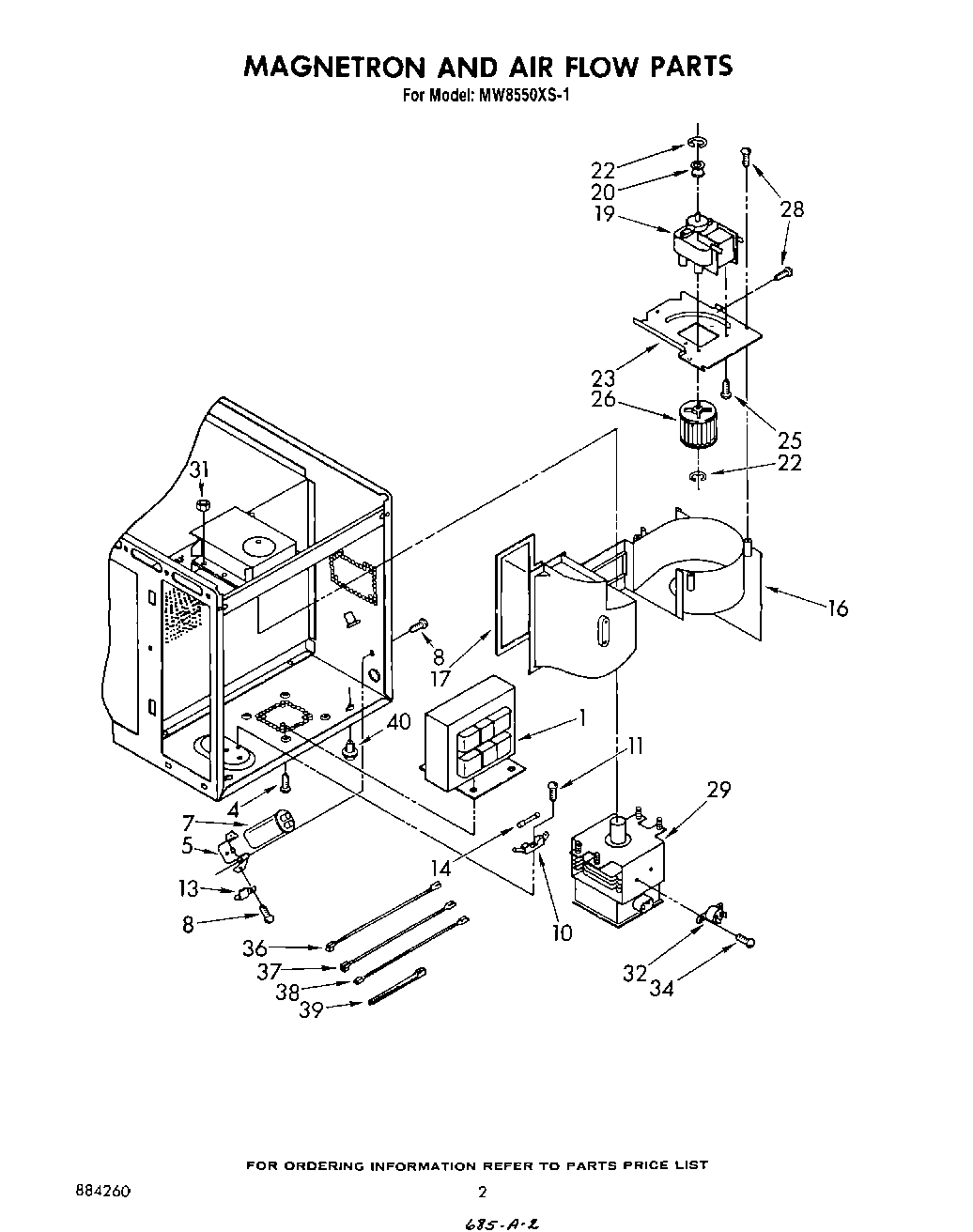

MW8550XS1 02 – MAGNETRON AND AIRFLOW

Products

Position	Product
1	Transformer
4	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5	Bracket, Capacitor
7	Capacitor
7	capacitor (alt.)
8	screw
10	Fuse Holder
11	Screw
13	Rectifier, High Voltage
13	rectifier, high voltage (alt.)
14	Fuse (15 Amp)
14	Fuse (15 Amp) (Alt.)
16	Air Duct (Horizontal)
17	Seal, Air Duct
19	Transmotor
20	Pulley, Motor
22	``E`` Ring
23	Bracket, Motor
25	WP486579 Whirlpool Air Conditioner Screw
26	Wheel, Blower
28	Screw, 11-16 x 1/2 Double Load Space Thread (5)
29	Magnetron (Alt.)
29	Magnetron (Alt.)
29	Magnetron
29	Magnetron (Alt.)
31	Flange Nut (4)
32	Thermal Protector
32	Thermal Protector (Alt.)
34	Screw, 6A x 3/8 (2)
36	Jumper, High Voltage Black 6-5/16``
37	Jumper, High Voltage Gray 8-11/16``
38	Jumper, High Voltage Red (6-5/16``)
39	WPW10339879 Whirlpool Wire Tie
40	Foot, Base (4)
