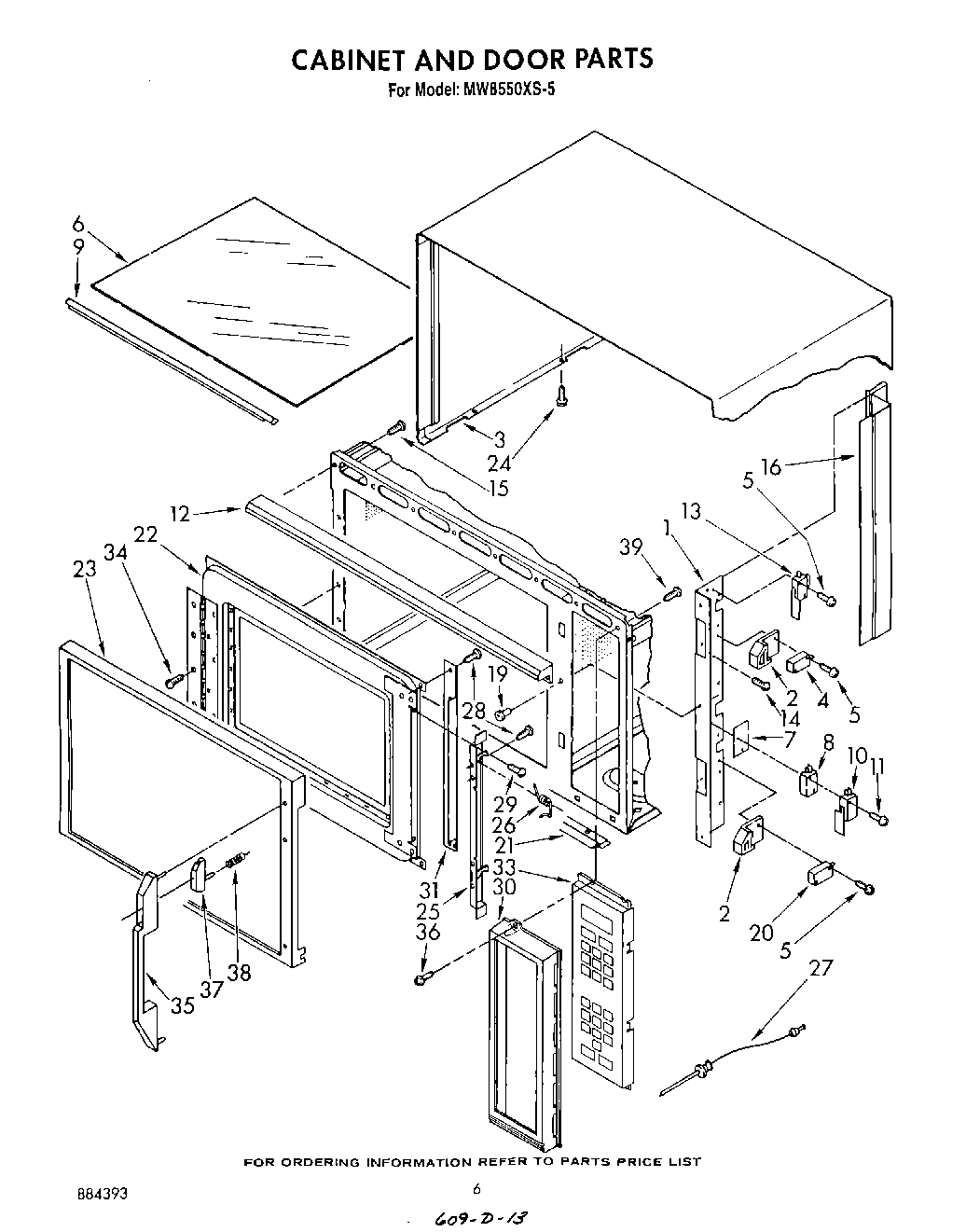

MW8550XS5 04 – SECTION

Products

Position	Product
1	Bracket, Catch
2	Catch (2)
3	Wrapper, Cabinet
5	WPL 312717
6	Shelf, Microwave (Install with Silastic 482338)
6	WP482338 Whirlpool Refrigerator Adhesive
7	Insulator
8	Switch
9	Trim, Shelf (Rear)
9	Trim, Shelf (Front)
10	Switch, Light/ Monitor
11	Screw, 4-40 x 10 (2)
12	Grille, Air
13	Switch, Miniature
14	WPL 309080
15	Screw, 6-20 x 1/2 (3)
16	shield
19	Rivet, Pop (3)
20	814037 Whirlpool Microwave Switch
21	Trim, Lower
22	Door, Inner
23	Frame, Door
24	WP488729 Whirlpool Refrigerator Door Screw
25	Latch Assembly
26	Spring, Torsion (2)
27	(Alt.)
28	303776 Whirlpool Dishwasher Screw
29	Screw (2)
30	Frame, Control Panel
31	End Cap
32	Screw, 8-22 (5)
33	Module, Control
34	WPW10068250 Whirlpool Dishwasher Screw
35	Handle, Door
36	Screw
37	313611 Whirlpool Microwave Door Button
38	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
38	Harness, Wiring (Control Panel)
