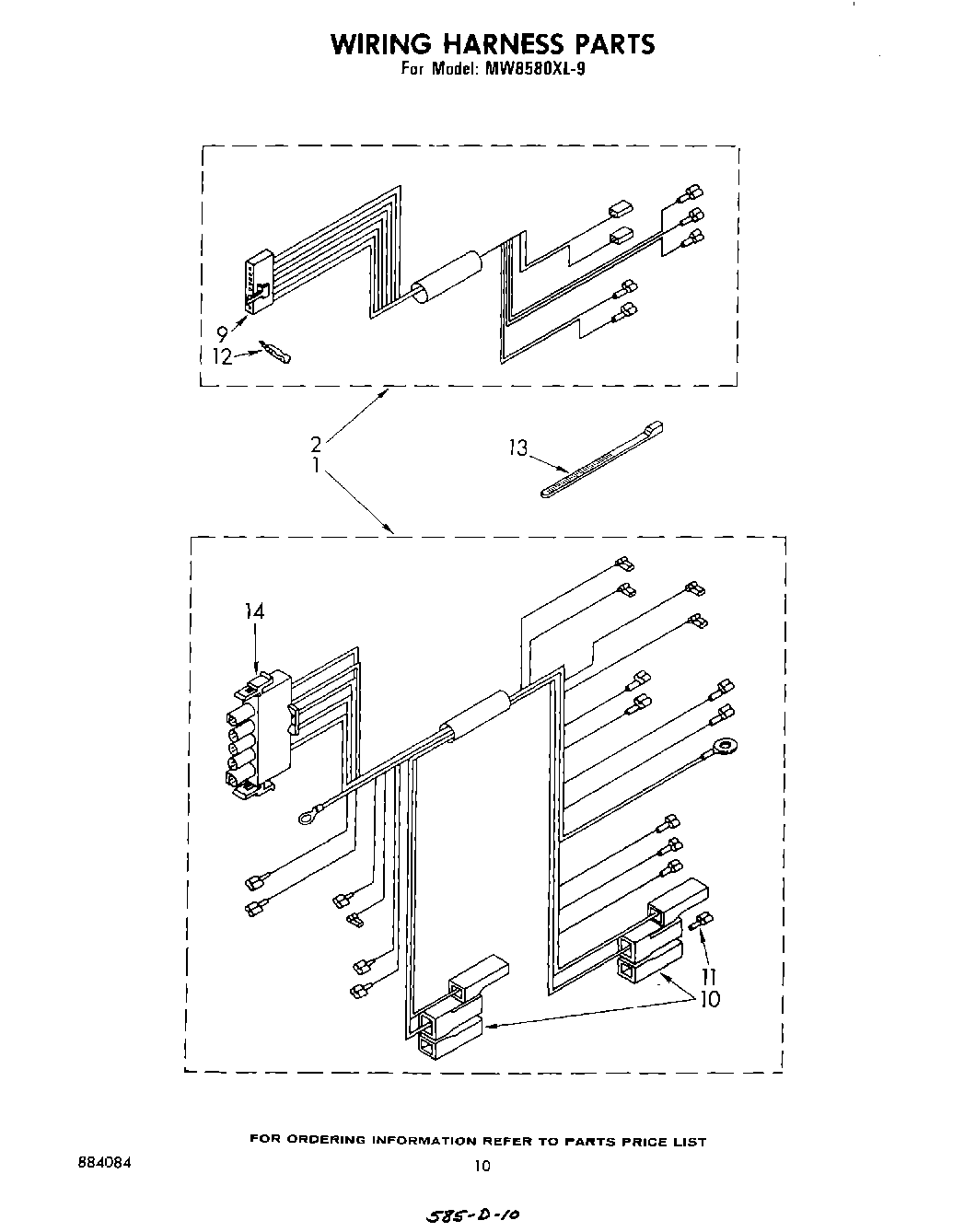

MW8580XL9 06 – WIRING HARNESS , LIT/OPTIONAL

Products

Position	Product
1	Harness, Wiring Main
2	Control Panel
9	Connector Housing
10	Housing, Plug
11	WP248562 Whirlpool Terminal
12	Harness, Wiring (Connector (10))
13	WPW10339879 Whirlpool Wire Tie
14	Cord Brown
14	WPL 311574
14	WPL 832769
14	Tech Sheet
14	Cookbook
14	Guide, Use & Care
14	Instructions, Installation
14	List, Repair Parts
14	RCK803 30“ Built-In Kit
14	RCK805 25-3/4“ Built-In Kit
14	Storage Cabinet
14	RCK811 30“ Wall Mount Grille Kit
14	Wire, 25` Roll (Black 14 Ga.)
14	WPL 832763
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25“ Roll (White 14 GA.)
14	WP482338 Whirlpool Refrigerator Adhesive
14	242831 Whirlpool Oven Wire
14	WP261869 Whirlpool Microwave Paint
14	Wire (14 Ga. 150 c Blue)
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Green)
14	Wire (14 Ga. 150 c Orange)
14	Wire (14 Ga. 150 c Yellow)
14	Wire (12 Ga. 150 c Black)
14	18 Ga. 80~c Rating (Red)
14	Wire (14 Ga. 200 c Brown)
14	1
14	WPL 591014
14	261900 Whirlpool Microwave Spray
14	Paint, Cord Brown Spray (13 Oz.)
14	RCK807 27“ Built-In Kit
