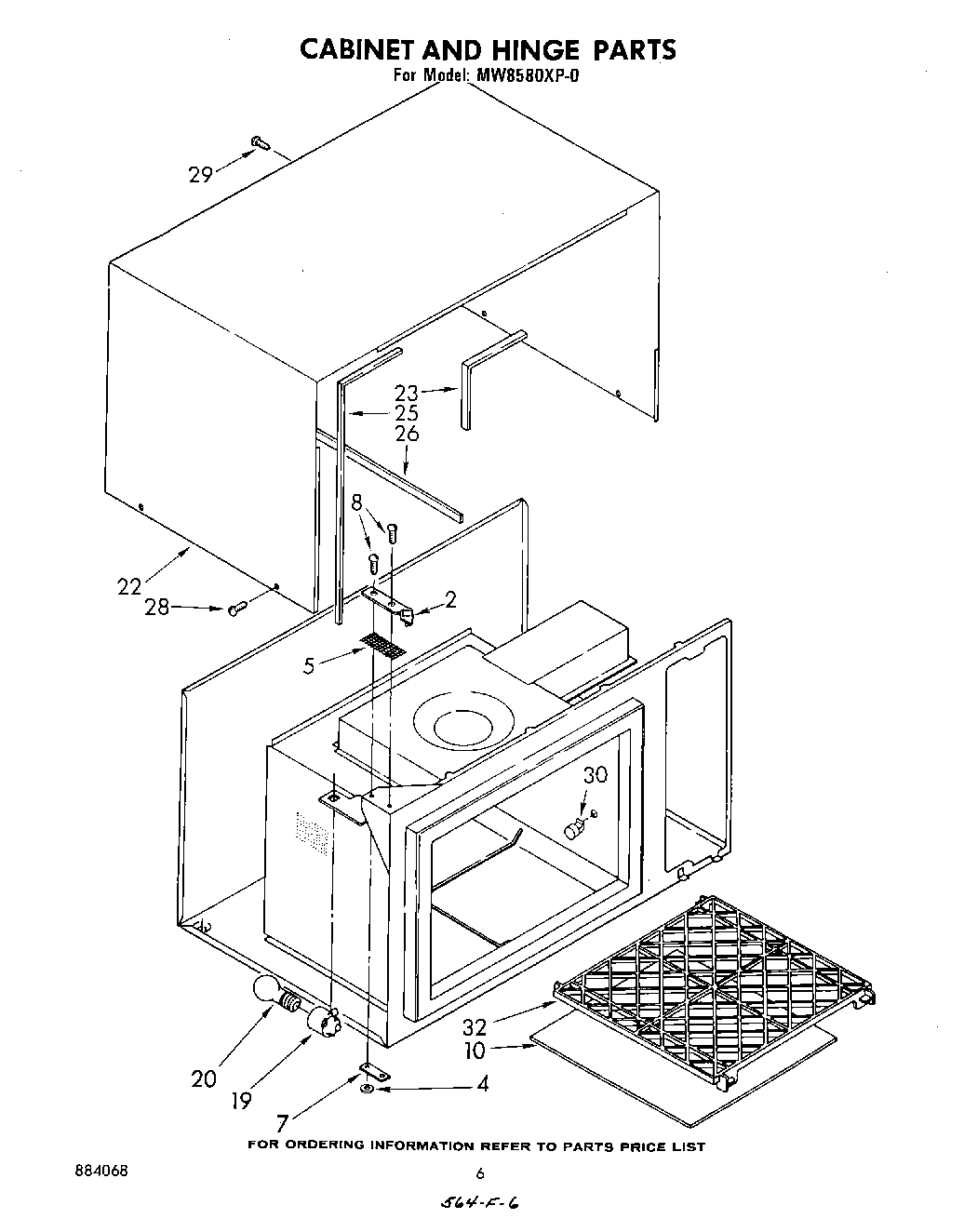

MW8580XP0 04 – CABINET AND HINGE
Written by
in
MW8580XP0 04 – CABINET AND HINGE
Products
Position
Product
2
Hinge Assembly (Bottom)
2
Hinge Assembly (Top)
4
WPL 312147
5
Hinge, Shim Locking (2)
7
Plate, Nut (2)
8
Screw, 12-24 x 3/4 (4)
10
Shelf, Microwave
19
Socket, Snap-In
20
RANGE ONLY 40W 120V APPL BULB
22
Wrapper, Cabinet (Includes Illus. 23, 25 & 26)
23
Pilot Cup (3 Req)
25
WPL 308294
26
WPL 308295
28
Screw, 10A x 1/2 (2) (Black)
29
Main Chassis (Screw, 10-32 x 1/2)
30
Support, Shelf (4)
32
rack, oven
←
