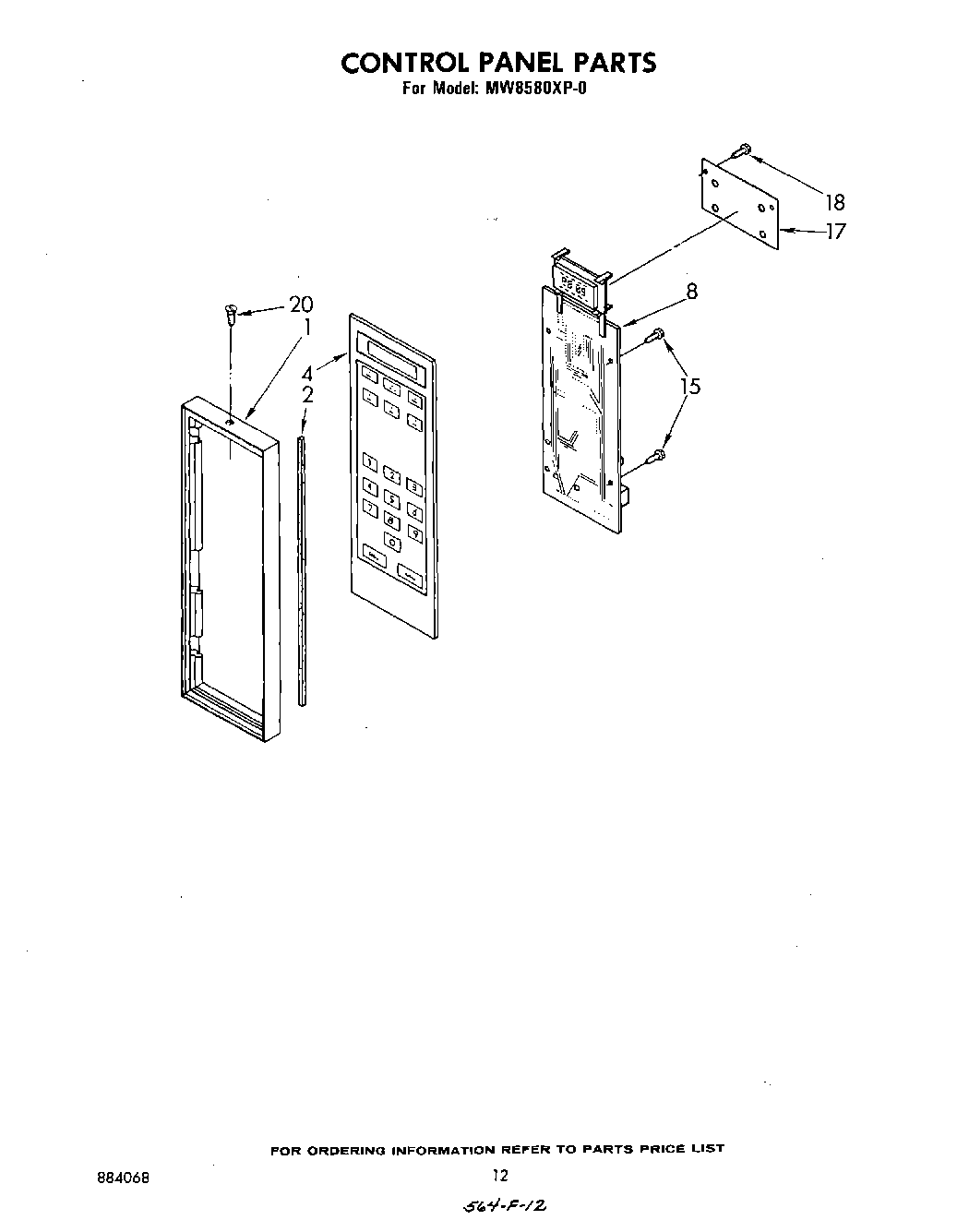

MW8580XP0 07 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | Frame, Control Panel |
| 2 | Seal, Foam (2) |
| 4 | Switch, Membrane |
| 8 | Microcomputer |
| 15 | Screw |
| 17 | Shield, Display |
| 18 | Screw |
| 20 | Screw, 8-18BT x .88 (2) |
MW8580XP0 07 – CONTROL PANEL
| Position | Product |
|---|---|
| 1 | Frame, Control Panel |
| 2 | Seal, Foam (2) |
| 4 | Switch, Membrane |
| 8 | Microcomputer |
| 15 | Screw |
| 17 | Shield, Display |
| 18 | Screw |
| 20 | Screw, 8-18BT x .88 (2) |
